FUJI H01 H02 Claw (Clamp) PH00274 SMT Machine Spare Parts

FUJIPH00274 H01 H02 claw(Clamp)

Our company has been in operation for 11 years and will definitely be your best choice with guaranteed quality and fast delivery


Product Introduction

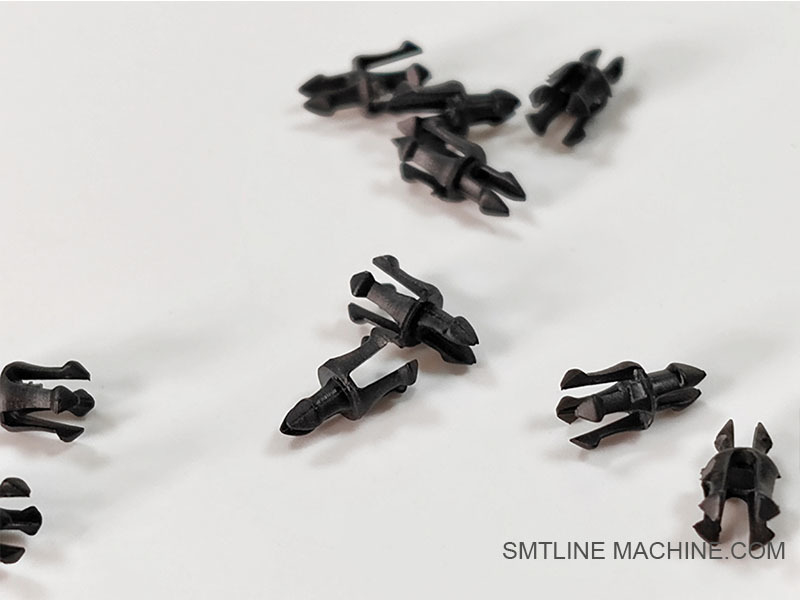

FUJI PH00274 – H01/H02 Claw (Clamp)

Overview

The FUJI PH00274 is a precision claw clamp component used in the H01 and H02 working heads of FUJI NXT series SMT machines. This claw, often referred to as a nozzle clamp or retention clip, plays a key role in securely holding the nozzle in place during high-speed pick-and-place operations.

It enables quick nozzle changes while ensuring reliable fixation during component pickup, transfer, and placement.

Key Features

Designed for H01 / H02 Heads
Specifically engineered for FUJI’s high-speed placement heads to handle fine-pitch components.

Quick-Release Mechanism
Allows for fast nozzle mounting or detachment without compromising stability.

High Wear Resistance
Made from durable, spring-grade steel or alloy for long life and repeatability.

Stable Nozzle Retention Under Vacuum
Maintains firm nozzle grip even under continuous vacuum cycles and rapid Z-axis movement.

Technical Specifications

Applications

FUJI NXT H01 and H02 heads
Used in nozzle holders to grip or release nozzles during operation or auto-change
Essential for stable, high-precision SMT placement in high-speed lines

Related Components

Related Accessories for FUJI PH00274 – H01/H02 Claw (Clamp)

These accessories are critical to the nozzle clamping system, ensuring the PH00274 claw functions reliably during high-speed nozzle change and placement cycles in FUJI NXT machines.

Related Part Numbers for FUJI PH00274 – H01/H02 Claw (Clamp)

Note: Some part numbers marked with (example) may vary depending on the production year, version (NXT II/III), or head revision. Always verify with FUJI or your authorized distributor.

Let me know if you'd like this data:

In Excel format (BOM)
Along with an exploded diagram showing part positions
Or translated into Chinese for bilingual documentation

FAQ Guide — FUJI PH00274 H01/H02 Claw (Clamp)

1. What is FUJI PH00274?

Answer:
The PH00274 is a mechanical claw or clamp component designed for use in the H01 and H02 working heads of FUJI NXT series SMT machines. It securely holds the nozzle in place during high-speed component placement operations.

2. What is the function of the clamp in the H01/H02 head?

Answer:
The clamp ensures that the nozzle is firmly fixed within the nozzle holder, even during high-speed movement, Z-axis strokes, and vacuum cycles. It also allows for quick and secure nozzle changes, essential in automated production lines.

3. Which FUJI heads use the PH00274 clamp?

Answer:
The clamp is used in:

H01 Working Head (e.g., Part No. 2AGTHA004000)
H02 Working Head (e.g., Part No. 2AGTHA005000)

These heads are installed on FUJI NXT II, NXT III, and AIMEX platforms.

4. What are the signs of clamp malfunction or wear?

Answer:

Nozzle falls off or becomes loose during placement
Nozzle exchange errors or frequent misalignment
Abnormal movement or skipping during pick/place operations
Inconsistent suction due to poor nozzle seating

5. Can the PH00274 clamp be replaced individually?

Answer:
Yes. It can be replaced independently of the full holder or head. After replacement, ensure proper positioning and test nozzle retention strength to prevent operational issues.

6. How often should the clamp be inspected or maintained?

Answer:

Every 1–2 months during routine maintenance
Immediately if nozzle errors occur
Check for wear, spring fatigue, or debris affecting motion.

7. Is lubrication needed for the clamp?

Answer:
Generally, no direct lubrication is applied to the clamp itself. However, ensure the surrounding mechanism (actuator, springs) is clean and lightly lubricated where specified in FUJI maintenance guidelines.

8. What other parts work closely with the PH00274 clamp?

9. Can the PH00274 be reused after removal?

Answer:
If the clamp is not bent, worn, or fatigued, it can be reused. However, due to its precision and spring action, it is recommended to replace during major overhauls or after high usage cycles.

10. Where can I purchase the PH00274 clamp?

Answer:
Available from:

FUJI SMT authorized distributors
Reliable SMT parts suppliers (ensure OEM or certified quality)

Avoid low-cost non-OEM parts to prevent nozzle retention or safety issues.
