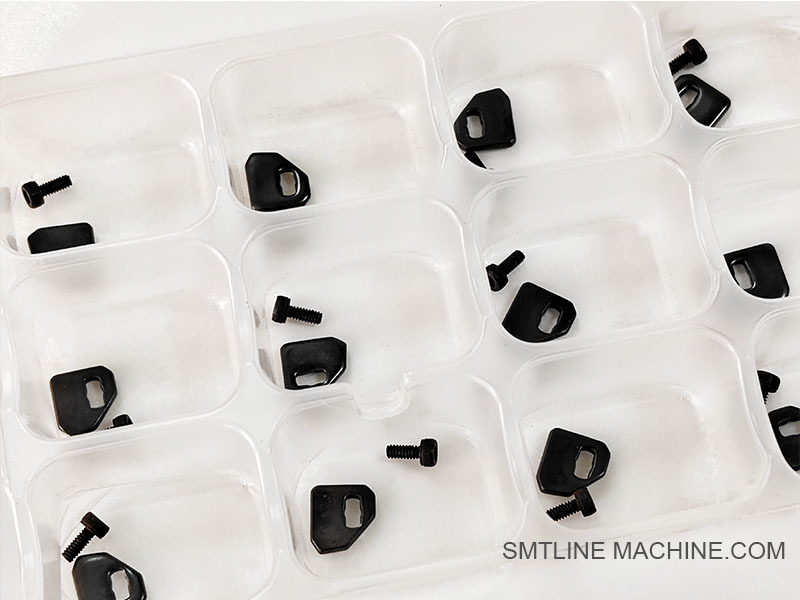

FUJI PM0BXE2 – V12 Working Head Mechanical Valve Paddle

Overview

The FUJI PM0BXE2 is a mechanical valve paddle specifically designed for the V12 working head used in FUJI NXT series SMT (Surface Mount Technology) machines. This component plays a critical role in controlling the mechanical airflow and vacuum switching within the V12 head’s nozzle system.

By facilitating the rapid actuation of air valves, the PM0BXE2 ensures precise and reliable component pick-up and placement operations during high-speed SMT production.

Key Features

Precision Mechanical Actuation
Accurately regulates air/vacuum flow by engaging or disengaging internal pneumatic valves.

Designed for V12 Head Architecture
Fully compatible with the V12 head’s high-speed, multi-nozzle structure used in FUJI NXT II, NXT III, and AIMEX platforms.

Durable Construction
Built from wear-resistant, lightweight materials to withstand continuous high-speed cycling.

Direct Interface with Valve Assembly
Transfers mechanical movement from internal actuators to open or close the airflow paths inside the head.

Technical Specifications

Applications

Used in FUJI V12 heads on NXT II / NXT III / AIMEX machines
Assists in nozzle vacuum switching, pickup/release control, and air purge functions
Critical to maintaining placement speed, accuracy, and reliability in high-volume SMT environments

Related Components

Related Accessories for FUJI PM0BXE2 – V12 Mechanical Valve Paddle

These accessories are essential for the mechanical airflow control system inside the V12 working head, where the PM0BXE2 valve paddle performs precise switching between vacuum and air-blow states.

Related Part Numbers for FUJI PM0BXE2 – V12 Mechanical Valve Paddle

|

Note: Items marked with (example) should be confirmed for exact model/version compatibility depending on your machine configuration (e.g., NXT II, NXT III, AIMEX III).

FAQ Guide — FUJI PM0BXE2 V12 Working Head Mechanical Valve Paddle

1. What is the FUJI PM0BXE2?

Answer:
The PM0BXE2 is a mechanical valve paddle used in the V12 working head of FUJI NXT series machines. It mechanically actuates internal air or vacuum valves, enabling suction control for pick-and-place operations on each nozzle unit.

2. What is the function of the valve paddle in the V12 head?

Answer:
The valve paddle controls the switching of vacuum and air-blow channels inside the head. It receives mechanical input from a cam or actuator and toggles airflow to enable:

Component pickup (vacuum ON)
Part placement (vacuum OFF / air blow)
Nozzle purge operations

3. Which machines use the PM0BXE2 paddle?

Answer:
The PM0BXE2 is used in the V12 working head, which is compatible with:

FUJI NXT II
FUJI NXT III
FUJI AIMEX II / AIMEX III (using V12 head)

4. What are common signs of valve paddle failure?

Answer:

Nozzle fails to pick or release parts properly
Air blow or vacuum functions intermittently
Unusual clicking or mechanical noise inside the head
Placement head error codes related to airflow issues

5. Can the PM0BXE2 be replaced independently?

Answer:
Yes, the valve paddle can be replaced as a standalone mechanical part, but it requires:

Removal of the head cover and internal valve assembly
Correct alignment with the actuator mechanism
Reassembly and functional testing of suction/blow cycles

6. What material is the PM0BXE2 made of?

Answer:
Typically manufactured from high-strength plastic or lightweight alloy, designed to endure millions of high-speed mechanical actuations without deformation or wear.

7. How often should the paddle be checked or serviced?

Answer:
Inspection is recommended:

Monthly as part of preventive maintenance
Immediately if suction/blow issues occur
Look for signs of wear, breakage, or poor valve switching response.

8. Is lubrication required?

Answer:
No direct lubrication is required on the paddle itself. However, ensure valve cams and moving linkages are properly lubricated to maintain smooth motion.

9. What other components work with the PM0BXE2?

10. Where can I buy the PM0BXE2?

Answer:
It is available from:

FUJI SMT authorized distributors
Certified SMT spare parts suppliers
Ensure the source provides genuine OEM components to maintain equipment performance.
