Product Introduction

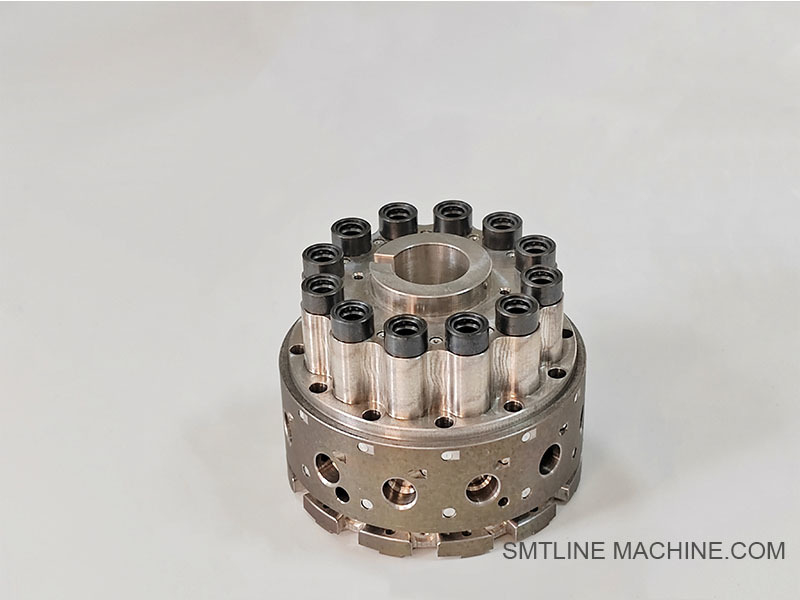

FUJI PM0FMB9 – V12 Working Head Body (Honeycomb Body)

Overview

The FUJI PM0FMB9 is the main structural body of the V12 working head used in FUJI NXT series surface mount technology (SMT) machines. Commonly referred to as the “Honeycomb Body”, this core component forms the mechanical base for installing various modules such as nozzles, sensors, motors, and actuators.

It ensures mechanical integrity, precise positioning, and vibration resistance during high-speed, high-precision pick-and-place operations.

Key Features

Honeycomb Structural Design
Reinforced lightweight design improves stiffness and reduces vibration, enhancing placement accuracy.

Precision Machined Aluminum Alloy
Manufactured using high-grade materials for long-term durability and thermal stability.

Modular Mounting Platform
Provides integrated slots and fixture points for:

Nozzle banks
Pressure sensors
Z-axis motors
Rotational drive units

OEM-Compatible
Designed specifically for V12 heads in FUJI NXT II / NXT III / AIMEX machines.

Specifications

Applications

SMT placement machines in high-speed lines
Used with V12 heads handling multi-nozzle, high-volume production
Supports advanced functions like automatic nozzle change, dynamic calibration, and vision alignment

Quality & Packaging

100% OEM new or precision refurbished
Anti-static, shock-proof packaging for safe transit
ISO-compliant production and testing standards

Related Parts

Related Accessories for FUJI PM0FMB9 V12 Working Head Body

These components are usually integrated into or mounted on the PM0FMB9 honeycomb body to complete a functional V12 working head for FUJI NXT series machines.

Related Part Numbers for FUJI PM0FMB9 V12 Working Head Body

These part numbers are often stocked by FUJI SMT distributors or specialized parts resellers. If you need part numbers by machine type (e.g., NXT II, NXT III, AIMEX III), I can further refine the list.

FAQ Guide — FUJI PM0FMB9 V12 Working Head Body (Honeycomb Body)

1. What is the FUJI PM0FMB9 part used for?

Answer:
The PM0FMB9 is the main structural base (honeycomb body) of the V12 working head in FUJI NXT series SMT machines. It serves as the core frame where various modules like nozzles, sensors, motors, and encoders are mounted.

2. What does “Honeycomb Body” mean?

Answer:
“Honeycomb Body” refers to the internal honeycomb-style reinforcement design, which improves rigidity while keeping the frame lightweight. This design reduces vibration during high-speed operation and enhances placement accuracy.

3. Which machines is the PM0FMB9 compatible with?

Answer:
The PM0FMB9 is used in V12 working heads, which are compatible with the following machines:

FUJI NXT II
FUJI NXT III
FUJI AIMEX II / III

4. What components are mounted onto the PM0FMB9 body?

Answer:
The following modules and accessories are typically mounted on the PM0FMB9:

Nozzle holders and nozzles
Reference point unit (e.g. PM09NR4)
Z-axis motor and encoder
Rotation motor
Negative pressure sensor
Vision system camera
Suction detection sensor
Nozzle changer interface

5. Can the PM0FMB9 be replaced individually?

Answer:
Yes, the honeycomb body can be replaced independently if damaged or deformed. However, reassembly and calibration of the full head unit will be required afterward, usually by trained technicians.

6. What are common signs that the honeycomb body needs replacement?

Answer:

Mechanical deformation due to crash or impact
Abnormal nozzle positioning or misalignment
Mounting screw holes stripped or cracked
Head fails vision calibration despite sensor replacement

7. What material is the PM0FMB9 made of?

Answer:
It is made from aerospace-grade aluminum alloy, offering a strong balance between lightweight structure and mechanical strength. The surface is often treated for corrosion resistance.

8. How is the PM0FMB9 installed or assembled?

Answer:
Installation requires:

Use of alignment jigs (if available)
Reattachment of all modules per FUJI’s service manual
Torque-specific tightening of screws
Recalibration of the full V12 working head after assembly

9. Are refurbished or used PM0FMB9 parts available?

Answer:
Yes, many FUJI SMT suppliers offer:

New OEM parts
Refurbished units (tested for tolerances and structural integrity)
Be sure to verify that all screw threads and alignment points are intact before reuse.

10. What are the related part numbers for full head rebuild or repair?

Answer:
