Fuji PM09NR4 V12 working head reference point SMT Spare Parts

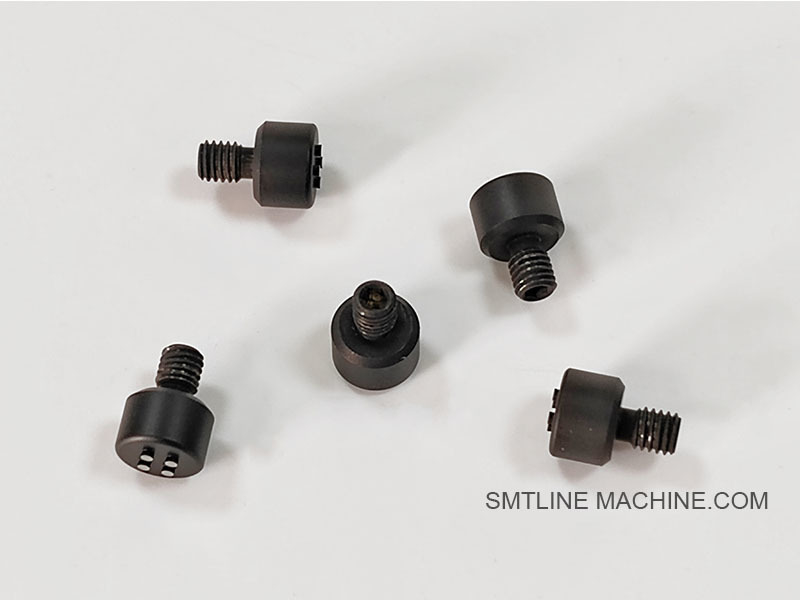

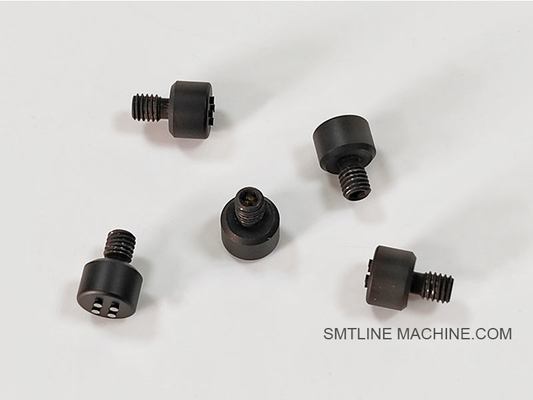

Fuji PM09NR4 V12 working head reference point

Our company has been in operation for 11 years and will definitely be your best choice with guaranteed quality and fast delivery


FUJI PM09NR4 V12 Working Head Reference Point — Product Overview

Brand: FUJI (Japan)
Model: PM09NR4 / V12 Working Head Reference Point
Certifications: ISO, CE compliant

Key Features

Precision-engineered alignment marker for FUJI NXT/V12 placement heads.
Ensures accurate reference positioning during automatic calibration cycles.
Constructed for OEM-grade durability; maintains high reliability under intensive production use.

Specifications

Part Number: PM09NR4
Country of Origin: Japan
Minimum Order Quantity: 1 piece
Production Capacity: Up to 1,000 pcs/month from the manufacturer
Lead Time: 1–3 days (based on availability

Quality & Service

100% factory-tested ensures original-new quality performance .
OEM packaging with secure boxing for safe delivery.
Shipping options via FedEx, UPS, DHL, EMS; air or sea freight available upon request
Payment terms supported: L/C, T/T, PayPal.

Application Highlights

This reference point is a critical calibration component for the FUJI NXT or V12 series pick-and-place machine heads. By providing a consistent and precise alignment baseline, it helps maintain optimal placement accuracy and minimizes production defects, particularly important in high-speed SMT workflows.

Related Accessories for FUJI PM09NR4 V12 Working Head Reference Point

Related Part Numbers for FUJI PM09NR4 V12 Working Head Reference Point

1. What is the Fuji PM09NR4?

Answer:
ThePM09NR4 is a precisionreference point component used in theFUJI V12 working head. It serves as acalibration mark orpositioning reference that enables accurate alignment and positioning of the pick-and-place head within FUJI NXT series machines.

2. Which machines or heads is the PM09NR4 compatible with?

Answer:
The PM09NR4 is designed specifically for use with theFUJI V12 working head, typically installed onNXT II,NXT III, andAIMEX series machines.

3. What is the function of a reference point in SMT machines?

Answer:
The reference point enables thevision system and control software to correctly locate the head’s position. It is critical during:

Head calibration
Nozzle centering
Auto-correction of alignment errors
Machine startup or tool change verification

4. What are the symptoms of a faulty or misaligned PM09NR4 reference point?

Answer:

Inaccurate component placement
Failed head calibration
Vision system recognition errors
Excessive head correction values

5. How often should the PM09NR4 be inspected or replaced?

Answer:
Inspection is recommended:

Monthly, as part of preventive maintenance
Immediately if alignment issues or calibration errors are detected
Replacement is typically required if:
The mark becomes scratched, dirty, or unreadable
The mounting position is damaged

6. How is the PM09NR4 installed or aligned?

Answer:

Use theFUJI reference point alignment jig/tool if available
Position using themachine’s vision alignment interface
Follow FUJI’s head assembly service manual for torque specs and orientation

7. What part numbers are related or commonly used with PM09NR4?

Answer:
Here are common related part numbers:

2MGTHA001000 – V12 working head unit
S65846 – Suction nozzle sensor
S4033G – Negative pressure sensor
AA06W00 / AA07000 – Nozzles (H12S/H08M)
AA8NC00 – Nozzle changer unit

8. Is the PM09NR4 an original FUJI part?

Answer:
Yes, the PM09NR4 is anOEM-certified FUJI spare part. Always purchase from verified suppliers to avoid compatibility issues or machine errors.

9. Can I clean the reference point instead of replacing it?

Answer:
Yes, if it’s only dusty or slightly smudged, you can clean it using:

Isopropyl alcohol (IPA) on a lint-free swab
Avoid excessive pressure or abrasive materials

10. Where can I buy the PM09NR4?

Answer:
Available through:

FUJI-authorized distributors
SMT parts suppliers such as SurfaceMountParts, SMTPLAZA, or Ecer
Ensure part number matches exactly and verify machine compatibility
