Product Introduction – FUJI PM51362 NXT H04/H04S Working Head Holder

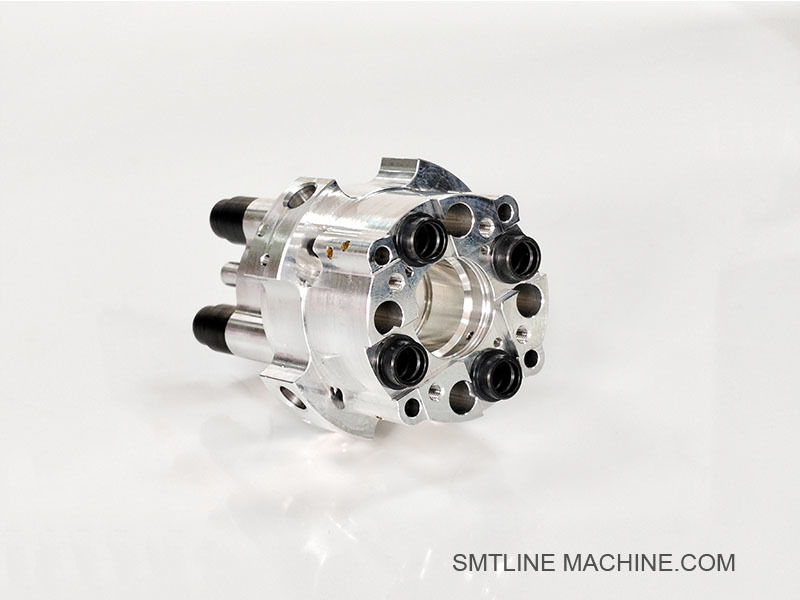

The FUJI PM51362 is a working head holder specifically designed for the H04 and H04S placement heads used in FUJI NXT series SMT machines. This holder serves as a critical mechanical support component that secures the head assembly within the placement module, ensuring stable and accurate mounting for high-speed pick-and-place operations.

Key Features:
Precision-Fit Design: Engineered to match the mechanical interface of FUJI H04/H04S heads and the NXT machine frame for reliable and repeatable head installation.
Rigid Construction: Made from high-strength, wear-resistant materials (typically anodized aluminum or stainless steel) to withstand mechanical stress and vibration during continuous operation.
Alignment Accuracy: Maintains exact positioning of the head to ensure optimal placement accuracy and proper alignment with feeders and nozzles.
Ease of Maintenance: Designed for quick head replacement or maintenance without disrupting machine calibration or production.

Application:
Used in FUJI NXT I / NXT II / NXT III SMT platforms.
Supports and locks the H04 or H04S placement head onto the machine's mounting base.
Ensures mechanical stability for heads handling medium-speed, general-purpose component placement.

Part Number:
PM51362

Maintenance Notes:
Periodically inspect for signs of wear, deformation, or mounting looseness.
Ensure the mounting screws and locking pins are secure and properly torqued.
Replace if misalignment or abnormal head vibration is detected during operation.






Related Accessories – FUJI PM51362 NXT H04/H04S Working Head Holder

These accessories work together to secure, align, and connect the H04/H04S working head to the FUJI NXT machine system with precision and reliability.





FAQ Guide – FUJI PM51362 NXT H04/H04S Working Head Holder

1. What is the FUJI PM51362 Head Holder used for?
The PM51362 is a precision mechanical holder that supports and secures the H04 or H04S working head onto a FUJI NXT machine. It ensures accurate mechanical positioning, electrical connection, and pneumatic interface for the head.

2. Which FUJI machines and heads is it compatible with?
Head Types: H04, H04S
Machine Series: FUJI NXT, NXT II, and NXT III platforms that accept H04/H04S heads

3. What does the head holder actually do?
Precisely aligns and mounts the working head into the machine
Provides mechanical stability during high-speed pick-and-place operations
Ensures reliable connection to air, vacuum, and electrical systems
Allows for quick head replacement during maintenance

4. Is the holder itself a wear item?
The holder is not a typical consumable, but over time it may wear due to:
Frequent head swaps
Mechanical stress or impact
Misalignment or improper installation
If wear or damage is detected, it should be replaced to maintain placement accuracy.

5. What are the signs that the holder may need replacement?
Loose fitting or wobbling head
Difficulty in locking/unlocking the head
Repeated placement errors despite correct head setup
Wear or deformation at mounting surfaces

6. Can I install the head holder myself?
Yes, qualified maintenance technicians can install or replace it following FUJI’s service manual. Correct torque settings and alignment checks are essential.

7. What components connect to the holder?
H04/H04S placement head
Head locking pins/clamps
Electrical and pneumatic connectors
Mounting screws
Sensor units (e.g. head presence detection)

8. What materials is the holder made from?
It’s typically manufactured from precision-machined aluminum or steel alloy, offering both lightweight strength and dimensional stability.

9. Can I use this holder for other head types (e.g., H08, H24)?
No. The PM51362 holder is specifically designed for H04/H04S heads. Other heads like H08/H24 or V-type require different holders and interfaces.

10. Where can I order a genuine PM51362 holder?
From authorized FUJI distributors
Certified SMT parts suppliers
Through FUJI’s official service network
