FUJI PP03410 V12 Head Mechanical Valve Stopper SMT Machine Spare Parts

FUJIPP03410 V12 head mechanical valve stopper
Our company has been in operation for 11 years and will definitely be your best choice with guaranteed quality and fast delivery

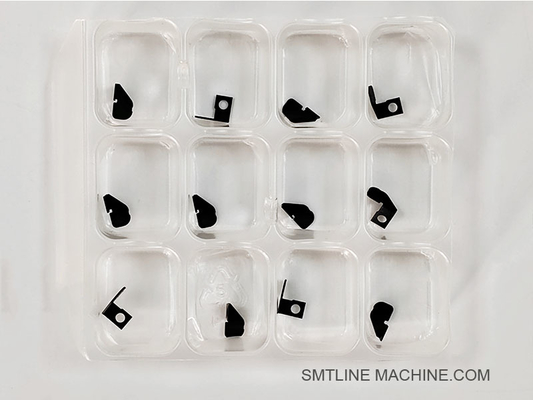

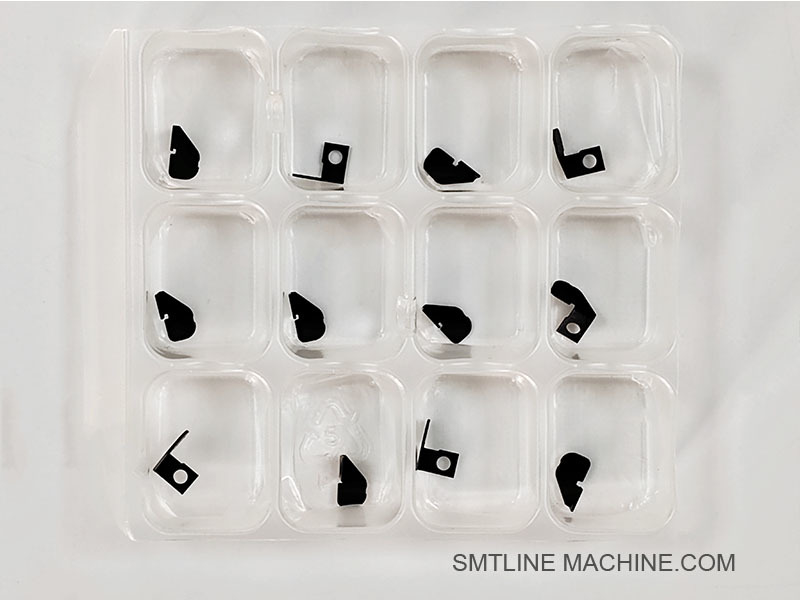

Product Introduction – FUJI PP03410 V12 Head Mechanical Valve Stopper

The FUJI PP03410 is a mechanical valve stopper designed for use in the V12 placement head of FUJI NXT series SMT machines. This component serves as a physical stopper or limit mechanism for the mechanical valve unit within the placement head.

Key Features:

Precision-machined component: Ensures accurate mechanical alignment and reliable movement control of the valve system.
Durable material: Made from high-strength metal for extended service life under continuous high-speed operation.
Compact design: Fits precisely within the tight tolerances of the V12 head's internal layout.
Stable performance: Contributes to consistent pneumatic switching and placement accuracy.

Application:

Installed inside the FUJI V12 working head.
Works in conjunction with the mechanical valve to control airflow and valve actuation limits.
Plays a critical role in head motion control and timing in high-speed SMT pick-and-place operations.

Part Number:

PP03410

Maintenance Tips:

Inspect for wear or deformation during scheduled maintenance.
Replace if signs of mechanical damage, misalignment, or valve malfunction occur.
Use genuine FUJI parts to ensure performance and compatibility.

Related Accessories – FUJI PP03410 V12 Head Mechanical Valve Stopper

Related Part Numbers – FUJI PP03410 V12 Head Mechanical Valve Stopper

> Note:

Part numbers may vary slightly depending on machine revision and regional supply.
Always verify compatibility using the FUJI parts manual or consult your FUJI distributor.

FAQ Guide – FUJI PP03410 V12 Head Mechanical Valve Stopper

1. What is the FUJI PP03410 mechanical valve stopper?

It is a precision-machined mechanical component used in the V12 placement head of FUJI SMT machines. The stopper works with the mechanical valve to control the actuation limit and motion range of air-driven mechanisms.

2. What does the mechanical valve stopper do?

The stopper:

Serves as a physical limit to control the stroke or range of the mechanical valve inside the V12 head.
Ensures reliable valve operation by preventing over-extension or misalignment.
Plays a key role in the timing and accuracy of pick-and-place movements.

3. Which FUJI machines use the PP03410 stopper?

It is specifically used in FUJI NXT V12 placement heads, which are found in:

NXT II
NXT III
Compatible systems using the V12 head module

4. How do I know if the stopper needs replacement?

Look for these signs:

Irregular valve movement
Placement head air leakage
Mechanical interference or abnormal valve stroke
Error codes related to valve actuation timing

5. Can I replace just the stopper, or do I need to replace the whole valve?

Yes, the stopper (PP03410) can be replaced independently. However, it’s recommended to inspect the entire mechanical valve assembly and seals for wear.

6. What materials is the stopper made from?

It is made of high-strength metal (often stainless steel or hardened alloy) to endure the stress and speed of the pick-and-place process.

7. What other components work with the valve stopper?

Common related components include:

Mechanical valve unit (e.g., AA1FZ00)
O-rings and valve seals (e.g., PM93970)
Valve return spring
Pneumatic tubes and fittings
Mounting screws

8. How should the stopper be maintained?

Check for wear or deformation during preventive maintenance.
Clean with non-corrosive solvent and avoid excessive force during installation.
Replace if damaged to maintain valve performance.

9. Can I use non-genuine or third-party replacements?

While third-party options may exist, FUJI recommends using original parts to ensure mechanical tolerance, durability, and machine safety.

10. Where can I order the PP03410 or related parts?

From:

Official FUJI distributors
Authorized SMT parts suppliers
OEM equipment providers with FUJI certification
