FUJI PZ54200 PAM Calibration Glass IC SMT Machine Spare Parts

FUJIPZ54200 PAM Calibration Glass IC
Our company has been in operation for 11 years and will definitely be your best choice with guaranteed quality and fast delivery

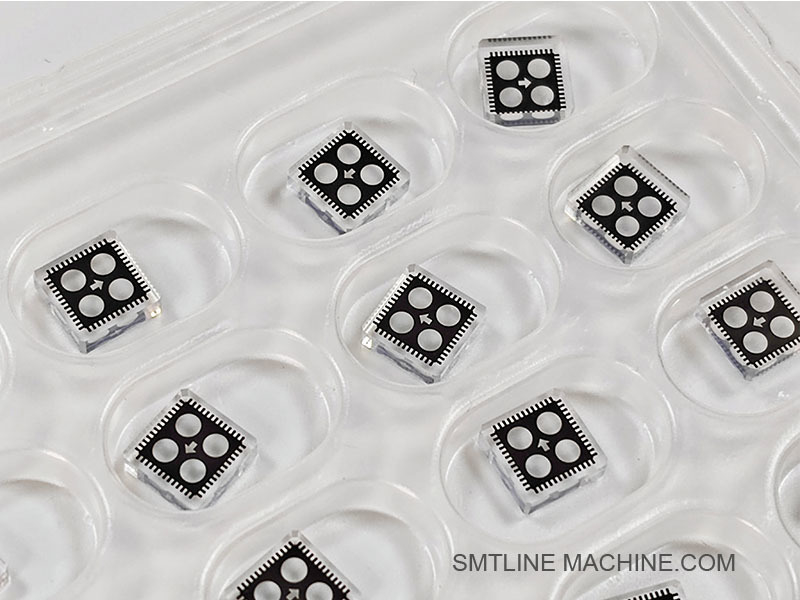

Product Introduction – FUJI PZ54200 PAM Calibration Glass IC

The FUJI PZ54200 PAM Calibration Glass IC is a precision calibration component used in FUJI SMT machines for optical alignment and sensor calibration. This calibration glass is specially designed to ensure the accurate calibration of the PAM (Precision Alignment Module) systems, which are critical for high-speed, high-accuracy component placement.

Key Features:
High-precision optical glass: Provides stable and consistent reference patterns for sensor calibration. Durable and scratch-resistant: Manufactured with high-quality materials to withstand repeated use in industrial environments. Optimized for FUJI PAM systems: Specifically engineered to match the optical characteristics and calibration requirements of FUJI SMT equipment. Easy to handle: Compact and lightweight for convenient installation and maintenance.

Application:
Used during the calibration process of FUJI SMT machines’ PAM sensors. Ensures accurate component positioning by verifying sensor alignment and detection accuracy.
Part Number:
PZ54200

Maintenance Tips:
Keep the glass surface clean and free from dust or fingerprints. Handle with care to avoid scratches or damages that could affect calibration accuracy. Store in protective casing when not in use.






Related Accessories – FUJI PZ54200 PAM Calibration Glass IC










Related Part Numbers – FUJI PZ54200 PAM Calibration Glass IC

> Note: Some accessory part numbers may be supplier- or region-specific. Always confirm with your FUJI distributor or authorized service provider.





FAQ Guide – FUJI PZ54200 PAM Calibration Glass IC
1. What is the FUJI PZ54200 PAM Calibration Glass IC?
It is a precision optical calibration glass used to calibrate the PAM (Precision Alignment Module) sensors in FUJI SMT machines, ensuring accurate component placement.

2. What is the main purpose of this calibration glass?
To provide a stable and precise optical reference surface for the alignment and calibration of the PAM sensor system.

3. Which machines use the PZ54200 calibration glass?
Primarily FUJI SMT machines equipped with PAM systems, including various NXT and other models that utilize optical alignment modules.

4. How often should the calibration glass be used or replaced?
Calibration is typically performed during routine maintenance or after sensor replacements.
Replacement is recommended if the glass is scratched, damaged, or contaminated beyond cleaning.

5. How should the calibration glass be handled?
Handle with clean gloves or tweezers to avoid fingerprints.
Avoid scratching or dropping the glass.
Store in a protective case when not in use.

6. How do I clean the calibration glass?
Use a specialized optical cleaning kit with lint-free cloths and appropriate cleaning solution. Avoid harsh chemicals or abrasive materials.

7. What if the calibration glass is damaged?
Damaged glass can lead to inaccurate calibration and misalignment errors. Replace immediately with a genuine FUJI PZ54200 part.

8. Can third-party calibration glasses be used?
While third-party products exist, FUJI recommends using genuine calibration glasses to ensure compatibility and precision.

9. Where can I purchase the FUJI PZ54200 calibration glass?
Through authorized FUJI distributors, certified SMT equipment suppliers, or directly from FUJI.

10. Are there any accessories required for calibration?
Yes, including protective cases, cleaning kits, and calibration holders or fixtures, which help ensure accurate and safe calibration processes.
