FUJI S2124K S64088 NXT First Generation Cutter Cylinder SMT Machine Spare Parts

FUJIS2124K S64088 NXT first generation cutter cylinder

Our company has been in operation for 11 years and will definitely be your best choice with guaranteed quality and fast delivery

Here is the English product introduction for the FUJI S2124K / S64088 NXT First Generation Cutter Cylinder:

Product Introduction – FUJI S2124K / S64088 NXT First Generation Cutter Cylinder

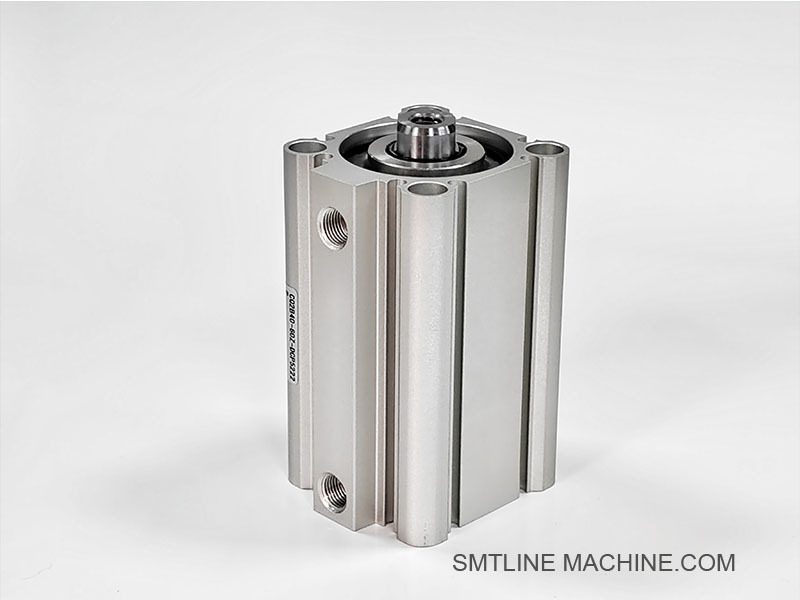

The FUJI S2124K (also known as S64088) is a cutter cylinder specifically designed for the first-generation FUJI NXT series SMT machines. It is a pneumatic actuator component responsible for driving the tape cutter mechanism that separates the cover tape from the carrier tape during component feeding.

Key Features:

Precise Cutting Action: Ensures accurate and consistent removal of cover tape for seamless component pick-up.

High Durability: Built to withstand high-speed and high-frequency operation cycles in continuous SMT production environments.

Stable Air-Driven Mechanism: Operates using compressed air, integrated into the machine’s pneumatic control system for reliable performance.

Compact Design: Optimized for the space-constrained layout of NXT feeder units and heads.

Application:

Suitable for FUJI NXT First Generation placement machines.

Used in conjunction with feeder units to support smooth and uninterrupted component supply.

Part Numbers:

Primary Part No.: S2124K

Alternative/Old Part No.: S64088 (equivalent specification)

Installation Position:

Located within the tape feeder unit or cutter module of the NXT first-generation working head system.

Maintenance Tips:

Regularly check air pressure and actuator response time.

Replace if any signs of air leakage, weak cutting action, or mechanical sticking are observed.

Related Accessories – FUJI S2124K / S64088 NXT First Generation Cutter Cylinder

Note: Always confirm the exact feeder type or cutter unit model when selecting accessories to ensure compatibility.

Related Part Numbers – FUJI S2124K / S64088 Cutter Cylinder

Note:

Some part numbers (especially blades and brackets) may vary depending on feeder type (8mm, 12mm, etc.).
OEM part numbers may be different from FUJI original parts. Always cross-check with machine BOM or supplier catalog.

FAQ Guide – FUJI S2124K / S64088 NXT First Generation Cutter Cylinder

1. What is the FUJI S2124K / S64088 cutter cylinder?

It is a pneumatic actuator used in FUJI NXT first generation SMT machines to drive the tape cutter mechanism, separating the cover tape from the carrier tape during component feeding.

2. Which machines use this cutter cylinder?

This cutter cylinder is designed for use with the FUJI NXT first generation series placement machines.

3. What is the main function of this cutter cylinder?

To provide precise and reliable cutting of the cover tape to ensure smooth component feeding and prevent tape jamming or misfeeds.

4. What are the key features of this cylinder?
High durability for long production runs Stable and accurate pneumatic operation Compact design suited for the NXT first gen feeder layout

5. How do I know if the cutter cylinder is faulty?

Signs of failure include:

Incomplete or failed tape cutting
Air leakage or weak cylinder movement
Frequent tape jams or feeder errors

6. Can the cutter cylinder be repaired?

Typically, due to its pneumatic and mechanical nature, replacement is recommended rather than repair.

7. What maintenance is required?
Regularly check air pressure and pneumatic connections Inspect for physical damage or wear Replace the cutter blade and other consumables periodically

8. Are there compatible replacement parts or alternatives?

Genuine FUJI parts are recommended. Some aftermarket compatible parts exist but must match specifications exactly to ensure proper function.

9. What are the related parts I may need?
Cutter blades Pneumatic tubing and fittings Solenoid valves controlling air supply Mounting brackets and sensors

10. How to install the cutter cylinder?

Refer to the FUJI NXT machine service manual. Installation usually involves mounting the cylinder in the feeder unit and connecting pneumatic and electrical interfaces.

11. Where can I buy genuine replacement parts?

Authorized FUJI distributors, certified SMT equipment suppliers, or directly from FUJI.
