FUJI UG00300 – NXT MARK Camera



Overview

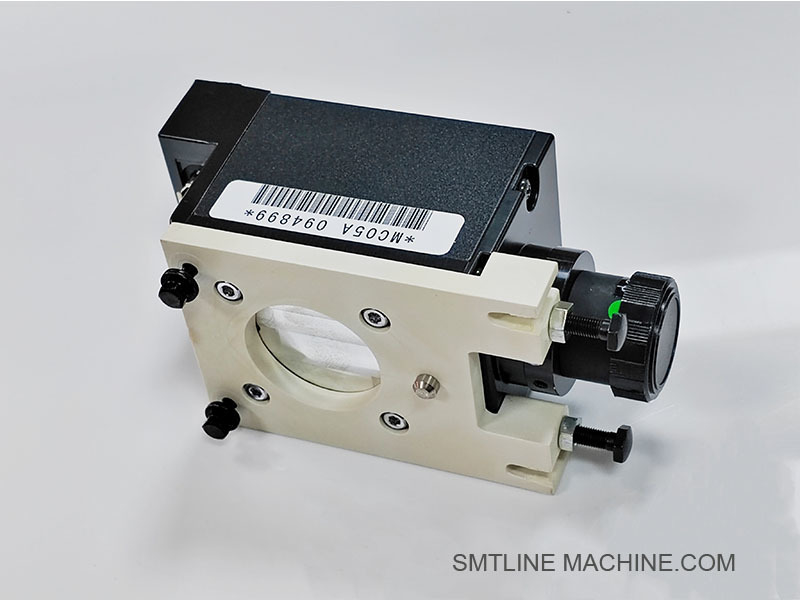

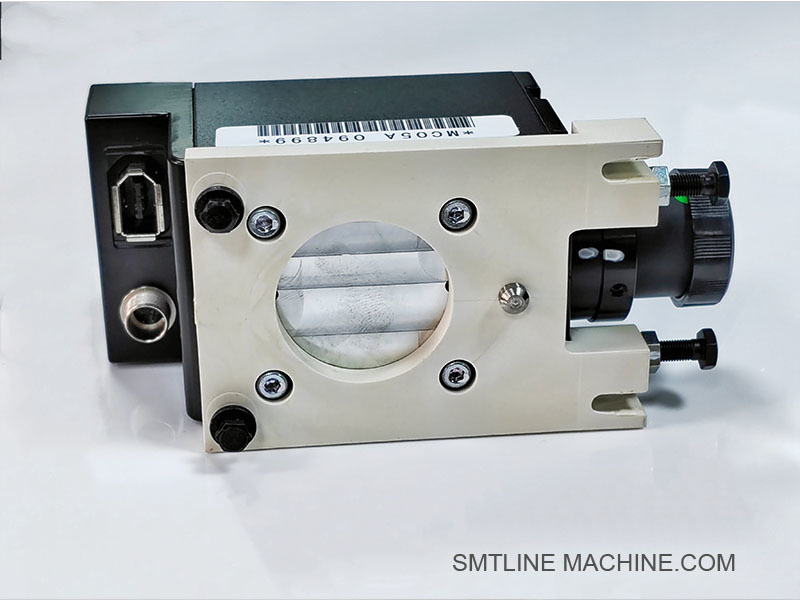

The FUJI UG00300 is a high-resolution MARK camera module designed for use in FUJI NXT series SMT placement machines. It is responsible for accurately detecting fiducial marks on PCBs, enabling precise board alignment during the component placement process.



Key Features

High-precision fiducial recognition for accurate PCB registration
High-resolution CMOS sensor ensures sharp and reliable image capture
Integrated LED lighting system for consistent illumination of fiducials
Optimized for high-speed operation in fully automated SMT environments
Seamlessly integrates with FUJI’s vision processing and alignment system



Applications

Compatible with FUJI NXT I, II, III, and IV platforms
Used for fiducial mark detection to correct PCB offset and rotation
Essential for high-accuracy placement in multi-board and fine-pitch assembly



Technical Specifications (Typical)

Parameter Specification
Part Number UG00300
Camera Type Area-scan MARK camera
Sensor Type CMOS
Resolution High-resolution (FUJI standard)
Interface Integrated with NXT control system
Illumination Built-in LED ring light (white/red)
Mounting Location Inside NXT module, typically near rail
Operating Mode Automatic fiducial capture during load

Benefits

Ensures precise board alignment before every placement cycle
Supports high-speed PCB processing without loss of accuracy
Reduces need for manual correction or fiducial setup errors
Long-life design with minimal maintenance needs



Related Components

Component Part Number (Example) Description
MARK Camera Module UG00300 Main camera for fiducial detection
Camera Cable Harness XH01191 / XH01230 Connects camera to vision processing board
LED Light Source XM01960 / XM02070 Provides illumination for fiducial recognition
Vision Processing Board 2AGKHA000402 Processes image from the MARK camera
Mounting Bracket XM02570 Secures camera in fixed position













Related Accessories – FUJI UG00300 NXT MARK Camera

Component Name Part Number (Example) Function / Description
MARK Camera Cable XH01191 / XH01230 Transmits image data and power between the MARK camera and control board
Vision Processing Board 2AGKHA000402 Processes image data from the MARK camera and provides alignment feedback
LED Illumination Unit XM01960 / XM02070 Provides consistent lighting to enhance visibility of fiducial marks
Camera Mounting Bracket XM02570 / XM02710 Holds the MARK camera securely inside the NXT machine
Fiducial Reference Plate XM02800 (optional) Used for camera calibration and fiducial detection alignment tests
Light Diffuser Lens XM02190 Enhances uniformity of lighting for fiducial scanning
Camera Cooling Fan XH01431 Prevents overheating of the camera and surrounding optics (if applicable)
Nozzle Camera Switching PCB XK04200 / XK04150 Coordinates signal switching between different vision systems (optional)

Optional / Supporting Parts

Item Function
EMI Shield for Camera Module Protects image signal from electrical interference
Calibration Fixture (Tooling)** Used for precise alignment and maintenance of MARK system
Replacement Lens Cover** Protects lens from dust and contamination












FUJI UG00300 MARK Camera – Related Part Numbers

Component Part Number Description
MARK Camera Unit UG00300 Main high-resolution fiducial recognition camera
Vision Cable Harness XH01191 / XH01230 Connects MARK camera to the vision processing board
Vision Processing PCB 2AGKHA000402 Image processing board for all IPS and MARK camera systems
LED Illumination Unit XM01960 / XM02070 Provides lighting for fiducial detection
Camera Mounting Bracket XM02570 / XM02710 Structural bracket for securing the camera inside the module
Light Diffuser Lens (if used) XM02190 Distributes LED light evenly on PCB surface
Cooling Fan for Camera Module XH01431 Prevents overheating during continuous vision operation
Switching PCB (Optional) XK04200 / XK04150 Switches between nozzle and MARK cameras in vision system
Camera Housing/Shield XM02280 Covers and protects the MARK camera module

These part numbers may vary slightly depending on the NXT generation (I/II/III/IV) and camera configuration. FUJI often provides these as modules or kits, especially for retrofits or upgrades.

FUJI UG00300   NXT MARK camera 0











FAQ Guide – FUJI UG00300 NXT MARK Camera



General Information

Q1: What is the FUJI UG00300 MARK Camera?

A: The FUJI UG00300 is a MARK recognition camera module used in FUJI NXT machines to detect fiducial marks (reference points) on printed circuit boards (PCBs). These marks are used to align the PCB correctly before component placement.



Q2: Which FUJI machines use this camera?

A: The UG00300 is compatible with:

FUJI NXT I, II, III, and IV platforms
Modules that require automatic fiducial detection for PCB alignment



Functionality & Features

Q3: What does the MARK camera do during operation?

A:

Captures high-resolution images of fiducial marks on the PCB
Sends the image to the vision processing board for analysis
Helps correct any X/Y offset or rotation of the board
Ensures components are placed with high accuracy



Q4: Does it include lighting?

A: Yes. The camera includes built-in LED lighting (typically white or red), optimized for contrast on various PCB surface finishes (e.g., copper, matte, glossy).



Maintenance & Troubleshooting

Q5: How should I maintain the UG00300 camera?

A:

Keep the lens and light cover clean using non-abrasive lens wipes
Inspect cables (XH01191 / XH01230) for wear or disconnection
Check for dust or residue on fiducial windows or PCB surface
Calibrate the camera as needed during machine maintenance cycles



Q6: What are signs of camera issues?

Issue Possible Cause Recommended Action
Camera not detecting fiducials Dirty lens or poor lighting Clean lens/light, inspect LED unit
Board alignment errors Faulty processing board or sensor Check 2AGKHA000402 vision board
Blurry or distorted image Misaligned or damaged camera Recalibrate or replace camera module
No image captured Disconnected cable or camera failure Check cables (XH01191/XH01230) and replace

Related Components

Component Part Number Function
MARK Camera Module UG00300 Captures fiducial images for board alignment
Vision Processing PCB 2AGKHA000402 Analyzes image from MARK camera
LED Illumination Unit XM01960 / XM02070 Ensures visibility of fiducial marks
Vision Cable Harness XH01191 / XH01230 Connects MARK camera to control system
Mounting Bracket XM02570 / XM02710 Secures camera module inside NXT machine

Best Practices

Perform regular cleaning and visual checks
Use FUJI-specified calibration boards to test fiducial recognition
Avoid touching the lens with bare hands
Do not apply excessive force during module installation or removal
Replace faulty cables or light sources immediately
