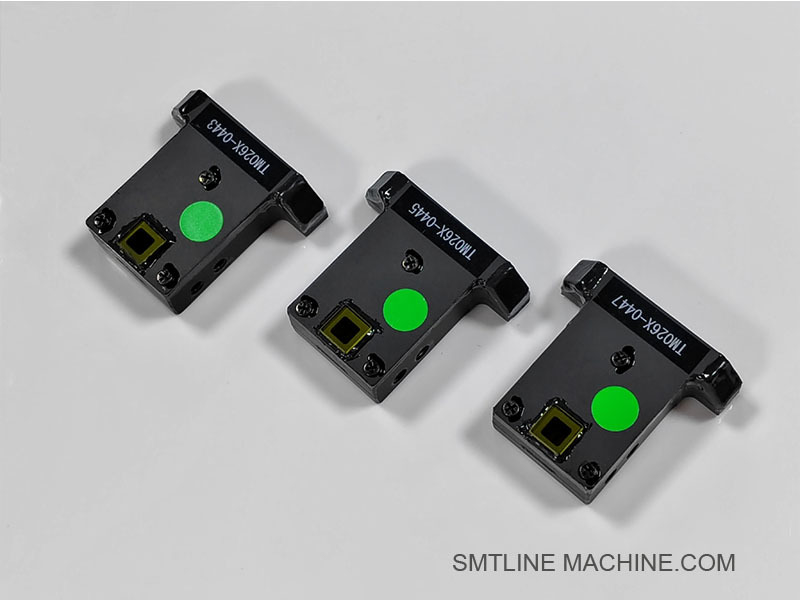

FUJI V12 IPS Camera Lens – Product Description

Overview

The FUJI V12 IPS Camera Lens is a high-precision optical lens specifically designed for the V12 working head of FUJI NXT placement machines. It is a critical component of the IPS (Image Processing System) that captures high-resolution images of components during high-speed, on-the-fly placement operations.

Key Features

High-resolution optical clarity for accurate component recognition
Designed for on-the-fly vision inspection during pick-and-place movement
Works in conjunction with the V12 OFC camera prism and image sensor
Built to withstand vibration, heat, and dust in high-speed SMT environments
Factory-calibrated focus and alignment for seamless integration

Applications

Compatible with FUJI NXT V12 heads equipped with an IPS vision system
Used in high-speed SMT lines requiring real-time image processing
Supports recognition of various components including small ICs and 0201 chips

Specifications (Typical)

Benefits

Enables precise component recognition and placement accuracy
Optimized for high-speed performance without loss of image quality
Long service life with minimal maintenance
Seamlessly integrates with FUJI’s V12 IPS imaging hardware

Related Components

Related Accessories – FUJI V12 IPS Camera Lens

Optional / Supporting Components

These components are typically installed together as part of the V12 head’s IPS unit in FUJI NXT systems. Using genuine FUJI parts ensures alignment accuracy and image reliability.

FUJI V12 IPS Camera Lens – Related Part Numbers

> Note: The exact part number for the IPS Camera Lens may vary depending on the lens revision or optical spec used in different V12 head generations (e.g., V12, V12-HS). FUJI typically does not sell the lens as a standalone item but as part of the full camera unit or IPS module.

FAQ Guide – FUJI V12 IPS Camera Lens

General Information

Q1: What is the FUJI V12 IPS Camera Lens?

A: The FUJI V12 IPS Camera Lens is a high-precision optical lens used in the V12 working head of FUJI NXT SMT machines. It works with the IPS (Image Processing System) to capture real-time images of components during pick-and-place operations for alignment, rotation, and inspection.

Q2: Which FUJI machines use the V12 IPS Camera Lens?

A:

FUJI NXT II / III / IV machines equipped with V12 or V12-HS working heads
Any system requiring high-speed vision-assisted placement

Functionality & Operation

Q3: What does the IPS Camera Lens do?

A:
It focuses the optical path from the component (via the OFC prism) onto the image sensor, allowing the IPS system to analyze:

Component orientation
Alignment and rotation
Package size and shape
Presence or absence (for missing part detection)

Q4: What components work with the lens?

A:

OFC camera prism (e.g. XB03216)
IPS image sensor module (e.g. XH01052 / XH01191)
Camera cable harness (e.g. XH01230)
LED illumination unit (for shadow-free lighting)

Maintenance & Replacement
Q5: Can the lens be cleaned or serviced?

A:
Yes, but only by trained technicians. Use anti-static gloves and optical lens cleaning kits. Avoid touching the lens surface directly. Clean gently with non-abrasive wipes.

Q6: How do I know the lens is damaged or misaligned?

A:
You may observe:

Blurred or distorted images
Misalignment errors in placement
Failed vision recognition during operation
Increased placement error rate

Q7: Can I replace the IPS lens separately?

A:
Usually, FUJI provides the lens as part of an assembled IPS camera unit. Separate lens replacement may not be supported officially. Always check with FUJI service.

Troubleshooting

Related Parts

Best Practices

Keep the lens and prism clean to maintain image accuracy
Avoid strong physical shocks to the V12 head
Recalibrate the IPS system after replacing any lens-related component
Store lens assemblies in anti-static, dust-free packaging
