FUJI XK04032 M3 II Double Track Control Card – Product Description



Overview

The FUJI XK04032 is a Double Track Control Card specifically designed for the FUJI NXT M3 II module. It manages the motion control and synchronization of dual conveyor tracks used for simultaneous PCB transport. This card enables independent or synchronized operation of the left and right tracks, ensuring high-speed, high-efficiency SMT production.



Key Features

Controls conveyor motors for dual-track movement
Supports automatic rail width adjustment via motor control
Interfaces with sensors, limit switches, and photoelectric detectors
Allows independent or synchronized dual-track operation
Communicates with the main control system via internal system bus
Provides real-time monitoring and diagnostic feedback for rail status



Application

Designed for FUJI NXT M3 II modules equipped with dual-rail (double track) transport systems
Ideal for parallel PCB processing or multi-task SMT operations



Technical Specifications (Typical)

Parameter Specification
Control Method Digital I/O + Motor driver outputs
Input Interfaces Sensors, limit switches, proximity sensors
Output Interfaces Stepper/servo motors, actuators
Voltage DC 24V (standard industrial control voltage)
Mounting Method Plug-in card (modular board slot)
Communication Internal bus communication with main controller

Product Benefits

Enables high-speed, flexible dual-rail operations
Modular design for easy replacement and maintenance
Supports automatic rail alignment and calibration
Improves overall throughput in high-mix SMT environments
Fully compatible with FUJI's control ecosystem



Related Accessories

Component Name Example Part Number Function
Motor Driver Board XK04120 Drives rail movement or rail-width motor
Limit Sensor Unit XM01918 Detects track position endpoints
Signal Cable Harness XH01230 / XH01380 Connects card to motors/sensors
M3 II Main Controller PCB XK04200

Coordinates with the double-track card










Related Accessories – FUJI XK04032 Double Track Control Card

Component Name Example Part Number Description
Double Track Control Card XK04032 Main control board for dual-track conveyor operation in M3 II module
Motor Driver Board XK04120 Drives conveyor motors or rail-width adjustment motors
Conveyor Motor XM01780 / XM01802 Motor for driving left/right conveyor belt motion
Rail Width Adjustment Motor XM01924 / XM02015 Motor to automatically adjust the track spacing between rails
Limit Sensor / Switch XM01918 / XM02045 Detects travel endpoints and rail positions
Photoelectric Sensor XM02100 / XM02230 Detects PCBs on conveyor for start/stop control
Signal Cable Harness XH01230 / XH01380 Connects control card to motors and sensors
I/O Connector Board XK04210 Interface board for consolidating sensor signals
Main Controller PCB XK04200 Central controller that communicates with the double-track card
Power Supply Unit XK04350 / XK04690 Supplies 24V DC power to control and driver boards

Optional Accessories

Item Description
Diagnostic LED Panel Displays signal status and troubleshooting indicators
Rail Encoder Unit (if applicable) Provides position feedback for automated track adjustments
Protective Cover or Shielding Prevents dust or debris from affecting the control board and connectors









FUJI XK04032 – Related Part Numbers

Component Part Number Description
Double Track Control Card XK04032 Main controller for dual-track conveyor in M3 II module
Motor Driver Board XK04120 Drives conveyor belt or rail adjustment motors
Conveyor Motor (Left/Right Track) XM01780 / XM01802 Motors responsible for driving each side of the conveyor
Rail Width Adjustment Motor XM01924 / XM02015 Motor used to automatically change rail spacing
Limit Sensor Switch XM01918 / XM02045 Detects endpoints of track travel
Photoelectric PCB Sensor XM02100 / XM02230 Detects presence/position of PCB on the conveyor
Signal Cable Harness XH01230 / XH01380 Wiring harness for signal/power connections
I/O Interface Board XK04210 Interface board for routing I/O signals from sensors/motors
Main Controller PCB (M3 II Control) XK04200 Coordinates logic and motion control with track system
Power Supply Unit XK04350 / XK04690 Provides 24V power to the card and connected devices
Fused Protection Board (Optional) XM01501 Protects circuitry from overcurrent or short circuits

These part numbers are commonly found within the M3 II dual-track control system and are compatible with the XK04032 board.

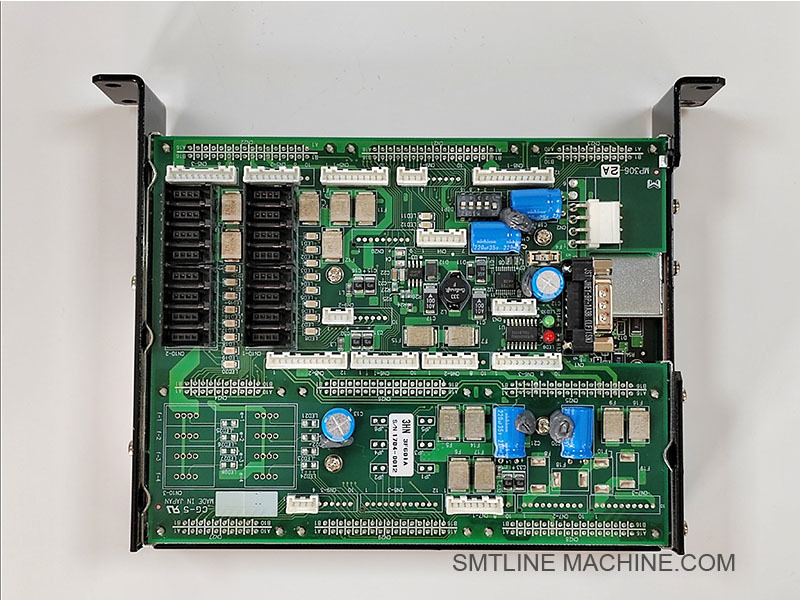

FUJIXK04032 M3 II Double Track Control Card 0













FAQ Guide – FUJI XK04032 M3 II Double Track Control Card



General Information

Q1: What is the FUJI XK04032 used for?

A: The XK04032 is a control board used in FUJI NXT M3 II modules to manage dual-track (double-lane) conveyor systems. It allows for synchronized or independent control of the left and right conveyor tracks, ensuring smooth PCB transport and automatic rail width adjustments.



Q2: What are dual tracks in this context?

A: Dual tracks refer to the two-lane PCB transport system that allows the machine to process two PCBs simultaneously or alternately, enhancing throughput. This card enables coordinated control of both tracks.



Functionality

Q3: What does the XK04032 card control?

A:

Conveyor motor motion (start/stop, direction)
Rail width adjustment motors
Sensors and limit switches for track positions
Track synchronization logic
Signal communication with the main control system



Q4: Can the left and right tracks operate independently?

A: Yes. The XK04032 supports independent and synchronized operation modes, depending on the configuration and the production mode selected in the machine’s software.



Installation & Maintenance

Q5: Is this card hot-swappable?

A: No. Always power down the system before replacing or removing the control card to avoid damage and ensure safety.



Q6: Where is this card installed?

A: It is installed inside the M3 II module control cabinet, typically in a designated PCB slot near the main controller.



Q7: What should I check before replacing the card?

A:

Confirm that power is off
Label and note cable connections
Verify the part number and firmware compatibility
Check related components (sensors, motors, harnesses) for faults



Troubleshooting

Issue Possible Cause Recommended Action
One track doesn’t move Motor driver failure or wiring issue Check related motor and driver board
Rail width not adjusting Adjustment motor or sensor issue Inspect XM01924 motor and limit sensors
Alarm: "Double Track Error" Sync failure or sensor misalignment Recalibrate tracks and check photo sensors
No response from both tracks Control card failure or power loss Verify XK04032 is powered and seated properly

Related Parts

Component Part Number Function
Double Track Control Card XK04032 Main dual-track conveyor control board
Conveyor Motor XM01780 / XM01802 Drives track movement
Width Adjustment Motor XM01924 / XM02015 Adjusts rail spacing
Limit Sensor XM01918 / XM02045 Detects track endpoints
Cable Harness XH01230 / XH01380 Connects board to motors/sensors
Power Supply Board XK04350 / XK04690 Provides 24V power to control system

Best Practices

Always use original FUJI parts
Clean track sensors regularly
Recalibrate track spacing if PCBs are misaligned
Document any hardware changes or firmware updates
Include the XK04032 in periodic system diagnostics
