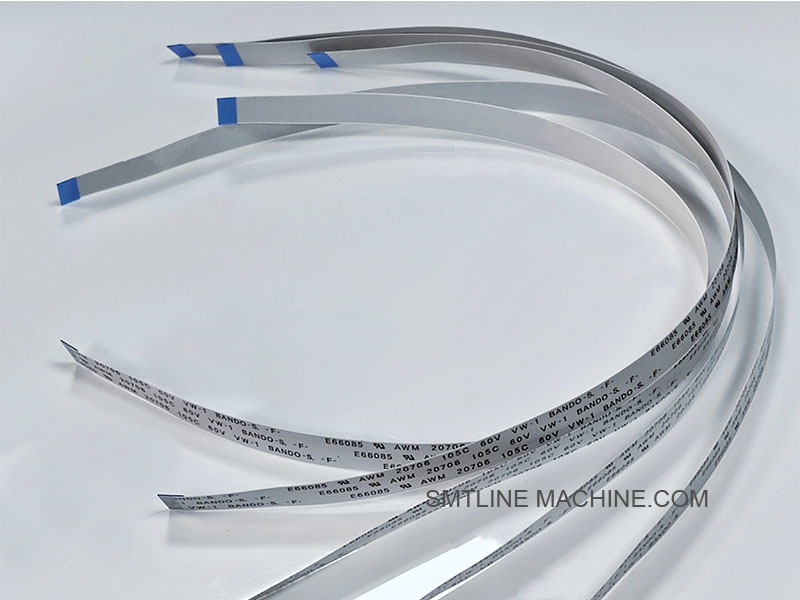

FUJIXH01230 NXT working head IPS camera cable

FUJIXH01230 NXT working head IPS camera cable

  • BRAND
    FUJI
  • Model
    FUJIXH01230 NXT Working Head IPS Camera Cable
  • CAPACITY
    1009
  • Mounter Weight
    0.79kg
  • Mounter Size
    56
  • Supplier
    CNSMT
  • Condition
    New
  • Place of Origin
    Japan
  • Brand Name
    FUJI
  • Certification
    YAMAHA Vibration Vibration Fit YV YS
  • Model Number
    FUJIXH01230 NXT working head IPS camera cable
  • Minimum Order Quantity
    1
  • Price
    negotiation
  • Packaging Details
    Woodenbox
  • Delivery Time
    1-2 work days
  • Payment Terms
    T/T,Western Union,paypal
  • Supply Ability
    10pcs/day

FUJIXH01230 NXT working head IPS camera cable

FUJIXH01230 NXT working head IPS camera cable

Our company has been in operation for 11 years and will definitely be your best choice with guaranteed quality and fast delivery





FUJI XH01230 NXT Working Head IPS Camera Cable – Product Description



Overview

The FUJI XH01230 is a specialized camera signal cable designed for the IPS (Image Processing System) within the working head of FUJI NXT series SMT machines. It connects the internal IPS camera module to the main controller or image processing board, ensuring fast and reliable image data transmission for high-precision component recognition.


Key Features

Compatible with FUJI NXT I / II / III platforms
Connects the IPS vision camera inside the working head to control/main board
Supports high-speed, low-latency image signal transmission
Shielded and durable design for noise reduction and mechanical reliability
Flexible and designed for use in high-motion robotic environments


Applications

Used inside NXT working heads such as H08M, H12HS, V12, ND12A, etc. (head model compatibility should be confirmed)
Installed between the head-mounted IPS camera and the internal signal processing board
For internal use only, not for external connections


Typical Specifications

Specification Details
Connector Type FUJI proprietary high-density plug
Cable Length Approx. 300–500 mm (standard)
Shielding Braided + foil dual-layer shielding
Operating Temp. -10°C to 80°C
Flex Life ≥1,000,000 cycles (dynamic use)

Packaging Information

Included: 1 × XH01230 IPS Camera Cable
Comes with original FUJI part label and tracking code
Optional: Other camera cables available for different head models or lengths


Summary

The FUJI XH01230 IPS Camera Cable is a mission-critical component of the NXT working head’s image processing system. It enables fast and stable image data transfer from the IPS camera to the control system, ensuring precise component positioning and defect recognition. Its robust shielding and flexible construction make it ideal for use in high-speed pick-and-place heads.







Related Accessories – FUJI XH01230 IPS Camera Cable

Component Name Part Number (Example) Description
IPS Camera Module (Head-Mounted) Varies by head Mounted inside the working head; sends visual data via the XH01230 cable
Image Processing Board / Vision PCB e.g., 2AGKHA0004xx Receives camera signal from XH01230 and processes it for placement accuracy
Cable Clamp / Retainer Common internal hardware Holds the camera cable securely to prevent motion-induced damage
Working Head Cable Harness Assembly e.g., XH01210, XH01390 A set of internal cables including power, signal, and camera cables
ND Head (e.g., H12HS / V12 / ND36A) ND12A, ND36A The entire working head assembly where the IPS cable is installed
IPS Camera Lens / Filter Unit Head-specific part Optional optical components attached to the camera module for imaging accuracy
Shielding Sleeve or Mesh Wrap Generic or custom part Additional EMI protection around camera cable
Camera Cable for Alternate Heads e.g., XH01391 Alternative cable lengths or types for different working head configurations

Maintenance-Related Accessories

Accessory Use
Antistatic cleaning swabs Cleaning the IPS lens and cable contacts
Cable connector lubricant Protecting camera cable connectors from oxidation
Cable continuity tester Ensuring signal integrity after replacement or movement

Compatibility Notes

The XH01230 is typically designed for specific working heads in the NXT series.
Not interchangeable with older NXT H04 or H08 head camera cables unless explicitly matched.
Ensure that the IPS module and camera board versions support the connector type and signal format.







Related Part Numbers – FUJI XH01230 IPS Camera Cable

Component Name Part Number Description
IPS Camera Cable XH01230 Primary signal cable connecting the IPS camera to the processing board
IPS Camera Module XH01052 / XH01191 Vision camera mounted inside the working head for component recognition
Image Processing Board (Vision PCB) 2AGKHA000402 / 2AGKHA008800 Main board that receives and processes image signals
Working Head Cable Harness Assembly XH01210 / XH01390 Internal cable bundle including power, signal, and camera lines
Camera Lens / Optical Unit XM02231 / XH01430 Lens or optical filter used with the IPS camera module
Cable Clamp / Fixing Bracket XM01984 / XM02310 Mounting hardware for securing and guiding the cable inside the working head
ND-Series Working Head Assembly ND12A / ND36A / NDH08M NXT working heads compatible with the XH01230 cable
Alternate Camera Cable Models XH01391 / XH01231 Variant IPS camera cables for other head types or custom cable lengths

Notes

TheXH01230 is the standard cable for specific heads likeH12HS, V12, orND36A.
The2AGKHA series part numbers refer tomain vision boards that interface with the camera.
Alternative cables (e.g.,XH01391) may differ bylength, connector type, or shielding, so compatibility should be verified before substitution.

FUJIXH01230 NXT working head IPS camera cable 0











FAQ Guide – FUJI XH01230 NXT Working Head IPS Camera Cable



General Information

Q1: What is the FUJI XH01230 cable used for?

A:
The XH01230 is a dedicated IPS (Image Processing System) camera cable used in FUJI NXT series SMT placement heads. It transmits high-speed image data from the internal camera module to the processing board, supporting visual component recognition and alignment.



Q2: Which machines and heads are compatible with this cable?

A:

Compatible with FUJI NXT I / II / III platforms
Typically used in heads such as H12HS, V12, ND12A, ND36A
Not intended for older head models like H04/H08 unless otherwise specified



Functionality & Operation

Q3: What role does this cable play in the machine’s operation?

A:
It provides a critical data link between the IPS camera and the vision processing board, enabling the machine to analyze component positions, orientations, and shapes in real-time for precise pick-and-place operations.



Q4: Is this cable interchangeable with others?

A:
No. While other cables (e.g., XH01391 or XH01231) may look similar, they differ in length, connector layout, or head compatibility. Always verify part numbers before replacing.



Installation & Maintenance

Q5: Where is the cable installed?

A:
It is routed internally within the NXT working head, connecting the IPS camera module (usually near the nozzle or lens unit) to the image processing PCB or signal board inside the head.



Q6: Does the cable require calibration after replacement?

A:
Not typically. However, head alignment and vision calibration may be necessary if visual anomalies appear after replacement. Ensure connectors are seated properly.



Q7: What’s the expected service life of this cable?

A:
Designed for millions of dynamic bending cycles, the cable can typically last several years under normal operating conditions. Replace it if signs of signal loss, EMI noise, or visible damage appear.



Troubleshooting

Problem Possible Cause Solution
Blurry or missing vision image Loose or damaged camera cable Check XH01230 connectors; replace if worn
IPS camera not detected Cable not seated or broken internal wire Reconnect cable; check continuity
Head vision alignment errors EMI or signal degradation Use shielded original cable; inspect cable routing
Vision board shows error codes Camera link failure or short circuit Inspect both camera and cable for damage

Related Parts

Component Part Number Function
IPS Camera Cable XH01230 Main signal cable from camera to image processor
IPS Camera Module XH01052 / XH01191 Captures component image in the head
Vision Processing Board 2AGKHA000402, etc. Processes images sent via XH01230
Cable Bracket / Clamp XM01984 / XM02310 Secures cable inside head to prevent movement
Alternate Cable (if needed) XH01391 / XH01231 For other head types or cable length requirements

Best Practices

Use only genuine FUJI parts to avoid signal interference or connector mismatch
Do not over-bend or pinch the cable during installation
Periodically inspect cables in high-usage environments
Keep connectors clean, dry, and corrosion-free



Summary

The FUJI XH01230 IPS Camera Cable is a key component for high-speed image transfer in FUJI NXT heads. Maintaining its integrity is essential for accurate vision-guided placement. When replacing or maintaining this cable, always follow FUJI's handling guidelines to avoid head or image processing issues.
