FUJIUL06400 NXT ND36A nozzle exchange station

FUJIUL06400 NXT ND36A nozzle exchange station

  • BRAND
    FUJI
  • Model
    FUJIUL06400 NXT ND36A Nozzle Exchange Station
  • CAPACITY
    1009
  • Mounter Weight
    0.79kg
  • Mounter Size
    56
  • Supplier
    CNSMT
  • Condition
    New
  • Place of Origin
    Japan
  • Brand Name
    FUJI
  • Certification
    YAMAHA Vibration Vibration Fit YV YS
  • Model Number
    FUJIUL06400 NXT ND36A nozzle exchange station
  • Minimum Order Quantity
    1
  • Price
    negotiation
  • Packaging Details
    Woodenbox
  • Delivery Time
    1-2 work days
  • Payment Terms
    T/T,Western Union,paypal
  • Supply Ability
    10pcs/day

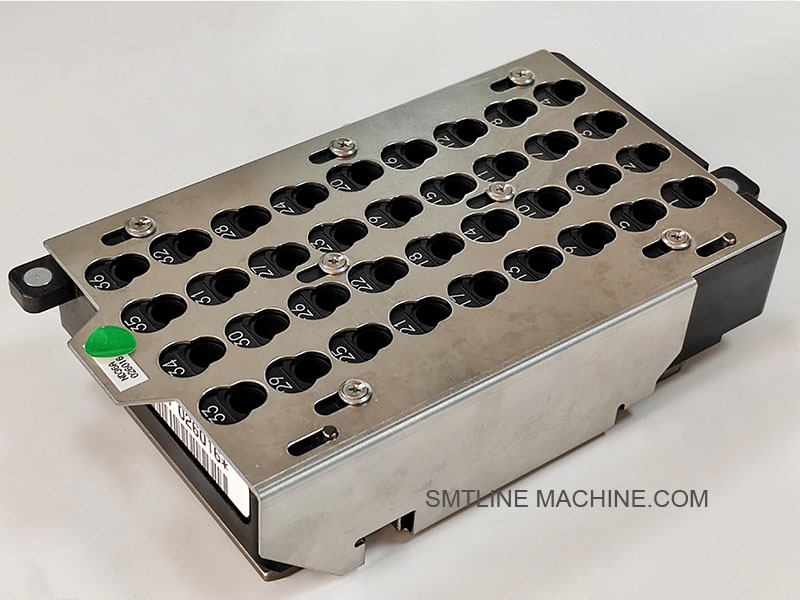

FUJIUL06400 NXT ND36A nozzle exchange station

FUJIUL06400 NXT ND36A nozzle exchange station

Our company has been in operation for 11 years and will definitely be your best choice with guaranteed quality and fast delivery



FUJI UL06400 NXT ND36A Nozzle Exchange Station – Product Description



Overview

The FUJI UL06400 is an advanced automatic nozzle exchange station designed specifically for use with FUJI NXT III pick-and-place machines equipped with the ND36A multi-purpose placement head. It enables seamless, high-speed nozzle changes during production, supporting a wide range of component sizes while ensuring accuracy and reducing downtime.



Key Features
Designed exclusively for use with the ND36A high-performance head
Supports automatic nozzle exchange for various nozzle types
Equipped with position-encoded tray slots for precise nozzle identification
Durable and stable structure, ideal for high-frequency, high-speed operation
Quick-swap tray design for fast maintenance and configuration
Helps maximize production flexibility and efficiency in multi-product environments



Compatible Equipment
FUJI NXT III SMT placement machines
Compatible only with ND36A placement heads
Not compatible with older heads like H08, H12, V12, or H24



Component Breakdown

Component Description
Nozzle Station Body (UL06400) Structural frame with guide rails, mounted inside the NXT III module
Nozzle Tray Module Holds multiple nozzles for automatic insertion/removal
Tray ID Encoding System Mechanically or sensor-based ID detection to identify nozzle positions
Protective Cover (Optional) Prevents dust and foreign matter from contaminating nozzle slots

Compatible Nozzles (Examples)

Nozzle Part Number Use Case
PN06551 For 0201 / 0402 chip components
PN06552 For QFP / BGA and medium-large ICs
PN06553 For custom or odd-shaped parts

> ND36A nozzles have unique shapes and ID mechanisms, and must be used with the UL06400 station.



Maintenance Recommendations
Clean trays weekly to ensure smooth nozzle insertion Inspect and secure ID pegs or detection mechanisms regularly If nozzle change errors occur, check tray alignment and system recognition status Replace damaged trays or alignment pins as needed



Summary

The FUJI UL06400 Nozzle Exchange Station is a mission-critical automation module for NXT III machines equipped with ND36A heads. By enabling precise and reliable automatic nozzle changes, it boosts operational uptime, minimizes manual intervention, and supports a highly flexible SMT production line.







Related Accessories – FUJI UL06400 Nozzle Exchange Station (ND36A Head)

Component Name Part Number (Example) Description
Nozzle Exchange Station Body UL06400 Main frame and base for the automatic nozzle exchange system
Nozzle Tray Unit UL06401 (typical) Tray used to hold multiple nozzles; compatible with ND36A head nozzles
Nozzle Identification Pegs UL06402 Coding pins for nozzle recognition (mechanical or sensor-assisted)
Tray Alignment Pins UL06403 Ensures precise tray positioning for accurate nozzle insertion/removal
Protective Cover / Shield UL06404 (optional) Dust-resistant cover to protect the nozzle tray area
Tray Locking Spring Set UL06405 Mechanical spring set to secure the tray inside the station
Tray Mounting Brackets / Screws UL06406 Hardware for securely attaching the tray to the station frame
Tray Detection Sensor (optional) UL06407 Optional optical or proximity sensor for detecting tray presence and ID status
Tray Guide Rail Assembly UL06408 Rail or channel system to slide trays in and out during replacement
ND36A Nozzles (common types) PN06551, PN06552, PN06553 Used for different component sizes (0201–odd-form)

Usage Notes:

Each UL06400 station supports multiple trays, which must be ND36A-compatible.
Nozzles must be genuine ND36A series types to ensure proper alignment and identification.
Accessories like tray ID pegs, locking springs, and alignment pins are essential for error-free operation.









FUJI UL06400 ND36A Nozzle Exchange Station – Related Part Numbers



Main Components

Component Name Part Number Description
Nozzle Exchange Station Body UL06400 Complete ND36A-compatible automatic nozzle exchange station unit
Nozzle Tray Unit UL06401 Tray for holding multiple ND36A nozzles
Nozzle ID Pegs / Code Pins UL06402 Mechanical ID system for identifying nozzle types in each tray slot
Tray Alignment Guide Pins UL06403 Ensures precise alignment of tray and head during nozzle change
Protective Cover / Dust Shield UL06404 Optional cover to prevent dust and debris from entering the tray area
Tray Locking Spring Set UL06405 Locks and secures the tray in place for stable nozzle exchange
Mounting Bracket / Screw Kit UL06406 Brackets and screws for mounting the exchange station to the machine frame
Tray Presence Detection Sensor UL06407 Optional sensor to detect tray presence or position status
Tray Slide Rail Assembly UL06408 Guides for inserting and removing trays smoothly

Compatible ND36A Nozzles (Examples)

Nozzle Type Part Number Application
Nozzle #1 PN06551 For 0201 / 0402 chip components
Nozzle #2 PN06552 For QFP / BGA / medium-sized ICs
Nozzle #3 PN06553 For custom or odd-shaped components
Nozzle #4 PN06554 For high-precision or special components

>  ND36A nozzles are mechanically unique and only compatible with the UL06400 station and ND36A heads.



Notes

All part numbers listed are original FUJI parts.
Custom tray setups are available depending on the mix of nozzles required.
Using genuine trays and nozzles ensures long-term compatibility and accurate placement.

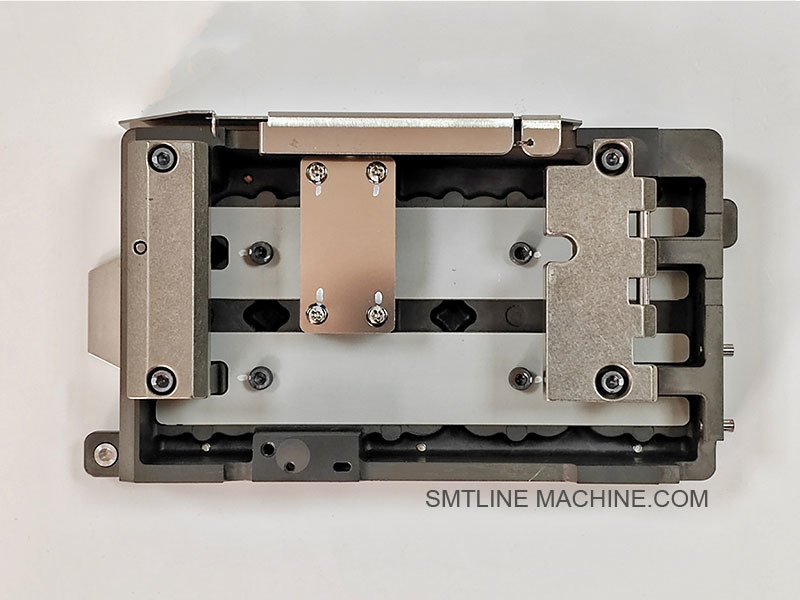

FUJIUL06400 NXT ND36A nozzle exchange station 0











FAQ Guide – FUJI UL06400 NXT ND36A Nozzle Exchange Station



General Overview

Q1: What is the FUJI UL06400 Nozzle Exchange Station used for?

A:
The UL06400 is a dedicated automatic nozzle exchange station designed for FUJI NXT III machines equipped with the ND36A placement head. It enables high-speed, hands-free swapping of different nozzle types during SMT production, improving throughput and flexibility.



Q2: Which machines and heads is it compatible with?

A:

Compatible machine: FUJI NXT III series
Compatible head: ND36A only
Not compatible with older heads like H08, H12, H24, or V12.



Functionality & Operation

Q3: How does the UL06400 station work?

A:
The ND36A head parks over the station during operation, drops off a used nozzle into an open slot, and picks up a new one based on job requirements. Tray slots are coded (via mechanical pins or sensors) for automatic nozzle type recognition.



Q4: Is the nozzle change process fully automatic?

A:
Yes. No manual intervention is required during production. The NXT system controls the nozzle exchange using onboard software logic.



Q5: How many nozzles can it hold?

A:
Each tray (UL06401) can hold multiple ND36A nozzles, depending on the configuration. Some systems use more than one tray to support complex production.



Q6: Can it handle different nozzle sizes and types?

A:
Yes. The ND36A head supports a wide range of nozzles—from 0201 chip nozzles to large odd-form types—and the UL06400 station accommodates all compatible ND36A nozzles.



Installation & Maintenance

Q7: Where is the UL06400 installed?

A:
It is mounted inside the FUJI NXT III machine, typically near the rear or side rail depending on the model layout.


Q8: Does the station require calibration?

A:
Yes. After installation or tray replacement, the system must be calibrated via FUJI’s software to align nozzle pick/drop positions accurately.



Q9: How often should the system be cleaned or maintained?

A:

Weekly: Clean trays and nozzle seats
Monthly: Inspect ID pins, guide rails, and locking springs
As needed: Replace damaged components like tray covers or mounting screws



Troubleshooting

Issue Possible Cause Solution
Nozzle not seated properly Misaligned tray, worn alignment pins Recalibrate and replace pins if needed
Nozzle ID not recognized Dirty or damaged ID pins Clean or replace UL06402 ID pegs
Nozzle jammed during exchange Tray debris, incorrect nozzle used Clean tray and verify nozzle compatibility
Alarm during exchange process Sensor or tray not properly detected Check tray mount and UL06407 sensor

Related Components

Component Part Number Function
Exchange Station Body UL06400 Main unit housing nozzle tray and guide
Nozzle Tray UL06401 Holds ND36A nozzles
Nozzle ID Peg Set UL06402 Tray slot recognition system
Tray Alignment Pins UL06403 Ensures accurate mechanical positioning
Tray Detection Sensor UL06407 Detects tray presence (optional)
ND36A Nozzles PN06551–PN06554 Nozzles for various component types

Best Practices

Always use genuine ND36A nozzles to ensure fit and recognition.
Keep trays clean and dry to prevent nozzle insertion errors.
Verify that tray part numbers (e.g., UL06401) match your machine's configuration.
Replace damaged or worn ID pins and alignment parts regularly.
Keep a spare tray ready to minimize downtime during changeover.



Conclusion

The FUJI UL06400 ND36A Nozzle Exchange Station is a key component for automated, high-speed SMT lines using FUJI NXT III machines. With its robust design and automatic functionality, it helps reduce operator workload, supports high mix production, and maintains consistent accuracy across nozzle types.
