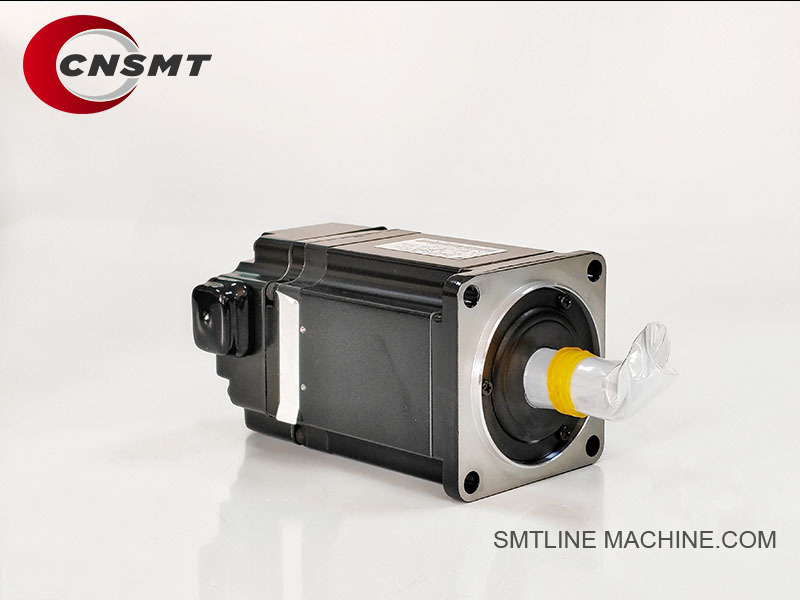

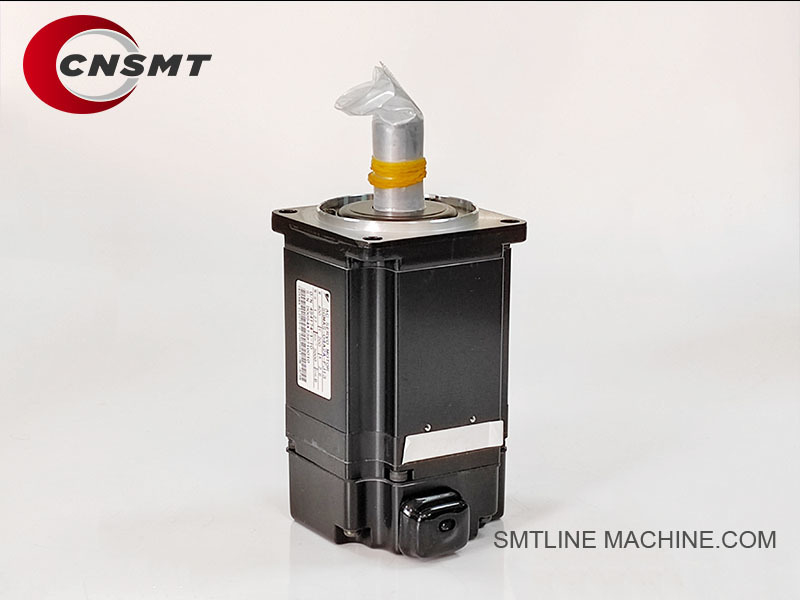

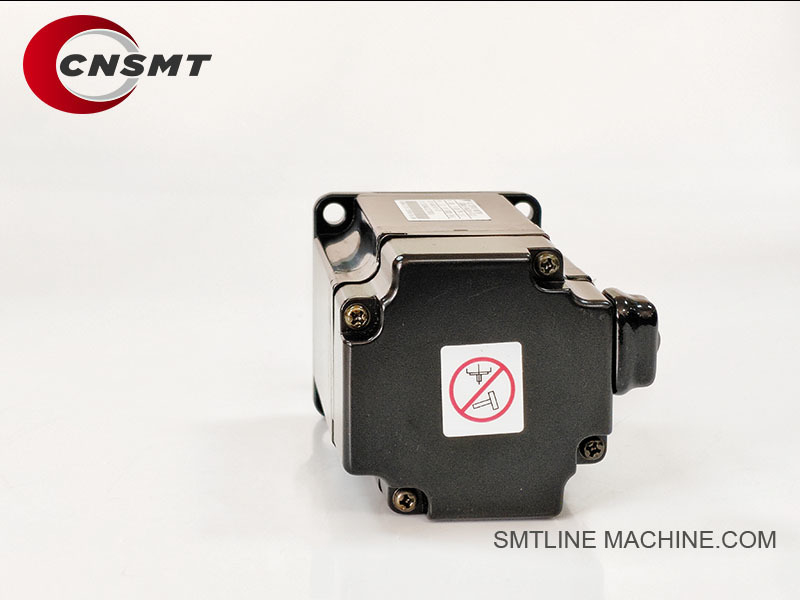

FUJI XM00221 NXT I Y-axis motor

FUJI XM00221 NXT I Y-axis motor

  • BRAND
    FUJI
  • Model
    FUJIXM00221 NXT I Y-axis Motor
  • CAPACITY
    1009
  • Mounter Weight
    0.79kg
  • Mounter Size
    56
  • Supplier
    CNSMT
  • Condition
    New
  • Place of Origin
    Japan
  • Brand Name
    FUJI
  • Certification
    YAMAHA Vibration Vibration Fit YV YS
  • Model Number
    FUJIXM00221 NXT I Y-axis motor
  • Minimum Order Quantity
    1
  • Price
    negotiation
  • Packaging Details
    Woodenbox
  • Delivery Time
    1-2 work days
  • Payment Terms
    T/T,Western Union,paypal
  • Supply Ability
    10pcs/day

FUJI XM00221 NXT I Y-axis motor

FUJI XM00221 NXT I Y-axis motor

Our company has been in operation for 11 years and will definitely be your best choice with guaranteed quality and fast delivery




FUJI XM00221 NXT I Y-axis Motor – Product Description


Overview

The FUJI XM00221 is a high-precision Y-axis drive motor designed for the FUJI NXT I series SMT pick-and-place machines. This motor is a key component responsible for driving the machine’s Y-axis (front-back) linear movement, enabling highly accurate positioning of the module’s work platform during component placement.


Key Features

Designed for Y-axis movement (front-back) on FUJI NXT I modules.
Provides high precision, fast response, and stable motion for SMT operations.
Works with FUJI’s servo control system and encoder for closed-loop control.
Highly durable, stable, and suitable for 24/7 continuous operation.
Modular design allows for easy replacement and maintenance within the NXT I platform.


Applicable Models

FUJI NXT I Series Modules (e.g., M3, M6)
Controls the Y-axis movement of the module’s platform.


Technical Specifications (Typical)

Item Specification
Model XM00221
Type AC Servo Motor / Linear Drive Motor
Motion Axis Y-axis (Front-back movement)
Control Closed-loop with encoder feedback
Voltage DC (Supplied by servo driver unit)
Cooling Natural cooling / Fan-assisted (if equipped)
Installation Mounted under the NXT module, connected via couplers or rails
Compatible Driver 2AGTHA000100 or matching FUJI servo driver

Main Functions

Drives the Y-axis linear movement of the NXT I module’s work platform.
Supports high-speed PCB positioning and front-back adjustments during placement.
Ensures precise, stable, and reliable SMT operations for high-volume manufacturing.


Related Accessories and Components

Component Name Part Number Description
Y-axis Drive Motor XM00221 Drives Y-axis movement for NXT I module
Y-axis Servo Driver Board 2AGTHA000100 Controls the Y-axis motor
Signal Cable XS02050 Communication line between motor and control board
Power Cable XS02051 Power supply for the motor
Encoder XS02410 Provides precise feedback for Y-axis positioning
Linear Rail Guide Assembly XS05120 Supports smooth Y-axis motion
Cooling Fan (if applicable) XH01431 Ensures proper cooling of driver board and motor
Vacuum/Air Tube Assembly XS04125 For vacuum systems if integrated in platform

Maintenance Recommendations

Regularly check the linear rails and guides for proper lubrication.
Inspect motor signal and power cables for wear or looseness.
Ensure the cooling fan (XH01431) is functioning properly.
Check for unusual noise, overheating, or positioning errors as signs of motor wear or failure.


Summary

The FUJI XM00221 Y-axis Motor is a crucial motion control component for the NXT I module, providing precise and stable Y-axis (front-back) positioning of the machine platform. Proper maintenance and timely replacement ensure high-speed, high-accuracy SMT production performance.

FUJI XM00221 NXT I Y-axis motor 0














FAQ Guide – FUJI XM00221 NXT I Y-axis Motor



General Information

Q1: What is the FUJI XM00221 motor used for?

A:
The FUJI XM00221 is a Y-axis linear drive motor used in FUJI NXT I modules. It controls the front-back movement of the placement head or platform, ensuring precise alignment of the PCB during component mounting.



Q2: Which FUJI machines is this motor compatible with?

A:
It is specifically designed for:

FUJI NXT I modules (e.g., M3, M6)
Not used in NXT II/III without mechanical adaptation.



Features & Functions

Q3: What axis does this motor control?

A:
It controls the Y-axis — the front-back linear movement of the placement module on the machine base.



Q4: Is the XM00221 motor a servo or stepper motor?

A:
It is an AC servo motor (or linear drive type, depending on version) controlled via a closed-loop system with encoder feedback for precise positioning.



Q5: What are its key advantages?

A:

High speed and precision.
Long operational life with low maintenance.
Seamless integration with FUJI NXT servo control systems.
Smooth linear motion, critical for accurate placement.



Installation & Calibration

Q6: How is the XM00221 installed in the machine?

A:

Mounted under the NXT module chassis.
Connected to the servo driver board (e.g., 2AGTHA000100).
Interfaces with signal cables (XS02050) and power cables (XS02051).
May connect to linear guide assemblies or ball screw tracks depending on configuration.



Q7: Is calibration needed after replacement?

A:
Yes. After replacing the motor:

Perform homing procedures via the machine control system.
Calibrate Y-axis travel limits to ensure accurate PCB alignment.



Common Issues & Troubleshooting

Q8: What are common signs of motor failure?

A:

Inconsistent Y-axis movement.
Positioning errors or misalignment of PCBs.
Servo alarms or feedback loss on the controller.
Motor overheating or abnormal noise during movement.
Vibration or jittering of the platform.



Q9: What might cause the XM00221 motor to fail?

A:

Excessive wear or bearing failure due to long-term use.
Electrical issues (short circuits, cable damage).
Overload from misaligned rails or mechanical blockage.
Failure of connected driver board or encoder.



Q10: How to test if the motor is faulty?

A:

Use multimeter to check for open/shorted windings.
Swap signal/power cables to isolate cable issues.
Test encoder feedback using diagnostic tools.
Observe for smooth manual rotation (if applicable).
Run servo diagnostics from the FUJI system interface.



Maintenance Advice

Q11: How often should this motor be maintained?

A:

Inspect every 6–12 months depending on usage.
Clean surrounding dust or debris from rails and fans.
Check for cable integrity and connection tightness.
Re-lubricate associated linear guides (XS05120).



Q12: When should the motor be replaced?

A:

After 3–5 years of continuous operation.
Immediately if positioning becomes unreliable or the motor fails self-diagnostics.
If overheating or vibration is persistent despite proper load and alignment.



Related Parts

Component Part Number Function
Y-axis Motor XM00221 Drives front-back platform movement
Servo Driver Board 2AGTHA000100 Controls power and signals to Y-axis motor
Motor Signal Cable XS02050 Transfers control signals
Motor Power Cable XS02051 Supplies power from control board
Y-axis Encoder XS02410 Position feedback for closed-loop control
Linear Guide / Rail Assembly XS05120 Supports smooth mechanical Y-axis movement
Cooling Fan for Driver Board XH01431 Prevents overheating of driver and motor

Best Practices

Always perform full homing and alignment after motor replacement.
Replace signal and power cables together if motor was exposed to electrical damage.
Keep cooling components operational to extend motor life.
Document motor runtime via machine logs for predictive maintenance.



Summary

The FUJI XM00221 Y-axis motor is a critical motion component for NXT I modules, ensuring precise and smooth front-back movement. Proper maintenance and periodic inspection are key to long-term machine stability and SMT quality.
