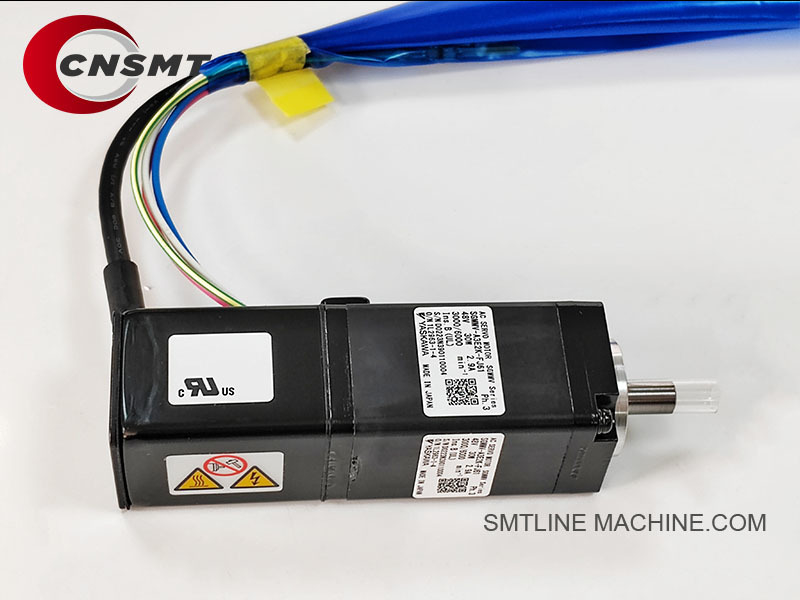

FUJIX M00804 2MGKHA093301 H12HS V12 working head motor

FUJIX M00804 2MGKHA093301 H12HS V12 working head motor

  • BRAND
    FUJI
  • Model
    FUJIXM00804 2MGKHA093301 H12HS V12 Working Head Motor
  • CAPACITY
    1009
  • Mounter Weight
    0.79kg
  • Mounter Size
    56
  • Supplier
    CNSMT
  • Condition
    New
  • Place of Origin
    Japan
  • Brand Name
    FUJI
  • Certification
    YAMAHA Vibration Vibration Fit YV YS
  • Model Number
    FUJIXM00804 2MGKHA093301 H12HS V12 working head motor
  • Minimum Order Quantity
    1
  • Price
    negotiation
  • Packaging Details
    Woodenbox
  • Delivery Time
    1-2 work days
  • Payment Terms
    T/T,Western Union,paypal
  • Supply Ability
    10pcs/day

FUJIX M00804 2MGKHA093301 H12HS V12 working head motor

FUJI XM00804 2MGKHA093301 H12HS V12 working head motor

Our company has been in operation for 11 years and will definitely be your best choice with guaranteed quality and fast delivery



FUJI XM00804 / 2MGKHA093301 H12HS V12 Working Head Motor – Product Description


Product Overview

The FUJI XM00804 (alternative PN: 2MGKHA093301) is a high-performance precision motor designed for the H12HS and V12 working heads of the FUJI NXT II and NXT III SMT machines. This motor is a critical drive component responsible for powering the core movement systems within the working head, including Z-axis lift (nozzle up/down) and/or Theta-axis rotation (nozzle angle positioning), depending on installation.


Key Features

High-speed, high-torque precision motor for SMT pick-and-place heads.
Supports Z-axis movement (nozzle lift) or Theta rotation (nozzle angle correction).
Engineered for high durability, stability, and smooth motion under continuous operation.
Optimized for fast response times and minimal vibration, enhancing placement accuracy.
Compatible with both H12HS and V12 high-speed working heads in FUJI NXT machines.


Machine Compatibility

FUJI NXT II Series
FUJI NXT III Series
Working Heads: H12HS, V12


Technical Specifications (Typical)

Item Specification
Model XM00804 / 2MGKHA093301
Motor Type Precision AC/Hybrid Motor (Stepper/Servo)*
Controlled Axis Z-axis (lift) or Theta-axis (rotation)
Voltage DC (Powered via head motherboard)
Motion Control Closed-loop via feedback to the motherboard
Cooling Natural air / Fan-assisted (XH01431)
Installation Mounted inside the V12 or H12HS working head



Main Applications

Drives the Z-axis lift mechanism for accurate nozzle up/down movement.
Drives the Theta rotation mechanism for precise nozzle angle control.
Works with the head control motherboard (PN: 2AGKHB008800) for synchronized operation.
Ensures high-speed, high-accuracy placement in SMT manufacturing lines.


Related Accessories & Components

Component Name Part Number Description
Motor (Z-axis/Theta) XM00804 / 2MGKHA093301 Main movement motor for nozzle control
Working Head Motherboard 2AGKHB008800 Controls the motor and head operations
Signal Cable for Motor XS02050 Transmits control signals to motor
Power Cable for Motor XS02051 Provides DC power to the motor
Encoder (Feedback, optional) XS02410 Provides position feedback for precise motion
Nozzle Shaft Sleeve XS01300 Guides nozzle movement along Z-axis
Coupling Assembly (Motor Link) XS02100 Connects motor shaft to mechanical drive
Mechanical Valve (Vacuum/Air) XS03760 Controls vacuum and air switching
Pressure Sensor XS00920 Monitors vacuum pressure for pickup detection
Cooling Fan for Head PCB XH01431 Maintains optimal temperature of motor & PCB



Maintenance Recommendations

Inspect motor connectors (XS02050, XS02051) regularly for wear or damage.
Ensure the cooling fan (XH01431) is clean and functional to prevent overheating.
Listen for unusual noises indicating bearing wear or internal mechanical issues.
Check coupling alignment (XS02100) to avoid mechanical strain.
Suggested replacement cycle: 3–5 years, depending on usage intensity.


Summary

The FUJI XM00804 / 2MGKHA093301 Working Head Motor is an essential actuator in the H12HS and V12 heads, providing precise Z-axis and Theta-axis movements. It directly impacts the placement accuracy and efficiency of FUJI NXT SMT machines. Regular maintenance ensures stable, long-term performance.











Related Accessories for FUJI XM00804 / 2MGKHA093301 Working Head Motor

Component Name Part Number (PN) Description
Working Head Motor (Z/Theta) XM00804 / 2MGKHA093301 Main motor for nozzle lift (Z-axis) or rotation (Theta)
Working Head Motherboard 2AGKHB008800 Controls the motor and overall head operation
Motor Signal Cable XS02050 Transmits control signals to the motor
Motor Power Cable XS02051 Supplies power to the motor
Theta / Z-axis Encoder (Optional) XS02410 Provides position feedback for precise movement
Nozzle Shaft Sleeve XS01300 Guides the nozzle shaft along Z-axis
Nozzle Coupling Assembly XS02100 Connects motor shaft to nozzle mechanism
Mechanical Valve Assembly XS03760 Controls vacuum and air for pick-up and release
Valve SPOOL (Core Valve Part) XS03764 Moving spool inside the pneumatic valve
Pressure Sensor XS00920 Detects vacuum pressure for pickup confirmation
Cooling Fan for Head Motherboard XH01431 Provides cooling to the motherboard and indirectly to motor
Vacuum Tube Assembly XS04125 Pneumatic tube for vacuum supply
Working Head Frame / Housing XS05020 Mechanical frame of the V12 or H12HS head

Recommended Spare Kits:

Motor Wiring Kit:
Includes XS02050 (signal cable) + XS02051 (power cable)

Encoder Kit (Optional if equipped):
XS02410 (Theta/Z-axis encoder)

Vacuum Valve Kit:
XS03760 (valve) + XS03764 (spool) + XS03765 (valve body)

Cooling Kit:
XH01431 (cooling fan) + fan filters (if applicable)


Important Note:

The XM00804 / 2MGKHA093301 motor functions closely with the 2AGKHB008800 motherboard, motor wiring, mechanical coupling, pneumatic components, and sensors.
For optimal machine uptime, it is recommended to maintain these related components together.





Related Part Numbers for FUJI XM00804 / 2MGKHA093301 Working Head Motor

Component Name Part Number (PN) Description
Working Head Motor (Z/Theta) XM00804 / 2MGKHA093301 Main drive motor for nozzle lift (Z) or rotation (Theta)
Working Head Motherboard 2AGKHB008800 Main PCB controlling motors, valves, and sensors
Signal Cable for Motor XS02050 Motor signal communication with motherboard
Power Cable for Motor XS02051 Provides DC power from motherboard to motor
Theta / Z Encoder (Optional) XS02410 Provides positional feedback for Z or Theta axis
Nozzle Shaft Sleeve XS01300 Guides the nozzle lift shaft
Nozzle Coupling Assembly XS02100 Mechanical link between motor and nozzle mechanism
Pneumatic Valve Assembly XS03760 Controls vacuum and air switching
Valve SPOOL (Core) XS03764 Internal moving spool inside the valve
Valve Housing / Body XS03765 Structural body of the pneumatic valve
Valve O-ring Kit XS03766 Sealing components for the valve
Valve Return Spring XS03767 Return spring for spool inside the valve
Pressure Sensor XS00920 Monitors vacuum pressure for component pickup
Cooling Fan for Head PCB XH01431 Cools the motherboard and indirectly the motor
Vacuum Tube Assembly XS04125 Connects nozzle vacuum line to valve and head
Working Head Frame / Housing XS05020 Complete mechanical housing for the H12HS/V12 head



Summary of Key Part Numbers:
Motor: XM00804 / 2MGKHA093301Control Board: 2AGKHB008800Motor Wiring: XS02050 (signal), XS02051 (power)Vacuum System: XS03760 (valve), XS00920 (sensor), XS03764 (spool)Cooling: XH01431 (fan)Mechanical Coupling: XS01300 (shaft sleeve), XS02100 (coupling)

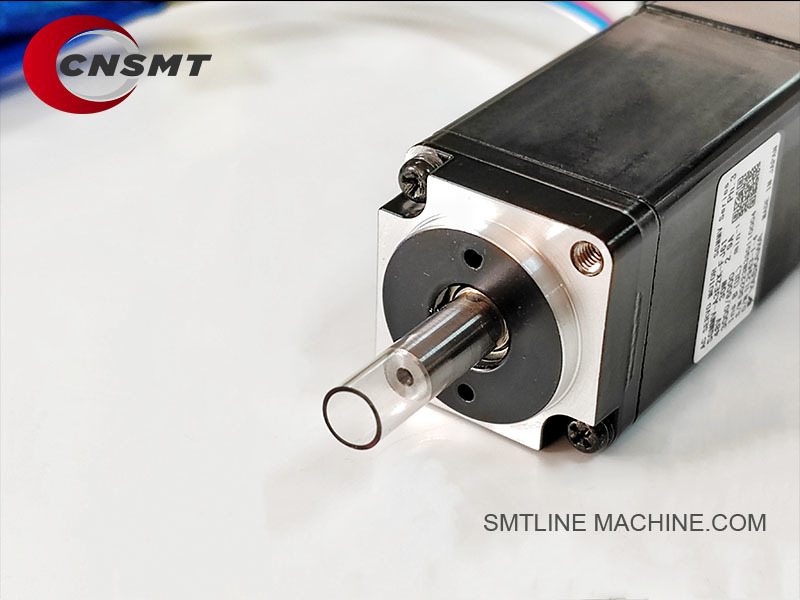

FUJIX M00804 2MGKHA093301 H12HS V12 working head motor 0











FAQ Guide – FUJI XM00804 / 2MGKHA093301 H12HS V12 Working Head Motor



General Information

Q1: What is the FUJI XM00804 / 2MGKHA093301 motor?
A:
It is a high-precision working head motor used in FUJI NXT H12HS and V12 heads, driving either the Z-axis (nozzle up/down) or the Theta-axis (nozzle rotation). It is essential for accurate component placement in SMT production.



Q2: What machines use this motor?
A:
FUJI NXT II series ✔ FUJI NXT III series ✔ Working heads: H12HS and V12



Functions & Features

Q3: What does this motor control?
A:
Z-axis: Nozzle lift up/down for component pick and placement. ✔ Theta-axis: Nozzle rotation for adjusting component angle.

It depends on where the motor is installed within the working head.



Q4: Is it the same motor for both Z and Theta?
A:
Yes, the same motor model (XM00804 / 2MGKHA093301) is used for both the Z-axis and Theta-axis, but the function depends on its position and wiring within the working head.



Q5: Is this motor a stepper or servo?
A:
It behaves as a high-precision hybrid motor, often configured as a stepper with encoder feedback, operating in a closed-loop control mode managed by the head motherboard (PN: 2AGKHB008800).



Installation & Calibration

Q6: How is the motor installed?
A:
Mounted directly inside the H12HS or V12 working head. Connected via:

Signal cable (XS02050)
Power cable (XS02051) Mechanically coupled using the nozzle shaft sleeve (XS01300) and coupling assembly (XS02100).



Q7: Is calibration needed after replacement?
A:
Yes:
Theta-axis: Requires angle zero-point alignment. Z-axis: Requires upper and lower travel limit calibration. The machine typically performs automatic homing during startup but manual checks are recommended after replacement.



Common Issues & Troubleshooting

Q8: Common symptoms of motor failure?
A:
No nozzle lift or rotation. Abnormal noise (grinding, clicking). Vibration or shaking during movement. Theta or Z-axis alarm on the machine. Loss of step, leading to misalignment. Overheating (check cooling fan XH01431).



Q9: What causes motor failures?
A:
Mechanical wear (bearing failure, coupling loosening). Electrical failure (coil damage, cable fault). Overheating due to failed cooling fan (XH01431). Vacuum system malfunction putting excess load on the motor.



Q10: How to diagnose the motor?
A:
Test continuity and resistance of motor windings. Swap signal/power cables (XS02050 / XS02051) to check for cable faults. Check motherboard outputs (2AGKHB008800). Manually rotate the shaft—should be smooth, not stiff. Inspect coupling (XS02100) for slippage or wear.


Maintenance Recommendations

Q11: How to maintain this motor?
A:
Keep the head and internal components dust-free. Check cables and connectors regularly for wear. Ensure cooling fan (XH01431) is clean and operational. Inspect mechanical couplings (XS02100) for proper alignment. Replace the motor at signs of overheating, noise, or loss of precision.



Q12: Recommended replacement cycle?
A:
Typically every 3–5 years, depending on usage intensity. High-volume 24/7 production may require earlier replacement.



Related Components

Component Part Number Description
Working Head Motor (Z/Theta) XM00804 / 2MGKHA093301 Main motor for nozzle lift or rotation
Working Head Motherboard 2AGKHB008800 Controls motor and head functions
Signal Cable XS02050 Motor control signal line
Power Cable XS02051 Motor DC power supply line
Encoder (Optional) XS02410 Provides positional feedback for Z/Theta
Nozzle Shaft Sleeve XS01300 Guides nozzle lift shaft
Coupling Assembly XS02100 Connects motor to nozzle mechanism
Pneumatic Valve Assembly XS03760 Controls vacuum/air for nozzle
Valve SPOOL XS03764 Internal spool for pneumatic valve
Pressure Sensor XS00920 Monitors vacuum for component pickup confirmation
Cooling Fan XH01431 Cools motherboard and assists motor heat dissipation

Ordering Advice
Confirm whether you need the motor for Z-axis or Theta-axis.
Check whether cables (XS02050, XS02051) are also required
Consider replacing related components like the cooling fan (XH01431) and coupling (XS02100) for optimal performance.



Summary

The FUJI XM00804 / 2MGKHA093301 Working Head Motor is a critical component for ensuring precise movement in V12 and H12HS working heads. Maintaining its optimal performance is essential for achieving high placement accuracy and machine uptime in SMT production.
