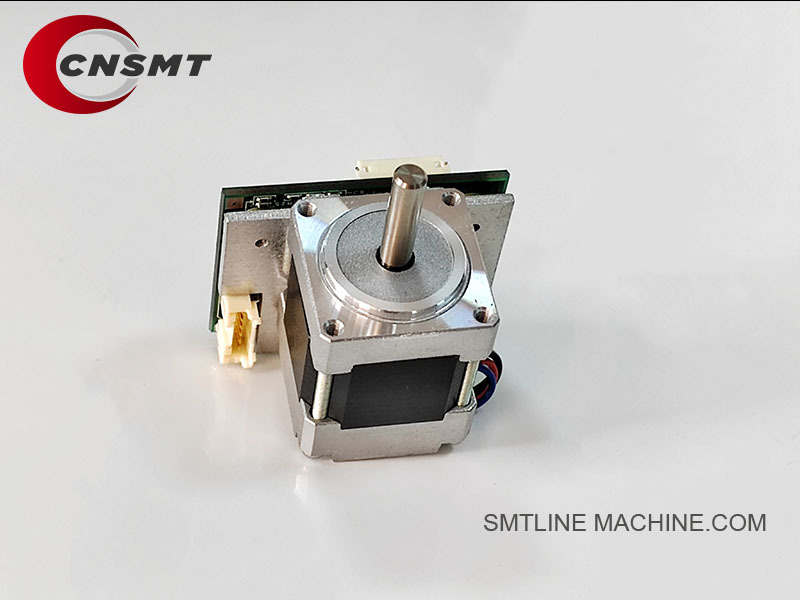

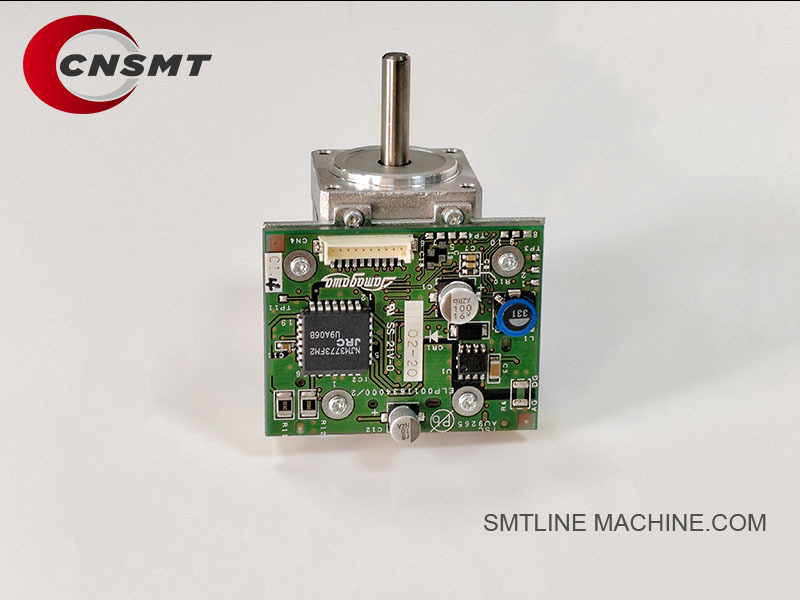

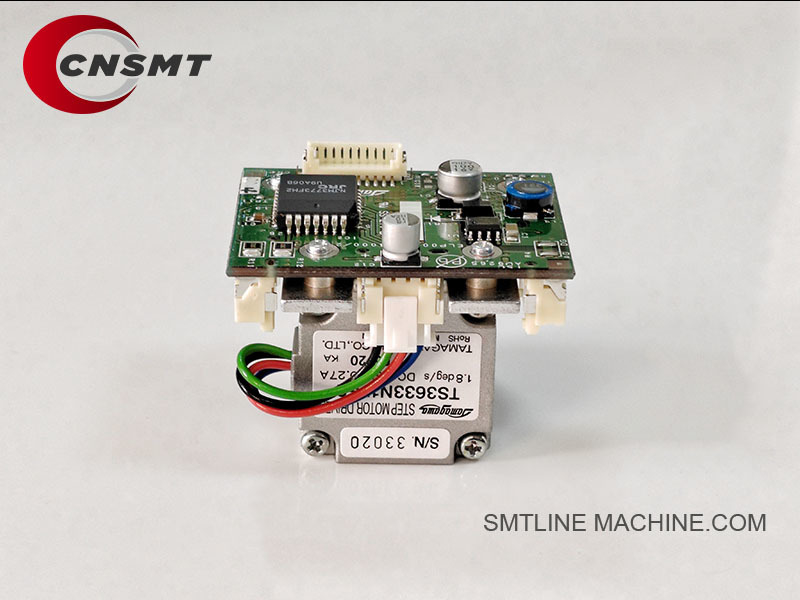

FUJI XM01171 V12 H12HS working head stepper motor

FUJI XM01171 V12 H12HS working head stepper motor

  • BRAND
    FUJI
  • Model
    FUJIXM01171 V12 H12HS Working Head Stepper Motor
  • CAPACITY
    1009
  • Mounter Weight
    0.79kg
  • Mounter Size
    56
  • Supplier
    CNSMT
  • Condition
    New
  • Place of Origin
    Japan
  • Brand Name
    FUJI
  • Certification
    YAMAHA Vibration Vibration Fit YV YS
  • Model Number
    FUJIXM01171 V12 H12HS working head stepper motor
  • Minimum Order Quantity
    1
  • Price
    negotiation
  • Packaging Details
    Woodenbox
  • Delivery Time
    1-2 work days
  • Payment Terms
    T/T,Western Union,paypal
  • Supply Ability
    10pcs/day

FUJI XM01171 V12 H12HS working head stepper motor

FUJI XM01171 V12 H12HS working head stepper motor

Our company has been in operation for 11 years and will definitely be your best choice with guaranteed quality and fast delivery





FUJI XM01171 V12 / H12HS Working Head Stepper Motor – Product Description



Product Overview

TheFUJI XM01171 stepper motor is a high-precision motor used in theV12 and H12HS working heads of FUJI NXT series pick-and-place machines. This motor is responsible for driving critical movement functions within the head, such asZ-axis (nozzle lift) orTheta-axis (nozzle rotation), ensuring high-speed, high-accuracy component placement.



Key Features

Provides precise control for either theZ-axis (up/down) orTheta-axis (rotation).
High-resolution step accuracy for micron-level precision.
Fast response time suitable for high-speed SMT operations.
High durability, designed for continuous operation in demanding environments.
Fully compatible withFUJI NXT V12 and H12HS working heads.



Machine Compatibility

FUJI NXT II Series
FUJI NXT III Series
Working Heads:V12,H12HS



Technical Specifications (Typical)

Item Specification
Model XM01171
Motor Type High-precision Stepper Motor
Controlled Axis Z-axis (lift) or Theta-axis (rotation)
Rated Voltage DC (powered via head motherboard)
Step Angle Micro-step resolution
Cooling Method Natural air cooling or fan-assisted
Mounting Modular, installed inside V12/H12HS head

Main Applications

Drives thenozzle lift (Z-axis) for accurate component pick and placement height.
Controlsnozzle rotation (Theta-axis) for component angle correction.
Works in synchronization with theH12HS motherboard (PN: 2AGKHB008800) for precise motion control.
Supports high-speed and stable operations critical for SMT production.



Related Parts & Accessories

Component Part Number Description
Z-axis Stepper Motor XM01171 Controls nozzle up/down movement
Theta Rotation Motor XM01171 Controls nozzle rotation
Motor Signal Cable XS02050 Connects motor to the head motherboard
Motor Power Cable XS02051 Provides DC power to the motor
Encoder (optional) XS02410 Provides position feedback
Working Head Motherboard 2AGKHB008800 Controls motor operations
Cooling Fan XH01431 Maintains optimal operating temperature

Maintenance Recommendations

Regularly inspect motor noise for signs of wear or abnormal operation.
Check for loose couplings or shaft misalignment.
Ensure the motor environment is free of dust and flux contamination.
Replace the motor if symptoms like vibration, missed steps, or jamming occur.
Typical lifespan:3–5 years, depending on machine usage intensity.



Summary

TheFUJI XM01171 Stepper Motor is a vital motion control component for theV12 and H12HS working heads. It ensures high-speed, high-accuracy nozzle movement, directly impacting placement quality and production efficiency. Proper maintenance and timely replacement are crucial for optimal machine performance.




Related Accessories for FUJI XM01171 Stepper Motor

Component Name Part Number Description
Stepper Motor (Z-axis / Theta) XM01171 Main motor for nozzle lift or rotation
Working Head Motherboard 2AGKHB008800 Controls motor operation, signals, and communication
Motor Signal Cable XS02050 Transmits control signals from motherboard to motor
Motor Power Cable XS02051 Supplies DC power to the motor
Theta Axis Encoder (Optional) XS02410 Provides rotational position feedback
Z-axis Encoder (Optional) XS02410 Provides lift position feedback
Nozzle Shaft Sleeve XS01300 Guides nozzle movement along the Z-axis
Nozzle Coupling Assembly XS02100 Mechanical linkage between motor and nozzle shaft
Mechanical Valve Assembly XS03760 Controls vacuum and air for nozzle
Valve SPOOL (Internal) XS03764 Moving part inside mechanical valve
Pressure Sensor XS00920 Monitors vacuum status for component pickup detection
Cooling Fan for Head PCB XH01431 Cools motherboard and indirectly helps motor cooling
Vacuum Tube Assembly XS04125 Pneumatic tube connection for vacuum control
Working Head Housing Assembly XS05020 Structural frame for mounting motor and components

Recommended Spare Kits:

Motor Cable Kit: XS02050 (signal) + XS02051 (power)
Encoder Kit: XS02410 (for Z or Theta axis feedback)
Valve Maintenance Kit: XS03760 (assembly) + XS03764 (spool)
Cooling Kit: XH01431 (fan) + fan filter if applicable

Note:

TheXM01171 stepper motor works together with the motherboard (2AGKHB008800) and depends on signal and power cables.
For full functionality, it often interfaces with position encoders and pneumatic systems like vacuum valves and pressure sensors




Related Part Numbers for FUJI XM01171 Stepper Motor

Component Name Part Number (PN) Description
Stepper Motor (Z / Theta) XM01171 Main stepper motor for nozzle lift (Z) or rotation (Theta)
Working Head Motherboard 2AGKHB008800 Main PCB controlling motors, sensors, and valves
Signal Cable for Motor XS02050 Motor signal communication with motherboard
Power Cable for Motor XS02051 Provides power from motherboard to motor
Encoder (Z / Theta Feedback) XS02410 Provides position feedback to the system
Nozzle Shaft Sleeve XS01300 Guides the nozzle lift shaft
Nozzle Coupling Assembly XS02100 Connects stepper motor to nozzle mechanical drive
Pressure Sensor XS00920 Detects vacuum for component pickup confirmation
Pneumatic Valve Assembly XS03760 Controls vacuum and air switching
Valve SPOOL (Internal) XS03764 Sliding element inside the pneumatic valve
Valve Housing / Body XS03765 Main structure of the pneumatic valve
Valve O-ring Kit XS03766 Sealing O-rings for valve maintenance
Valve Return Spring XS03767 Spring for the spool in the valve
Cooling Fan XH01431 Cools motherboard and indirectly assists motor cooling
Vacuum Tube Assembly XS04125 Connects nozzle vacuum to valve system
Working Head Housing XS05020 Main housing for V12 or H12HS head assembly



Summary of Related PNs:

These part numbers are directly associated with the XM01171 stepper motor, including electrical components (cables, motherboard), mechanical linkages (shaft sleeves, couplings), pneumatic systems (valves, sensors), and structural components (housing, fans).



Note:

TheXM01171 stepper motor works together with the motherboard (2AGKHB008800) and depends on signal and power cables.
For full functionality, it often interfaces with position encoders and pneumatic systems like vacuum valves and pressure sensors.

FUJI XM01171 V12 H12HS working head stepper motor 0










FAQ Guide – FUJI XM01171 V12 / H12HS Working Head Stepper Motor



General Information

Q1: What is the FUJI XM01171 Stepper Motor?

A:
The XM01171 is a high-precision stepper motor used in the V12 and H12HS working heads of FUJI NXT pick-and-place machines. It drives either the Z-axis (nozzle up/down) or Theta-axis (nozzle rotation) depending on installation.



Q2: Which FUJI machines use this motor?

A:

FUJI NXT II Series
FUJI NXT III Series
Working heads: V12, H12HS



Functions & Features

Q3: What is the function of this motor?

A:

Controls Z-axis movement (nozzle lift) or Theta-axis rotation.
Works with the motherboard (PN: 2AGKHB008800) to execute precise placement tasks.
Ensures accurate movement for high-speed SMT production.



Q4: Is it the same motor for Z-axis and Theta-axis?

A:
Yes. The XM01171 stepper motor is used for both Z-axis (up/down) and Theta-axis (rotation), but the control function depends on its installed position and wiring.



Installation & Setup

Q5: How is the XM01171 installed?

A:

Directly mounted inside the working head frame.
Connected via signal cable (XS02050) and power cable (XS02051) to the motherboard.
Coupled mechanically to either the nozzle lift shaft (Z) or rotation drive (Theta) using the coupling assembly (XS02100).



Q6: Is calibration needed after replacement?

A:

Mechanical alignment is needed to ensure the correct coupling position.
The machine performs automatic homing and calibration on startup.
For Theta, ensure zero-angle reference; for Z, verify lift limits.



Troubleshooting

Q7: What are common failure symptoms?

A:

Nozzle does not lift or rotate.
Motor vibration or noise.
Loss of step (misalignment of pick/place).
Communication error from head controller (if motor short-circuits or stalls).
Z-axis or Theta-axis alarm on machine panel.



Q8: What causes stepper motor failure?

A:

Bearing wear over time.
Electrical faults (coil damage, cable issues).
Overheating due to cooling failure (Fan XH01431 not working).
Mechanical blockage in the shaft or coupling.



Q9: How to diagnose motor failure?

A:

Swap motor cable to test if it's cable-related.
Check the 2AGKHB008800 motherboard for output signal.
Test resistance of motor windings (should not be open or short).
Physically rotate the motor shaft—if stiff or stuck, motor failure is likely.



Maintenance Tips

Q10: How to maintain the XM01171 motor?

A:

Keep the working head clean from dust and flux.
Check that the cooling fan (XH01431) is operating.
Inspect motor connectors (XS02050, XS02051) for wear.
Lubricate mechanical linkages if recommended in FUJI’s manual.
Replace if motor shows signs of noise, heat, or missed steps.



Q11: What is the recommended replacement interval?

A:

Typically every 3–5 years, depending on machine utilization.
Replace sooner if running 24/7 under high-speed production.



Related Components

Part Name Part Number Description
Stepper Motor (Z / Theta) XM01171 Controls nozzle lift or rotation
Working Head Motherboard 2AGKHB008800 Controls the motor and head functions
Signal Cable XS02050 Motor control signal line
Power Cable XS02051 Power supply cable for the motor
Encoder (Optional) XS02410 Feedback for Z or Theta position
Nozzle Shaft Sleeve XS01300 Supports nozzle lift movement
Nozzle Coupling Assembly XS02100 Connects motor to nozzle shaft
Cooling Fan XH01431 Keeps motherboard and motor cool

Ordering Tips

Always confirm if the motor is for Z-axis or Theta-axis in your head configuration.
Order together with cables (XS02050, XS02051) if damaged or aged.
Pair with motherboard (2AGKHB008800) if both are old or showing errors.



Summary

The FUJI XM01171 Stepper Motor is a critical motion component for the V12 and H12HS working heads. It ensures precise nozzle movement for SMT production. Regular maintenance and timely replacement are essential to avoid downtime and maintain high placement accuracy.
