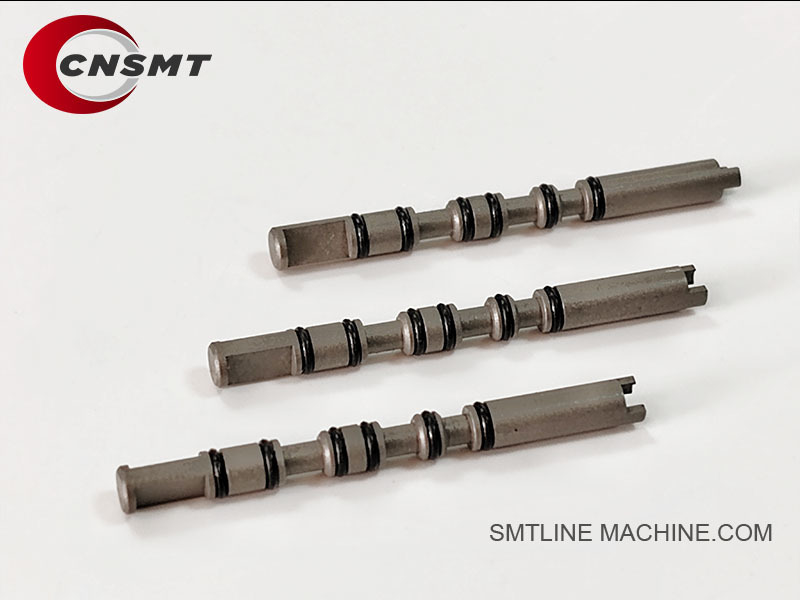

FUJI XS03764 V12 working head mechanical valve SPOOL

FUJI XS03764 V12 working head mechanical valve SPOOL

  • BRAND
    FUJI
  • Model
    FUJI XS03764 V12 Working Head Mechanical Valve SPOOL
  • CAPACITY
    1009
  • Mounter Weight
    0.79kg
  • Mounter Size
    56
  • Supplier
    CNSMT
  • Condition
    New
  • Place of Origin
    Japan
  • Brand Name
    FUJI
  • Certification
    YAMAHA Vibration Vibration Fit YV YS
  • Model Number
    FUJI XS03764 V12 working head mechanical valve SPOOL
  • Minimum Order Quantity
    1
  • Price
    negotiation
  • Packaging Details
    Woodenbox
  • Delivery Time
    1-2 work days
  • Payment Terms
    T/T,Western Union,paypal
  • Supply Ability
    10pcs/day

FUJI XS03764 V12 working head mechanical valve SPOOL

FUJI XS03764 V12 working head mechanical valve SPOOL

Our company has been in operation for 11 years and will definitely be your best choice with guaranteed quality and fast delivery




Product Description

Product Name: FUJI V12 Working Head Mechanical Valve SPOOL
Part Number: XS03764
Application: FUJI NXT Series V12 Working Head



Function and Purpose

Core Function:
The XS03764 SPOOL is the core mechanical component inside the pneumatic valve of the FUJI V12 working head. It controls the precise switching between vacuum (pick) and blow (place) operations for the nozzle.

Installation Location:
Installed inside the V12 head’s pneumatic valve block, it regulates air pathways by shifting between vacuum and air pressure states.

Performance Features:

Fast switching response
Excellent air-tightness and wear resistance
Ensures precise vacuum control for nozzles, improving placement accuracy



Technical Specifications (Reference)

Item Specification
Part Number XS03764
Part Name Mechanical Valve SPOOL
Material High-strength wear-resistant alloy (e.g., stainless steel, hardened steel)
Installation Location Inside FUJI NXT V12 Head mechanical valve
Medium Clean, dry compressed air
Control Function Vacuum ↔ Blow air switching for nozzles
Working Environment High-speed, high-frequency SMT placement operations

Applicable Machines

FUJI NXT Series:

NXT V12 Head
Compatible with NXT III, NXT V series machines using the V12 head

---

Key Advantages

OEM-grade precision manufacturing
High durability and excellent sealing performance
Fast response for high-speed SMT production
Easy to install and replace, reducing downtime



Recommended Related Parts

Component Part Number Description
Valve SPOOL (This Product) XS03764 Mechanical spool core for pneumatic valve
Valve Body XS03765 Mates with the spool to form the valve
O-Ring / Seal Kit XS03766 Sealing parts for the valve body
Return Spring XS03767 Provides restoring force for the spool
Vacuum Pressure Sensor XS00920 Detects vacuum status for the nozzle
V12 Working Head Main PCB 2AGKHA000402 Controls the mechanical valve operation

Supply Information

Stock Status: Regular stock, available immediately
Lead Time: 1–5 working days (depends on quantity)
Condition: 100% new original or high-quality replacement



Available Support:

Technical datasheets and exploded assembly diagrams
Full BOM for the V12 head pneumatic system
Supplier quotations and global shipping options









---

Related Accessories for XS03764 SPOOL (V12 Working Head Mechanical Valve)

Component Name Part Number Description
Valve Spool (Main) XS03764 Core mechanical spool for air switching
Valve Body XS03765 Housing for the spool, forms the complete valve
O-Ring Seal Kit XS03766 Seals for the spool and valve body, prevents leaks
Return Spring XS03767 Provides force to reset the spool position
Pneumatic Solenoid Valve (Main) XS03760 Drives the air pressure for the valve mechanism
Vacuum Pressure Sensor XS00920 Monitors nozzle vacuum status
Air Filter Unit XS04120 Filters compressed air for the pneumatic system
Working Head Main PCB 2AGKHA000402 Controls the mechanical valve and air switching
Nozzle Shaft Assembly XS00802 / XS00803 Mechanically linked to the valve for movement
Vacuum Generator Module XS00500 Supplies vacuum to the working head
Air Supply Line Tubing XS02050 Pneumatic tubing that connects valves to head



Supporting Mechanical Components

Component Part Number Example Function
Valve Mounting Bracket XS03770 Fixes the valve assembly inside the V12 head
Air Pressure Regulator XS04122 Maintains constant air pressure for the valve
Head Cover Plate XS01001 Protection and alignment of internal parts
Z-Axis Shaft Seal XS03790 Seals for air passages in moving Z-axis parts

Recommended Spare Kits

XS03764 (Spool) + XS03765 (Valve Body) + XS03766 (Seal Kit) + XS03767 (Spring) — Complete valve rebuild kit
XS03764 + XS00920 (Vacuum Sensor) + 2AGKHA000402 (Main PCB) — For full pneumatic and sensor replacement



Applicable Machines

FUJI NXT V12 Working Head
Compatible with NXT II, III, and V models using V12 heads



Support Available:

Full BOM (Bill of Materials) for V12 valve assembly
Assembly drawings, diagrams, and maintenance guides
Global stock sourcing and supplier quotations









XS03764 SPOOL – Related Part Numbers List

Component Name Part Number Description
Valve SPOOL (Main Component) XS03764 Core mechanical spool for the V12 head pneumatic valve
Valve Body XS03765 Housing for the spool; forms the complete valve
O-Ring Seal Kit XS03766 Sealing rings to ensure airtight operation
Return Spring XS03767 Provides reset force to the spool
Pneumatic Solenoid Valve XS03760 Controls the air switch, drives the valve mechanism
Vacuum Pressure Sensor XS00920 Monitors vacuum status of the nozzle
V12 Working Head Main PCB 2AGKHA000402 Controls the valve switching and pneumatic system
Vacuum Generator XS00500 Generates vacuum for nozzle suction
Nozzle Shaft Assembly XS00802 / XS00803 Nozzle moving shaft, connected with the air control
Air Filter Unit XS04120 Filters compressed air for clean operation
Air Pressure Regulator XS04122 Stabilizes air pressure inside the working head
Valve Mounting Bracket XS03770 Holds the valve assembly in place inside the V12 head
Air Supply Tubing XS02050 Air tubing connecting valves, vacuum, and actuators
Z-Axis Shaft Seal XS03790 Dynamic seal for pneumatic Z-axis movement



Core Recommended Part Kits

Kit Function Part Numbers
Complete Valve Body + Spool Set XS03764 + XS03765 + XS03766 + XS03767
Vacuum Monitoring and Switching Control Kit XS03764 + XS00920 + 2AGKHA000402
Full Pneumatic Drive and Air Management Kit XS03760 + XS04120 + XS04122 + XS02050

Applicable Machines

FUJI NXT V12 Working Head
Compatible with NXT II, NXT III, NXT V models using V12 heads

---

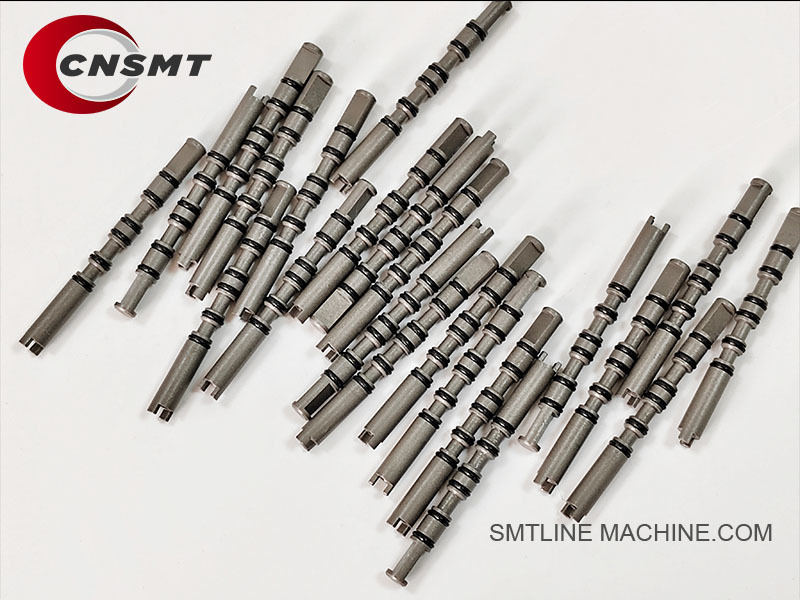

FUJI XS03764 V12 working head mechanical valve SPOOL 0





---



FAQ Guide – FUJI XS03764 V12 Working Head Mechanical Valve SPOOL



General Information

Q1: What is XS03764 Mechanical Valve SPOOL used for?

A:
The XS03764 SPOOL is a critical internal component of the mechanical valve assembly inside the FUJI NXT V12 working head. It is responsible for controlling the vacuum and air pressure switching, enabling accurate pick-and-place nozzle operation.



Function & Working Principle

Q2: What is the function of the mechanical valve spool?

A:

Controls pneumatic flow inside the V12 head.
Switches between vacuum (for picking components) and positive pressure or air blow (for component release or nozzle cleaning).
Ensures precise and reliable head pneumatic performance.



Machine Compatibility

Q3: Which machines is XS03764 compatible with?

A:

FUJI NXT II
FUJI NXT III
FUJI NXT V series (with V12 working head)



Installation & Replacement

Q4: When should the XS03764 spool be replaced?

A:

Air leaks during pick or placement.
Vacuum not holding properly.
Positive air not functioning correctly.
Nozzle misfires or stuck.
Maintenance cycle indicates wear (typically after 12–24 months, depending on usage).

Q5: How to replace the spool?

A:

1. Power off and depressurize the machine.
2. Open the V12 head’s pneumatic valve assembly.
3. Remove the valve body and access the spool.
4. Check the condition of the spool (XS03764), valve body (XS03765), and O-rings (XS03766).
5. Install the new spool, lubricate with appropriate pneumatic grease.
6. Reassemble the valve, check for air leaks.



Common Issues & Troubleshooting

Q6: What are common failure symptoms?

A:

Vacuum loss on specific nozzles.
Slow air release or stuck nozzle movements.
Persistent air blowing when idle.
Increased pick errors or placement failures.

Q7: What causes spool failure?

A:

Long-term wear of the spool surface.
Dirt, flux residue, or oil contamination inside the valve.
O-ring degradation leading to leaks.
Incorrect lubrication or lack of maintenance.


Maintenance Tips

Q8: How to maintain the mechanical valve spool?

A:

Clean the valve assembly regularly (recommended every 3–6 months).
Replace spool and seals preventively after 12–24 months or upon wear signs.
Use only approved pneumatic grease (FUJI recommended types).
Keep the compressed air supply dry and clean with proper filters.



Related Parts



Part Name Part Number Description
Mechanical Valve SPOOL XS03764 The spool moving part inside the valve
Mechanical Valve Body XS03765 Valve housing that holds the spool
O-Ring / Seal Kit XS03766 Seals to prevent air leakage
Valve Return Spring XS03767 Ensures spool returns to neutral position
Complete Valve Assembly XS03760 Full valve assembly (includes spool and body)
Vacuum Pressure Sensor XS00920 Detects vacuum status for the head
V12 Working Head Motherboard 2AGKHA000402 Controls signals including for pneumatic valv

Procurement Advice

XS03764 is a consumable part; FUJI recommends keeping it in stock for maintenance.
Usually replaced together with XS03765 (Valve Body) and XS03766 (O-ring Kit).
Available via FUJI official distributors and SMT spare parts suppliers.



Conclusion

The XS03764 V12 Working Head Mechanical Valve SPOOL is crucial for stable vacuum and air switching in the FUJI NXT V12 head. Regular maintenance and timely replacement prevent vacuum loss, nozzle errors, and improve placement reliability.
