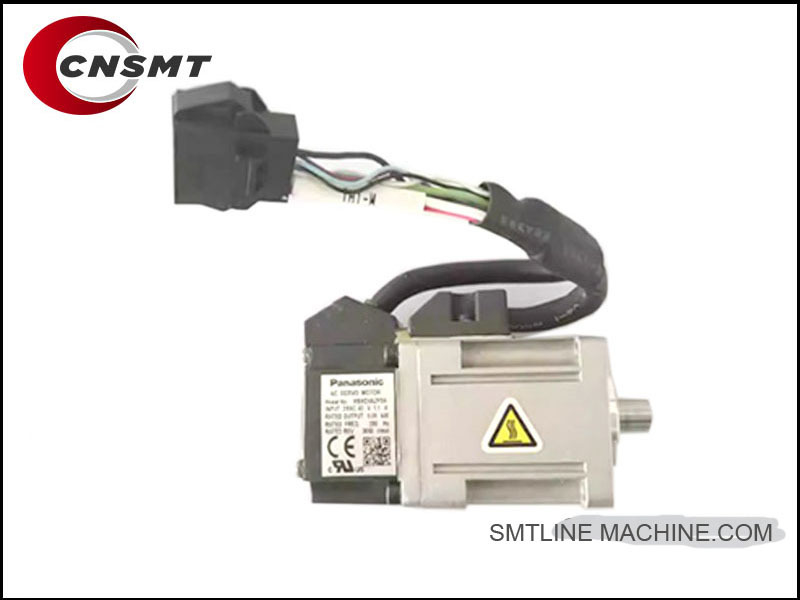

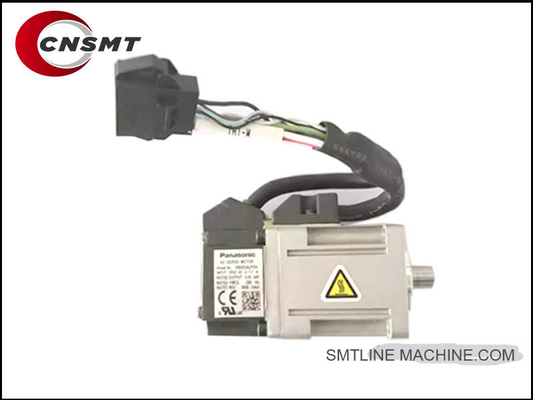

J90833613A Samsung SCM1 SMT Machine Z-axis Motor MSMD5AZP2A AC SERVO MOTOR

J90833613A Samsung SCM1 SMT Machine Z-axis Motor MSMD5AZP2A AC SERVO MOTOR

Our company has been in operation for 11 years and will definitely be your best choice with guaranteed quality and fast delivery

Product Overview

Product Name: Samsung SCM1 Pick-and-Place Machine Z-Axis AC Servo Motor
Part Number: J90833613A
Motor Model: MSMD5AZP2A (Panasonic AC Servo Motor)
Application: Z-axis drive for Samsung SCM1 Series SMT Pick-and-Place Machines

Key Features

Original Panasonic Motor: High-performance AC servo motor used in Samsung SMT equipment.
High Precision Control: Dedicated for the Z-axis (up/down movement), offering fast response and precise motion for pick-and-place operations.
Durable & Reliable: Industrial-grade motor designed for continuous high-speed operation with excellent heat resistance and anti-vibration properties.
Closed-Loop Feedback: Built-in incremental encoder provides real-time position feedback, ensuring accurate Z-axis positioning.
Seamless Compatibility: Fully compatible with Samsung SCM1 series machines, plug-and-play without modifications.

Technical Specifications (Reference)

Applications

Z-axis movement for SMT pick-and-place machines
Provides smooth and accurate vertical motion for component picking and placement
Supports high-speed, high-precision SMT assembly

Advantages

High reliability and industrial-grade durability
Fast response and precise positioning for Z-axis operations
Low maintenance, long service life
Easy installation with OEM compatibility

Supply Information

Stock Status: Available / On-demand
Lead Time: 1–5 working days
Warranty: 90 days to 1 year (depending on supplier)

---

---

Related Accessories for J90833613A / MSMD5AZP2A Z-Axis Servo Motor

Optional Maintenance Parts

Recommended Spare Kit Combination

Z-Axis Motor (J90833613A) + Driver (MADHT1507) + Cables (Power + Encoder)
Motor Coupling + Ball Screw Assembly + Guide Rail
Limit Sensor + Home Sensor + Cooling Fan for full motion system maintenance

Compatible Machines

Samsung SCM1 Series SMT Pick-and-Place Machines
Also found in some Samsung/Hanwha SM Series with similar Z-axis structures

Related Part Numbers for J90833613A Z-Axis Servo Motor

Additional Related Parts

Core Spare Parts Summary

Applicable Machines

Samsung SCM1 SMT Pick-and-Place Machine
Also compatible with selected Samsung SM Series models sharing the same Z-axis design

---

---

FAQ guide FUJI J90833613A Samsung SCM1 SMT Machine Z-axis Motor MSMD5AZP2A AC SERVO MOTOR

FAQ Guide – Samsung J90833613A SCM1 Z-Axis AC Servo Motor (MSMD5AZP2A)

General Information

Q1: What is J90833613A / MSMD5AZP2A Servo Motor used for?

A:
This is the Z-axis AC servo motor for the Samsung SCM1 SMT machine (also used in some Hanwha SMT models). It controls the up-and-down movement of the placement head, ensuring precise pick-and-place operations during SMT assembly.

Specifications & Compatibility

Q2: Which machines are compatible with this servo motor?

A:

Samsung SCM1 SMT machine
Some models of Hanwha SM series machines that share similar hardware architecture

Q3: What are the technical specifications?

Installation & Setup

Q4: How to install the J90833613A servo motor?

A:

Disconnect machine power.
Remove the Z-axis motor cover.
Disconnect encoder cable and power cable.
Unscrew the motor from the flange.
Replace with the new motor, connect the encoder and power cable.
Secure motor flange bolts, check shaft coupling alignment.

Q5: Is calibration needed after installation?

A:

No mechanical calibration is usually required if installed correctly.
Software side may require Z-axis origin reset or re-homing procedure after replacement.

Troubleshooting

Q6: Common failure symptoms?

A:

Z-axis unable to move up/down.
Frequent Z-axis servo alarms.
Z-axis position error or missing components.
Motor overheating or vibration noise.

Q7: Common causes of failure?

A:

Encoder failure.
Cable connection loose or broken.
Motor internal coil burnout.
Excessive mechanical load or misalignment.

Maintenance

Q8: How often should maintenance be performed?

A:

Check motor condition every 6–12 months during preventive maintenance.
Inspect encoder cables, power cables, and shaft couplings regularly.

Q9: Maintenance tips?

A:

Keep the motor and encoder clean from dust and flux residue.
Verify tightness of motor flange bolts.
Check for unusual noise or heat buildup.

Related Parts & Accessories

Applicable Machines

Samsung SCM1 SMT Machine
Select models from Hanwha SM series

Ordering & Support

Available from Samsung/Hanwha authorized distributors.
Check compatibility with machine serial number before ordering.
Full support for wiring diagrams, installation manuals, and spare part lists.

Conclusion

The J90833613A / MSMD5AZP2A Z-Axis AC Servo Motor is a key component for vertical head movement in Samsung SCM1 machines. Timely maintenance and replacement help ensure smooth production and accurate placement performance.
