Product Description

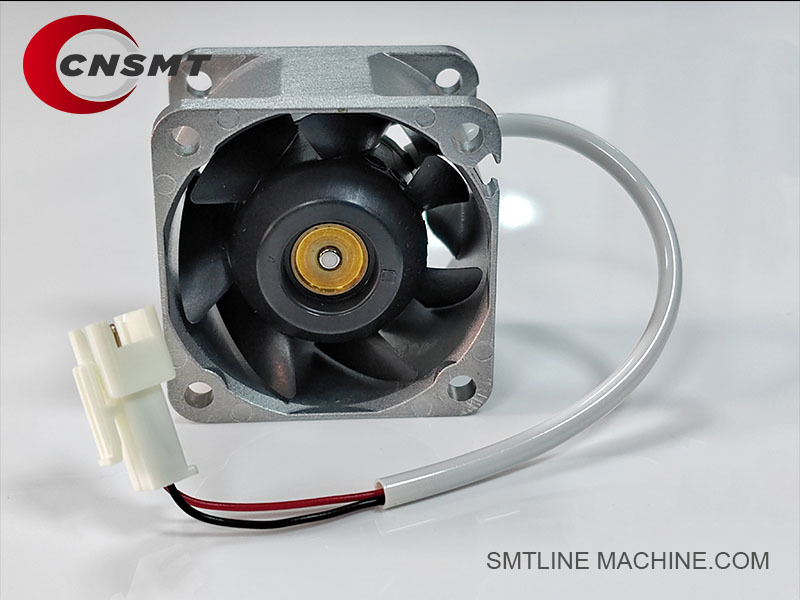

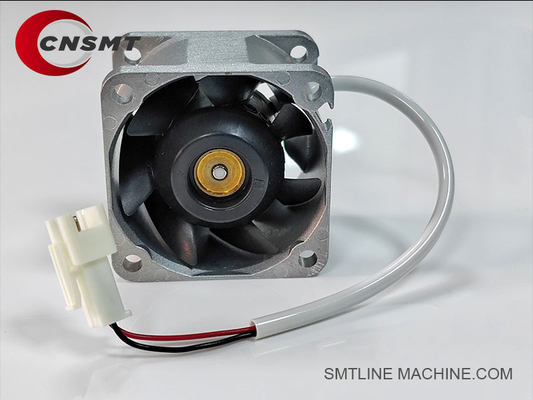

Name: FUJI NXT Axis Cooling Fan
Part Number: XH01431 (also often paired with XH01432)
Function: Cooling fan for the Y-axis (or equivalent axis) on FUJI NXT series SMT pick-and-place machines

KFeatures

OEM-Grade Quality: Genuine FUJI part engineered for precise cooling requirements of NXT Y-axis motor assemblies .

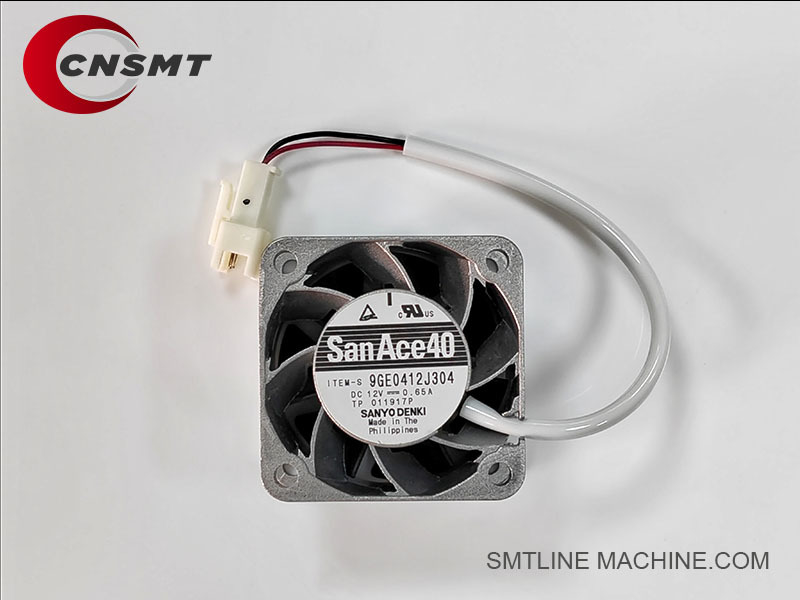

Electrical Specs: 12 V DC, approximately 0.65 A current draw, ensuring sufficient airflow without excessive noise .
Robust Build: High-speed, high-precision fan, typically used on NXT I, II, and III machines
Condition & Support: Supplied as brand-new OEM or thoroughly tested units, with warranty support and quality inspection


Compatibility

Fully compatible with FUJI NXT series placement machines, including:

NXT I / II / III, along with corresponding Y-axis motor assemblies.

Logistics & Availability

Stock Status: Typically available from Chinese or global SMT spare parts suppliers
Lead Time: Generally ships within 1–7 days; MOQ often just 1 piece
Pricing Range: Commonly listed at USD $20–30 or around ¥ — depending on supplier and quantity .

Summary Table

FUJI XH01431 NXT Fan – Related Accessories List

Typical Fan-Related Maintenance Accessories

Recommended Spare Kit Combination

XH01431 Fan + Mounting Bracket + Dust Cover – Basic cooling set
Y-Axis Servo Motor + Driver Board + Cooling Fan – Complete cooling for motion system
Temperature Sensor + Thermal Relay – Enables intelligent fan control based on temperature

Compatible Machines

FUJI NXT Series: NXT I / II / III / V
Applicable for Y-axis motor cooling, driver boards, and control cabinet heat management

Core Accessory Summary Table

FUJI XH01431 NXT Cooling Fan – Related Part Numbers

Extended Related Parts

Key Spare Part Numbers Summary

Optional Spare Kit Recommendation

XH01431 Fan + Cover + Cable + Holder — Standard cooling unit
Y-Axis Motor + Driver + Cooling Fan — Full axis heat protection kit
Temperature Sensor + Thermal Relay — For automatic fan control

FAQ guide FUJI XH01431 NXT fan

Here’s a professional FAQ Guide for the FUJI XH01431 NXT Fan commonly used in FUJI NXT SMT machines:

FAQ Guide – FUJI XH01431 NXT Fan

General Information

Q1: What is the XH01431 fan used for?

A: The XH01431 is a cooling fan used in FUJI NXT series SMT machines, specifically for cooling critical components such as the Yaxis servo motor, driver boards, control boards, and electrical cabinets. It prevents overheating during highspeed operations.

Specifications and Compatibility

Q2: What machines are compatible with the XH01431 fan?

A:

FUJI NXT I / II / III / V series
Mainly used for Yaxis motor cooling, servo driver boards, and sometimes for control cabinets.

Q3: What are the technical specifications of the XH01431 fan?

A:

Q4: Are there compatible or alternative part numbers?

A: Yes. Common alternates include:

XH01432 – Compatible fan with minor specification differences
XH00500 – Larger cabinet cooling fan for some NXT systems

Installation & Replacement

Q5: How do I install the XH01431 fan?

A:

Disconnect machine power.
Remove the cover where the fan is located (Yaxis area or driver cabinet).
Unscrew the mounting bracket or clips.
Disconnect the fan’s power cable.
Replace with the new XH01431 fan, connect the cable, and secure it in place.

Q6: Is the fan plugandplay?

A: Yes, if using the original FUJI fan. Ensure the connector matches; no rewiring is needed if using the correct part.

Troubleshooting

Q7: What are signs the XH01431 fan is failing?

A:

Unusual noise (grinding, rattling)
Low or no airflow
Overheating warnings on the servo motor or control board
Fan error codes in the NXT system diagnostics

Q8: What happens if the fan fails?

A:

Yaxis motor or driver board may overheat.
Machine may trigger thermal shutdown or servo errors.
Can lead to premature failure of critical electronic components.

Maintenance

Q9: How often should I check or replace the fan?

A:

Inspect during every major maintenance cycle (~3–6 months).
Typical fan lifespan: 12–24 months depending on usage and environment.

Q10: Is there any preventative maintenance?

A:

Clean the fan and dust filters regularly.
Check for vibration or noise.
Replace dust filters or covers (XH01431Cover) to maintain airflow.

Related Parts

Ordering & Support

Q11: Is the XH01431 fan readily available?

A: Yes, it is a common spare part for FUJI NXT machines and is usually stocked by FUJI authorized distributors and SMT parts suppliers.

Q12: Can I use thirdparty fans?

A: Not recommended. Thirdparty fans may have different airflow, voltage, or connector specifications, leading to reduced cooling efficiency or compatibility issues.
