YAMAHA Vibration Vibration Fit YV YS Series Vibration Fit Three Tube Five Tube Vibration Fit

YAMAHA Vibration Vibration Fit YV YS Series Vibration Fit Three Tube Five Tube Vibration Fit

Our company has been in operation for 11 years and will definitely be your best choice with guaranteed quality and fast delivery

Product Description

Product Name:

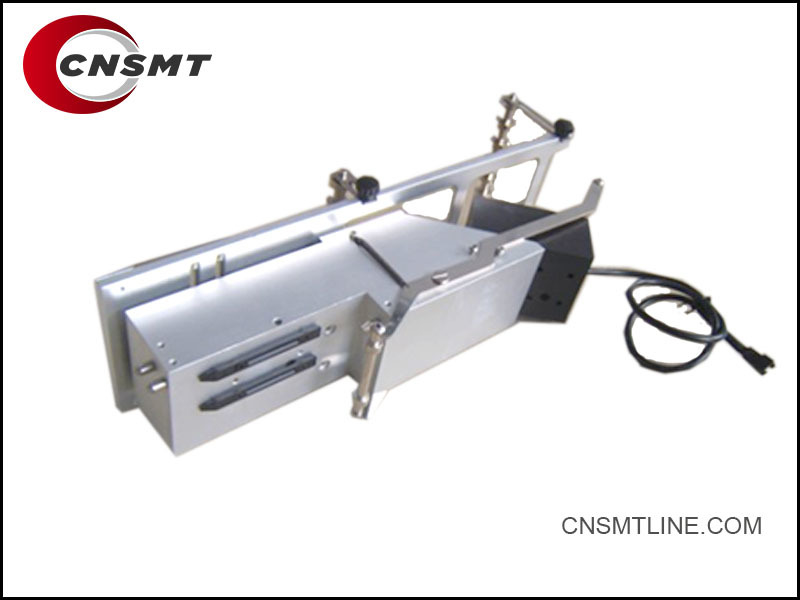

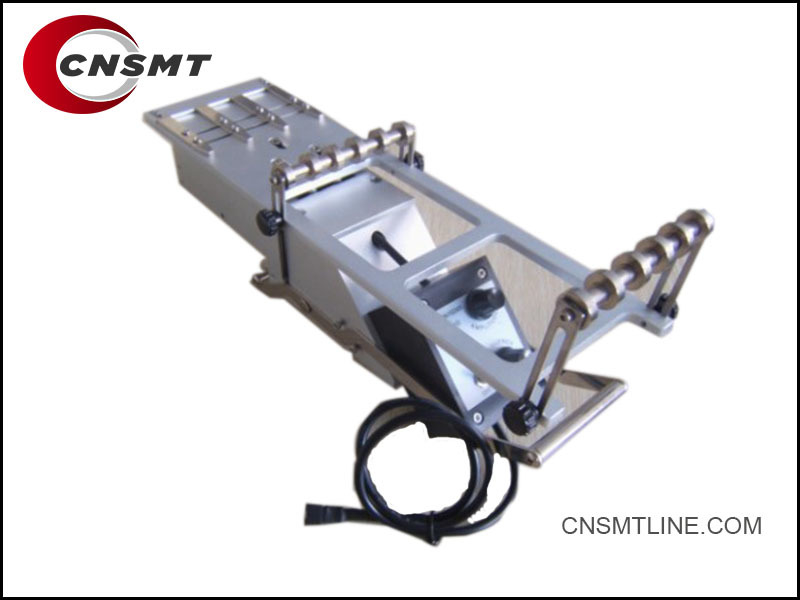

YAMAHA Vibration Feeder (Three Tube / Five Tube)

Applicable Models:

YAMAHA YV Series, YS Series SMT Machines

---

Product Overview

The YAMAHA Vibration Feeder is an auxiliary feeding device used in surface-mount technology (SMT) production lines. It is designed for supplying non-tape packaged components such as bulk components, odd-shaped components, or components in tubes.

---

Features

Multi-Tube Configuration:

Available in Three-Tube (3-Tube) or Five-Tube (5-Tube) designs.
Allows simultaneous feeding of multiple component types.

Precise Vibration Control:

Adjustable vibration strength and frequency.
Ensures smooth and stable component delivery.

High Compatibility:

Fully compatible with YAMAHA YV Series (YV100X, YV100XTG, etc.) and YS Series (YS12, YS24, YS88, etc.) SMT pick-and-place machines.

Flexible Component Feeding:

Suitable for tube-type components, odd-shaped parts, connectors, and bulk materials.

Plug-and-Play:

Simple installation; can be quickly connected to the feeder slot of the machine.

---

Technical Specifications

| Parameter | Description |
| ----------------- | ------------------------------------ |
| Feeder Type | Vibration Tube Feeder |
| Configuration | Three-Tube / Five-Tube options |
| Power Supply | DC 24V (from SMT machine) |
| Compatible Models | YAMAHA YV series, YS series |
| Vibration Control | Adjustable amplitude and frequency |
| Material | Steel frame with anti-static coating |
| Component Types | Tube components, odd-form components |

---

Advantages

Efficient feeding for components unsuitable for tape reels.
Reduces manual placement for odd components.
High durability and stable vibration for long-term production.
Easy maintenance and quick setup.

---

Common Part Numbers

| Model | Description |
| ----------------- | ---------------------------------------------------------------------------------------------- |
| Yamaha 3-Tube | Vibration Feeder for 3 tubes |
| Yamaha 5-Tube | Vibration Feeder for 5 tubes |
| Alternate P/N | Sometimes referred to as "YV Tube Feeder", "YS Tube Feeder", or "Yamaha Vibration Tube Feeder" |

---

Application Scenarios

Small batch SMT production
Prototyping lines
Odd-form component handling
Non-standard packaging (e.g., connectors, pins, LEDs in tubes)

Main Part Numbers – Vibration Feeder

| Feeder Type | Part Number | Description |
| ----------------- | ----------------- | ------------------------------------------ |
| 3-Tube Feeder | KHJ-MC200-000 | Vibration Feeder – 3 Tube (YV / YS Series) |
| 5-Tube Feeder | KHJ-MC400-000 | Vibration Feeder – 5 Tube (YV / YS Series) |

---

Related Parts & Accessories

| Item | Part Number | Description |
| ------------------------ | ----------------- | ---------------------------------------------------- |
| Vibration Controller | KHJ-MC21C-00 | Controls vibration amplitude and frequency |
| Feeder Power Cable | KHJ-MC300-000 | Power cable for vibration feeder |
| Vibration Feeder Bracket | KHJ-MC500-000 | Mounting bracket for vibration feeder |
| Vibration Motor Assembly | KHJ-MC310-000 | Vibration motor for Yamaha vibration feeder |
| Tube Holder | KHJ-MC600-000 | Holder for component tubes (3-tube or 5-tube models) |
| Signal Control Cable | KHJ-MC700-000 | Signal line connecting feeder to machine |

---

Compatible Machine Models

YV Series: YV100X, YV100XTG, YV88, YV112
YS Series: YS12, YS24, YS88, YS100, YS100F

---

Summary of Key Part Numbers

| Part Number | Description |
| ----------------- | ------------------------ |
| KHJ-MC200-000 | 3-Tube Vibration Feeder |
| KHJ-MC400-000 | 5-Tube Vibration Feeder |
| KHJ-MC21C-00 | Vibration Controller |
| KHJ-MC310-000 | Vibration Motor Assembly |
| KHJ-MC500-000 | Bracket/Mounting Kit |
| KHJ-MC600-000 | Tube Holder |
| KHJ-MC700-000 | Signal Cable |

Related Accessories and Spare Parts

| Accessory/Part | Part Number | Description |
| --------------------------------------- | -------------------- | ----------------------------------------------- |
| Vibration Controller | KHJ-MC21C-00 | Adjusts vibration amplitude and frequency |
| Vibration Motor Unit | KHJ-MC310-000 | Drives vibration for component feeding |
| Power Cable | KHJ-MC300-000 | Feeder power supply cable |
| Signal Cable | KHJ-MC700-000 | Control signal cable from machine to feeder |
| Mounting Bracket Set | KHJ-MC500-000 | Fixture for mounting feeder to machine platform |
| Tube Holder – 3 Tube | KHJ-MC600-000-3T | Holds component tubes (for 3-Tube model) |
| Tube Holder – 5 Tube | KHJ-MC600-000-5T | Holds component tubes (for 5-Tube model) |
| Tube Stopper | N/A (custom) | Stops components at tube exit (rubber or metal) |
| Anti-static Pad | Generic | Prevents static damage to sensitive components |
| Rubber Feet / Vibration Damping Pad | Generic | Reduces noise and mechanical vibration |
| Vibration Spring Set | Internal component | Maintains balanced vibration (wear part) |
| Controller Knob / Dial | Part of KHJ-MC21C-00 | Controls vibration intensity manually |

---

Wear Parts (Consumables)

Vibration Springs – Fatigue over time, needs replacement.
Vibration Motor Bearings – If noise increases or efficiency drops.
Tube Holders / Clamps – Wear with frequent tube changes.
Rubber Pads / Shock Absorbers – For stable operation over long periods.

---

Common Replacement Scenarios

Motor failure → Replace KHJ-MC310-000 (Motor Assembly).
Vibration weak or unstable → Check/replace KHJ-MC21C-00 (Controller) and springs.
Tube holder broken or worn → Replace with KHJ-MC600-000-3T or -5T.
Signal issues → Replace KHJ-MC700-000 (Signal Cable).

---

Compatibility

Fits all YV Series (YV100X, YV88, YV112, YV100XTG).
Fits all YS Series (YS12, YS24, YS88, YS100, YS100F).

---

Summary BOM Example

| Main Feeder | KHJ-MC200-000 (3-Tube) / KHJ-MC400-000 (5-Tube) |
| ------------------------ | ----------------------------------------------- |
| Controller | KHJ-MC21C-00 |
| Motor | KHJ-MC310-000 |
| Power Cable | KHJ-MC300-000 |
| Signal Cable | KHJ-MC700-000 |
| Mounting Bracket | KHJ-MC500-000 |
| Tube Holder (3 / 5 Tube) | KHJ-MC600-000-3T / -5T |

---
