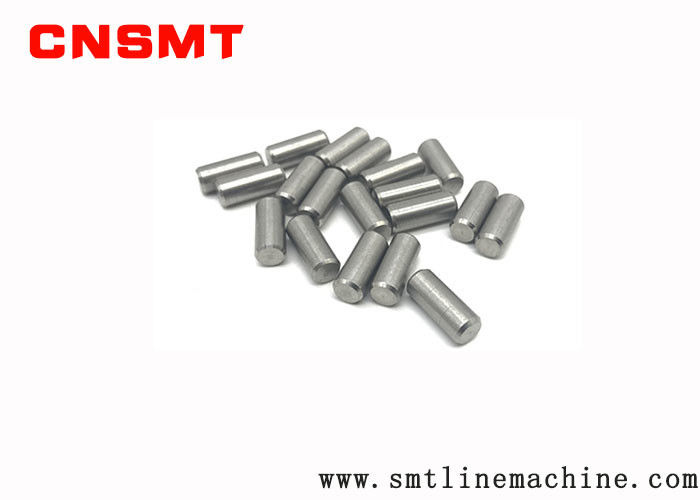

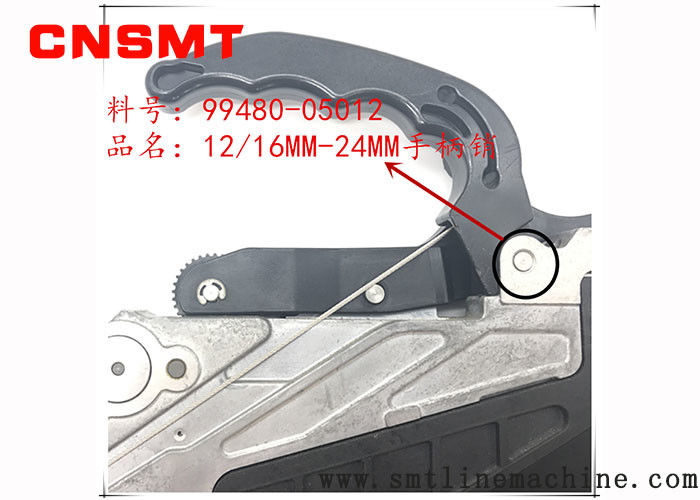

CNSMT 99480-05012, SS 12/16MM handle fixing pin, Yamaha electric feeder accessories 24MM
CNSMT 99480-05012, SS 12/16MM handle fixing pin, Yamaha electric feeder accessories 24MM
Specification:
| KHJ-MC110-00 MOTOR,FEED 1 |
| 2-1 KHJ-MC110-01 MOTOR,FEED 1 Different connector (2011/4/13) NG |
| 3 KHJ-MC102-00 COVER,FEEDER SIDE 1 1 |
| 4 KHJ-MC10C-00 SEAL,MAIN LABEL 1 *Attention |
| 5 KHJ-MC10E-00 SCREW,FLAT HEXLOBE 8 |
| 6 KHJ-MC134-00 GEAR,IDLE F1 1 |
| 7 KHJ-MC135-00 GEAR,IDLE F2 1 |
| 8 KHJ-MC136-01 GEAR,IDLE F3 1 |
| 9 KHJ-MC137-00 GEAR,IDLE F4 1 |
| 10 KHJ-MC138-00 GEAR,DRIVEN 1 |
| 12 KHJ-MC13C-00 PLATE,PUSHER GEAR 1 |
| 13 KHJ-MC13D-00 SPRING,PUSHER PLATE 3 |
| 14 KHJ-MC13F-00 SCREW,STAD 2 |
| 15 KHJ-MC161-01 BOX,TOP TAPE 1 Fig 1 |
| 15-1 KHJ-MC161-02 BOX,TOP TAPE 1 Fig 2 (2008/5/14) NG |
| 15-2 KHJ-MC161-03 BOX,TOP TAPE 1 (2013/10/11) NG |
| 17 KHJ-MC166-00 BLOCK,P/O TOOTH 1 1 |
| 17-1 KHJ-MC166-01 BLOCK,P/O TOOTH 1 1 (2008/4/25) NG |
| 17-2 KHJ-MC166-02 BLOCK,P/O TOOTH 1 1 (2008/11/14) NG |
| 18 KHJ-MC16F-00 SCREW,FLAT HEAD TAP. 6 |
| 19 KHJ-MC16J-00 SCREW,FLAT HEAD 2 |
| 20 KHJ-MC16U-00 TAIL COVER ASSY. 1 Can not be sold |
| 21 KHJ-MC106-00 PLATE,UNDER 1 |
| 22 90166-02JA03 SCREW,PAN HEAD 2 |
| 23 91317-03006 BOLT HEX.SOCKET HEAD 3 |
| 23-1 KHJ-MC11T-00 BOLT,LOCK S/H 3 (2011/4/22) OK |
| 24 91317-03008 BOLT HEX.SOCKET HEAD 2 |
| 24-1 91312-03010 BOLT HEX.SOCKET HEAD 2 (2008/4/11) OK |
| 25 98707-03006 SCREW,FLAT HEAD 3 |
| 26 KHJ-MC16W-00 PLATE,P/O TOOTH 1 1 (2008/4/11) |
| 27 90112-2AJ006 BOLT HEX.SOCKET HEAD 2 (2008/4/25) |
| 28 KHJ-MC16U-S0 PARTS, TAIL COVER 1 *Attention |
| 29 KHJ-MC162-S0 PARTS, BOX COVER 1 *Attention (2008/7/18) NG |
| 30 KHJ-MC16Y-00 TOP TAPE BOX COMP. 1 With Magnet |
| 31 KHJ-MC16K-00 POLY WASHER 0.13 1 (2011/6/13) |
| 31-1 KLJ-MC1F2-00 WAVE WASHER T.C. 1 (2013/10/11) NG |
| 32 KHJ-MC1FB-00 SHIM,0.3 |
| KHJ-MC10W-00, YSM20 placement machine FEEDER accessories, YAMAHA electric feeder accessories |
| KHJ-MC16U-S0, YS24 Mounter Electric Feeder Accessories, YS 8MM Waste Cover |
| KHJ-MC162-S0, YS24X placement machine FEEDER 8MM translucent side cover, SS FEEDER accessories |
| KHJ-MC181-00, YS12 Mounter Electronic Feeder Accessories, SS 8MM HANDLE |
| KHJ-MC144-00, SS 8MM press cover back safety buckle, YS12 FEEDER accessories |
| KHJ-MC141-04, YAMAHA electric metal press cover, Yamaha SS 8MM press cover |
| KHJ-MC145-01, SS 8MM insurance buckle, YMH electric feeder accessories, SS FEEDER accessories |
| KHJ-MC104-00, YS12F Mounter Electric Feeder Accessories, SS 8MM Feeder Accessories |
| KHJ-MC16Y-00, SS model feeder waste box, YS12 placement machine FEEDER receiving belt box |
| KHJ-MC186-00, YS24 FEEDER wire rope, Yamaha SS 8MM FEEDER accessories, YS FEEDER accessories |
| KHJ-MC245-00, SS12MM insurance buckle, SS 16MM pressure cover insurance button |
| KHJ-MC545-00, SS32MM insurance buckle, ZS 32MM front insurance buckle, YS12 FEEDER accessories |
| KHJ-MC182-00, ZS rack handle accessories, SS feeder handle drawstring tightening assembly |
| KHJ-MC184-00, ZS 8MM FEEDER accessories, SS 12MM rack accessories, SS handle accessories |
| KHJ-MC445-00, SS 24MM front end safety buckle, YS12 FEEDER pressure material front end safety buckle |
| KHJ-MC56U-00, Yamaha electric rack 32MM scrap cover, SS feeder scrap cover |
| KHJ-MC76U-S0, SS 56MM FEEDER waste cover, YMH electric rack accessories |
| KHJ-MC76U-00, Yamaha 56MM electric feeder accessories, SS56MM waste cover |
| KHJ-MC745-00, SS 56MM insurance buckle, YS12 placement machine 56MM FEEDER insurance buckle accessories |
| KHJ-MC46U-00, YAMAHA electric SS rack accessories, YMH electric gun accessories |
