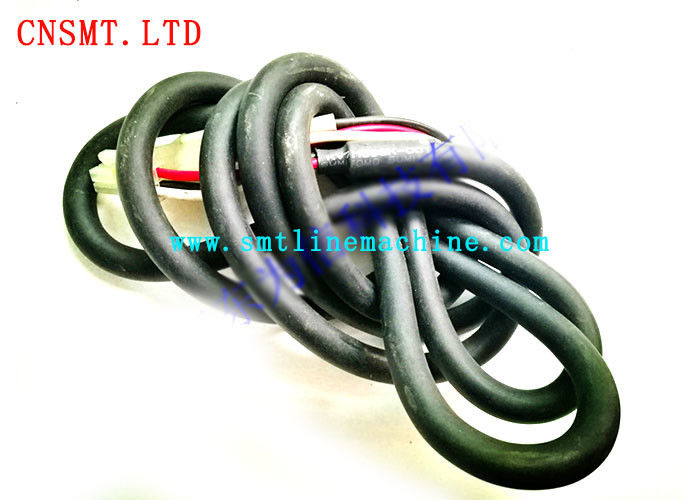

YV88X YV88XG N motor signal line KV7-M666K-001_ motor signal Middle Ages
YV88X YV88XG N motor signal line KV7-M666K-001_ motor signal Middle Ages
Specification:
| K87-M551B-00X PUSH PIN L=10 1 |
| 2 K87-M5512-00X KNOCK PIN (FRONT) 1 |
| 3 K87-M5513-00X KNOCK PIN (REAR) 1 |
| 4 K87-M2131-00X CLAMP LEVER UNIT 1 |
| 5 K87-M2132-00X CLAMP LEVER ASSY 1 |
| 6 K87-M213E-00X HINGE PIN 2 1 |
| 7 K87-M213D-00X ARM 2 |
| 8 K87-M213A-00X CLANK ARM ASSY 1 |
| 9 K87-M11D7-00X CIRCLIP E 2 |
| 10 K87-M213L-00X CLAMP LEVER AXIS 1 |
| 11 K87-M213M-00X AXIS PIN 1 |
| 12 K87-M113L-00X GUIDE AXIS 1 |
| 13 K87-M533A-00X GUIDE AXIS 1 |
| 14 K87-M5545-00X GUIDE AXIS 1 |
| 15 K87-M6540-00X TAPE GUIDE ASSY 1 |
| 16 K87-M5543-00X STICKER 1 |
| 17 K87-M534A-00X LOCK LEVER ASSY 1 |
| 18 K87-M534F-00X SCREW,TRUSS HEAD + 2 |
| 19 K87-M23B4-00X SCREW,SET 1 |
| 20 K87-M111V-10X SCREW,SET (84D) 2 |
| 21 K87-M23BG-00X ELBO CONNECTOR 1 |
| 22 K87-M55BA-00X HOSE |
| K87-M6590-00X WIND ROLLER ASSY 1 |
| 2 K87-M6591-00X WIND PLATE ASSY 1 |
| 3 K87-M559A-00X DRIVE GEAR ASSY 1 |
| 4 K87-M559G-00X SUB LEVER ASSY 1 |
| 5 K87-M559D-00X INDENTATION LEVER ASSY 1 |
| 6 K87-M6594-00X REEL SHAFT ASSY 1 |
| 7 K87-M539M-00X SPRING 1 |
| 8 K87-M2397-00X PLANE WASHER 1 |
| 9 K87-M119J-00X THRUST WASHER 3 |
| 10 K87-M559K-00X INDEX GEAR 1 |
| 11 K87-M239Y-00X PLANE WASHER 1 |
| 12 K87-M559U-00X REEL PLATE 1 |
| 13 K87-M559L-00X SUB ARM 1 |
| 14 K87-M659T-00X METAL 1 |
| 15 K87-M23BJ-00X SCREW, FLAT HEAD + 5 |
| 16 K87-M55BN-00X SCREW, FLAT HEAD + 2 |
| 17 K87-M55BJ-00X SCREW,TRUSS HEAD 1 |
| 18 K87-M55BH-00X SCREW,TRUSS HEAD 1 |
| 19 K87-M55BP-00X THUMB SCREW 2 |
| 20 K87-M11B9-00X CIRCLIP E 1 |
| 21 K87-M23B6-00X SCREW,FLAT HEAD + |
| K87-M6560-00X REEL PLATE ASSY 1 |
| 2 K87-M5569-00X REEL SIZE STICKER 1 |
| 3 K87-M6567-00X GUIDE PLATE 1 |
| 4 K87-M556B-00X PLATE HOOK 1 |
| 5 K87-M656D-00X REEL AXIS 1 |
| 6 K87-M556C-00X SPRING 1 |
| 7 K87-M23B7-00X SCREW,TRUSS HEAD + 1 |
| 8 K87-M534F-00X SCREW,TRUSS HEAD + 2 |
| 9 K87-M55BG-00X SCREW,TRUSS HEAD + |
| KV1-M4110-00X BOX ASSY,C/R 1 |
| 2 KM5-M4510-20X MOTHER BOARD ASSY. 1 |
| 3 KM5-M5840-02X SERVO BOARD ASSY. 2 |
| 4 KM5-M4200-02X SYSTEM UNIT ASSY. 2 |
| 5-1 KJ0-M5810-K3X DRIVER BOARD ASSY. 1 |
| 5-2 KJ0-M5810-E3X DRIVER BOARD ASSY. 1 |
| 6 KM5-M441H-02X VISION BOARD ASSY. 2 |
| 6-1 KM5-M441H-03X VISION BOARD ASSY X1 M020111 |
| 7 KM5-M5880-11X D.POWER ASSY. 1 |
| 8 KJ0-M4134-10X PANEL NO SERVO 1 |
| 9 KJ0-M4132-10X PANEL ,NO DRIVER 1 |
| 10 KM5-M4138-00X PANEL LEFT 1 1 |
| 11 KJ1-M4185-10X FAN MOTOR ASSY 3 |
| 12 KV1-M5303-00X SW POWER DC5 1 |
| 12-1 KV1-M5303-01X SW POWER DC5 1 X3 M080150 |
| 13 KV1-M5303-10X SW POWER DC12 1 |
| 13-1 KV1-M5303-11X SW POWER DC12 1 X3 M080150 |
| 14 KL0-M53E2-00X TRANS 1 ASSY KL0 1 |
| 15 KM5-M4255-00X FLASH DISK |
