CNSMT KGT-M711S-A0X M712S YG200 FNC NOZZLE SHAFT SMT Spare Parts
CNSMT KGT-M711S-A0X M712S YG200 FNC NOZZLE SHAFT SMT Spare Parts
KGT-M712S-A0X KGT-M711S-A0X FNC SHAFT SPARE
Specification:

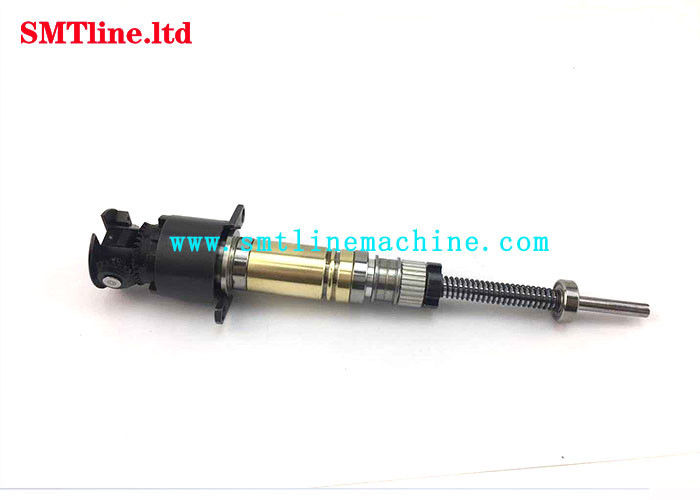

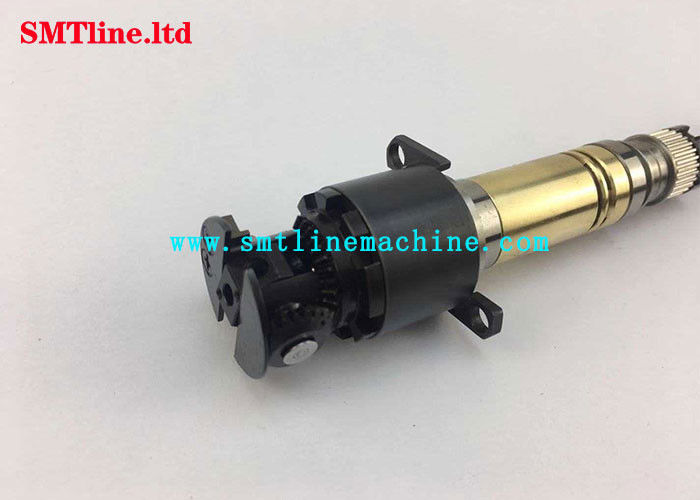

Name: YG200 FNC NOZZLE SHAFT
p/n:KGT-M711S-A0X KGT-M712S-A0X
We also supply the below products:
| KGT-M7101-00X HOUSING, HEAD 1 |
| 2 90990-22J001 PACKING 3 |
| 3 90990-22J003 PACKING 12 |
| 4 90990-22J002 PACKING 15 |
| 5 KV8-M7103-00X PISTON, PLUG 3 |
| 6 90990-22J015 PACKING 3 |
| 7 90200-01J125 O-RING 15 |
| 8 KV8-M7103-10X PLUG 3 |
| 9 KV8-M7104-00X PISTON 6 |
| 10 90990-22J006 PACKING 6 |
| 11 KGT-M712S-A0X STD. SHAFT 1, SPARE 3 |
| H1, 3, 5 |
| 11-1 KGT-M712S-A1X STD. SHAFT 1, SPARE 3 |
| H1, 3, 5 |
| 2005.01.27 MB10071 |
| 12 KV8-M71RJ-00X COLLAR, BRG 3 |
| 13 KG7-M7137-A0X LEAF SPRING 6 |
| 14 KG7-M7169-00X SCREW 6 |
| 15 90990-28J002 WASHER PLAIN 6 |
| 16 KGT-M7106-00X BALL SPLINE 3 |
| 16-1 KGT-M7106-01X BALL SPLINE 3 2005.01.27 MB10071 |
| 17 KGT-M7107-00X HOLDER, NOZZLE 3 |
| 17-1 KGT-M7107-01X HOLDER, NOZZLE 3 2005.01.27 MB10071 |
| 18 KV8-M7110-00X COLLAR 2, HEAD 3 |
| 19 90933-03J128 BEARING 12 |
| 20 KV8-M7106-80X |
| SPACER 6 |
| 21 KGT-M7167-00X PULLEY 6 |
| 22 KV8-M7154-00X SPG, RETURN 6 |
| 23 KV8-M7108-00X NUT 6 |
| 24 92A08-03303 SET SCREW M3X3 12 |
| 25 90933-02J604 BEARING 6 |
| 26 90440-01J030 CIRCLIP 6 |
| 27 KU1-M7152-00X WASHER 1 THURUST 6 |
| 28 KGT-M711S-A0X FNC SHAFT SPARE 3 |
| H2, 4, 6 |
| 29 KV8-M7110-00X COLLAR 2, HEAD 3 |
| 30 KV8-M71X2-00X SPG, RETURN 3 |
| 31 KV8-M7106-52X BALL SPLINE 3 |
| 32 KGT-M71R0-00X NOZZLE, INDEX ASSY 3 |
| 33 KV8-M71X1-00X SPG, LOCATE 3 |
| 34 KV8-M71R1-XXX SHAFT 1 SEL 3 |
| 35 KV8-M71R2-01X BLOCK, STOPPER 3 |
| 36 KV7-M71M6-01X SCREW, NOZZLE 6 |
| 37 KV8-M71R5-02X PIN, LOCATE 3 |
| 38 KV8-M71R6-02X HOLDER, INDEX 3 |
| 39 KV8-M71R9-00X CAM 6 |
| 40 KGT-M71RA-00X BEVEL-GEAR 1 3 |
| 40-1 KGT-M71RA-01X BEVEL-GEAR 1 3 2004.12.02 MAX0126 |
| 41 KV8-M71RC-00X PIN, CAM 6 |
| 42 90440-10J008 CIRCLIP 12 |
| 43 KV8-M71RE-00X WASHER 3 |
| 44 99009-12800 CIRCLIP 3 |
| 45 KV8-M71RL-00X NUT, LOCK 3 |
| 46 KV8-M71RH-00X SEAL, INDEX 3 |
| 47 KV8-M71RM-00X SLEEVE 3 |
| 48 KV8-M71RB-A0X BEVEL-GEAR 2 ASSY 3 |
| 49 KGT-M71R7-00X HOLDER, BRG. 3 |
| 50 KV8-M71R8-00X COLLAR, BRG. 3 |
| 51 90933-01J801 BEARING 3 |
| 52 KGT-M7111-00X PULLY, POST 1 |
| 53 KV8-M7115-00X SHAFT 1, TENSION 2 |
| 54 KGB-M7116-00X PULLY 2 1 |
| 55 92A08-04305 SET SCREW M4X5 3 |
| 56 KGT-M7117-00X BLOCK, ADJUST 1 |
| 57 KV8-M7119-00X BLOCK, ADJUST 1 |
| 58 KGT-M7166-00X PLATE, VALVE 1 |
| 59 KGT-M71V1-00X SENSOR STAY F 1 |
| 60 KGT-M71VU-00X PLATE, SENSOR 3 |
| 61 KGT-M71RX-00X HOLDER, SENSOR 3 |
| 62 KV8-M71VR-00X PLATE, NUT 3 |
| 63 KGT-M71VD-00X BLACKET, AMP 6 |
| 64 KGT-M71VE-00X PLATE, BRACKET AMP 1 |
| 64-1 KGT-M71VE-01X PLATE, BRACKET AMP 1 2004.03.24 M430106 |
| 65 KGT-M71V3-00X BRACKET, LOCK SENSOR 1 |
| 66 KGT-M71V9-01X COVER 1 |
| 67 KGB-M71Y1-01X COLLAR 1, PULLEY 1 |
| 68 90933-01J800 BEARING 2 |
| 69 99009-10800 CIRCLIP (ISTW-10) 1 |
| 70 KGT-M71Y9-00X BODY, CYLINDER 1 |
| 71 KV8-M71YA-00X VALVE CLUTCH 3 |
| 72 91317-05006 BOLT HEX. SOCKET HEAD 6 |
| 73 90990-22J005 PACKING 6 |
| 74 KM1-M7105-00X PLUG 2 6 |
| 75 KGT-M7112-00X STOPPER 1 |
| 76 KGT-M7181-00X BELT, HEAD 2 |
| 77 90933-03J128 BEARING 4 |
| 78 90990-17J007 O-RING 3 |
| 79 91317-03055 BOLT HEX. SOCKET HEAD 3 |
| 80 90115-02J008 BOLT HEX. SOCKET HEAD 12 |
| 81 $KM-05 MUFFLER 7 |
| 82 $SLH8-01 JOINT 2 |
| 83 $TSH6-01 JOINT 2 |
| 84 90990-22J001 PACKING 18 |
| 85 KGT-M7162-00X SOLENOID VALVE 1 |
| 86 KGT-M7163-00X EJECTER, RESIN 1 |
| 87 KGB-M7170-00X GEAR 1 1 |
| 88 KGT-M7171-00X GEAR 2 1 |
| 89 KGB-M7172-00X COLLAR 1, GEAR 1 |
| 90 KGB-M7173-00X COLLAR 2, GEAR 1 |
| 91 KGB-M7174-00X SHAFT, GEAR 1 |
| 92 90933-02J085 BEARING 2 |
| 93 KGT-M7179-00X COVER, GEAR 1 |
| R |
| 94 KGT-M7179-10X COVER, GEAR 1 |
| L |
| 95 KGB-M7185-00X PLATE 2, NUT 1 |
| 96 KGB-M7184-00X BOLT HEXA. S. H 6 |
| 97 KGT-M7183-00X PLATE, EJECTOR 1 |
| 98 KGT-M7178-00X BRACKET 2, GEAR 1 |
| 98-1 KGT-M71VB-00X BRACKET, GEAR 1 2005.01.20 MB10079 |
| 99 KGT-M7177-00X BRACKET 1, GEAR 1 |
| R |
| Jan-99 |
| Delete |
| 2005.01.20 MB10079 |
| 100 KGT-M7177-10X BRACKET 1, GEAR 1 |
| L |
| 100-1 |
| Delete |
| 2005.01.20 MB10079 |
| 101 KGT-M71V4-00X BRACKET, MOTOR 1 |
| R |
| 101-1 |
| Delete |
| 2005.01.20 MB10079 |
| 102 KGT-M71V4-10X BRACKET, MOTOR 1 |
| L |
| 102-1 |
| Delete |
| 2005.01.20 MB10079 |
| 103 KGT-M71V5-00X HOLDER, PULLY 1 |
| R |
| 103-1 |
| Delete |
| 2005.01.20 MB10079 |
| 104 KGT-M71V5-10X HOLDER, PULLY 1 |
| L |
| 104-1 |
| Delete |
| 2005.01.20 MB10079 |
| 105 KV8-M71VS-00X COLLAR, SENSOR 12 |
| 106 KGT-M653G-01X HNS, SENSOR, 4 ASSY 1 |
| R |
| 2004.01 M410007 |
| 107 KGT-M653G-11X HNS, SENSOR, 4 ASSY 1 |
| L |
| 2004.01 M410007 |
| 108 KM1-M4592-12X VAC SENSOR BOARD ASS 6 |
| 109 KGT-M654L-A0X SENSOR, DOWN 1 ASSY 3 |
| H1, 3, 5 |
| 110 KGT-M654M-A0X SENSOR, DOWN 2 ASSY 3 |
| H2, 4, 6 |
| 111 KGT-M654N-A0X SENSOR, CLUTCH ASSY 3 |
| 112 KGT-M654G-A0X SENSOR, POS 1 ASSY 3 |
| 113 KGT-M654H-A0X SENSOR, POS 2 ASSY 3 |
| 114 KGT-M654J-A0X SENSOR, HEAD ASSY 3 |
| 114-1 KGT-M654J-A1X SENSOR, HEAD ASSY 3 2004.01.08 M410007 |
| 115 KGT-M654K-A0X SENSOR, R ORG ASSY 1 |
| 116 99480-04008 PIN, PARALLEL 8 |
| 117 KV8-M7103-A0X PISTON, PLUG ASSY 3 |
| 118 KV8-M7103-B0X PLUG ASSY 3 |
| 119 KV8-M7104-A0X PISTON ASSY 6 |
| 120 KM1-M7105-A0X PLUG 2 ASSY 6 |
| 121 90563-03J120 SPACER BOLT 6 2004.03.24 M43106 |
| 122 KGT-M71VF-00X COVER AMP 2 2004.03.24 M43106 |
| 123 90563-23J060 SPACER 2 2004.03.24 M43106 |
| 124 KGT-M71VC-00X HOLDER, PULLY 1 |
| R |
| 2005.01.20 MB10079 |
| 125 KGT-M71VC-10X HOLDER, PULLY |
