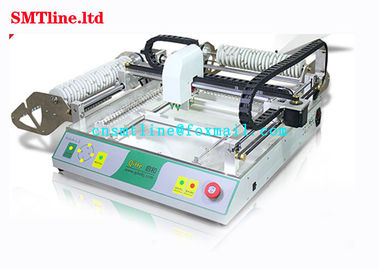

Mini Desktop Pcb Pick And Place Machine , Smt Pick And Place Equipment

Mini Desktop Pcb Pick And Place Machine , Smt Pick And Place Equipment

  • High Light

    smt pick and place equipment


    pcb pick and place machine

  • Brand
    Mini Desktop Pick And Place Machin
  • Weight
  • Lead Time
    IN Stork
  • Packing
  • CONdition
    T/T, Paypal, Westernunion Are All Allowed
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
    Mini desktop pick and place machin
  • Minimum Order Quantity
  • Price
  • Packaging Details
  • Delivery Time
    5-7 work days
  • Payment Terms
    T/T, Western Union
  • Supply Ability

Mini Desktop Pcb Pick And Place Machine , Smt Pick And Place Equipment

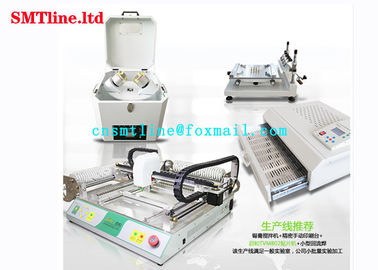

Mini desktop pick and place machine SMT Line Machine qihe Neoden small led surface mounter
Quick Detail

2 Heads SMT280 SMD Components Mini Pick and Place Machine0402,0603,BGA With 28 Feeders SMD LED Machine

TVM925 mini label printing led strip bulb assembly makingmachines High quality smt pick and place machine light production

Automatic Mini Pick and Place Machine with Camera NeoDen3V 42 Feeder led bulb manufacturing machine


Product Name: p  pick and place machine
Used for: smt assembly full line
Warranty: 1 Year
Shipment by air or sea
Delivery Time: 1-2Days
Our Main Market Whole of the world

Packaging details:foam and carton
Delivery time:Within 1~3 working days
1. We ship to world wide
2. Most orders ship within 1~7days after payment
3. Item shipped from china mainland using airmail by EMS, UPS, DHL, TNT or Hong Kong post, we accept the customer’s shipping request
4.100%T/T before shipment, after we shipped the goods, we will email you the shipping information


Mini Desktop Pcb Pick And Place Machine , Smt Pick And Place Equipment 0


I. Overview:
This product adopts microcomputer control, can meet different SMD, BGA welding requirements, the entire welding process is completed automatically, the operation is simple; using fast infrared radiation and circulating air heating, the temperature is more accurate and uniform. The fuzzy temperature control technology and the visualized drawer type table allow the entire welding process to be completed automatically under your supervision; it can complete single and double panel welding; it can weld the finest surface mount components.
The use of maintenance-free high-reliability design allows you to use the heart, rest assured.
Second, the product description:
1, large volume welding area:
The effective welding area is: 300 x 320mm, which greatly increases the use of the machine and saves investment.
2, multiple temperature curve selection:
Eight kinds of memory temperature parameters are available for selection, and manual heating, forced cooling and other functions are provided; the entire welding process is automatically completed and the operation is simple.
3. Unique temperature rise and temperature uniformity design:
The fast infrared heating with output power up to 1500W is matched with the temperature-sharing fan to make the temperature more accurate and uniform. The entire production process can be automatically and accurately completed according to your preset temperature profile, without your extra control.
4, humanized technology boutique:
The fortitude of appearance, visualized operation, friendly man-machine operation interface, perfect temperature curve program, embodying science and technology from beginning to end; lightweight volume and weight, let you save a lot of money; tabletop placement mode allows you to Have more space; simple instructions, let you see it.
5, perfect function selection:
Reflow, drying, heat preservation, shaping, rapid cooling and other functions in one; can complete single and double-sided PCB board welding of CHIP, SOP, PLCC, QFP, BGA, etc.; can be used as glue for product curing. Circuit board heat aging, PCB board maintenance and other work. Widely used in various types of companies, companies, institutions research and development and small batch production needs.
6, technical parameters:
Effective welding area: 30 x 32 cm
Product dimensions: 43 x 37 x26 cm
Product packaging size: 50 x 43 x33 cm
Rated power: 1500W
Process cycle: 1~8 min
Power Supply Voltage: AC110V ~AC220V/50~60HZ
Product net weight: 12.5Kg
Product gross weight: 14Kg
Third, the operating instructions:
1, equipment installation and operation:
The machine is placed on a ventilated platform with no flammable objects around. The drawer is placed outward and the space for opening and closing the drawer is reserved for convenient operation. The body has four sides with a space for 20mm to ensure smooth ventilation at the bottom. Power, turn on the power switch, the initial display of the front panel LCD screen as shown below:

Press S key to display the main operation interface:

Press F4 to switch to English Menu

In the main interface, press the F3 key to select a different temperature curve: such as curve 1

Press F3 again to display the key parameters of the curve: the type of solder paste, the temperature and time of reflow, etc., as shown below

Press F4 key to return to the previous page, press F1 key to automatically execute the selected temperature curve. After the work is completed, it will automatically stop and the buzzer will alarm.
Under the main panel, press F2 to select manual operation:

Press F1 key to start the cooling fan, then press F1/S key to stop; press F key 2 to start the electric heat, and then press F2/S key to stop. /.
2, curve selection:
1) After booting, press S to select the operation interface, press F4 to select different language categories, and press F3 to enter the temperature selection interface:

2) Select different curves according to your processing requirements. Press F1/F2 to select different temperature curves forward/backward. There are 8 different temperature curves for you to choose. Press F3 to view different curve parameters. Press F4 to confirm the curve and return to the main operation interface.
Curve 1, suitable for: 85Sn/15Pb 70Sn/30Pb;
Curve 2, suitable for: 63Sn/37Pb 60Sn/40Pb;
Curve 3, suitable for: Sn/Ag3.5; Sn/Cu.75 Sn/Ag4.0/Cu.5
Curve 4, suitable for: Sn/Ag2.5/Cu.8/Sb.5; Sn/Bi3.0/Ag3.0
Curve 5, suitable for: Standard Curing Temperature Curves for Red Rubber, Heraeus PD955M
Curve 6, suitable for: PCB board rework, etc.
Curves 7,8 apply to: User-defined curves:

Press S to enter the temperature setting interface:

Press F1/F2 key, select different time points forward/backward, press F3/F4 key, select different temperature points up/down, select multiple points to connect corresponding curves, press S key to save:

After saving, return automatically. If the user is satisfied, press F4 to select. If the user is not satisfied, press S to repeat the previous operation.
3, the operating instructions:
1), gently put the items to be processed on the drawer inside the platform, close the drawer, press the F1 key to boot, automatically perform the selected heating curve; LCD screen shows the current execution time, set temperature, measurement temperature, And automatically record the actual temperature curve for comparison.

2) Through the data and curves displayed on the front window of the drawer and the LCD screen, the entire machining process is completed in your visual monitoring. If the processing curve does not meet your requirements, you can modify the parameters.
3) The processing curve is preset according to the different temperature requirements of different solder pastes for reflow. You can preset another temperature curve according to different requirements.
4) In the process of processing, if it is necessary to stop, you can press S to terminate the forced termination; after the processing is completed, the fan will automatically cool the product; you can also forcibly start the fan for cooling.
5) After the reflow is completed, if there is a defect in the product, it can be re-welded again automatically, or the reheating can be started manually.
4, special reminder:
1) The machine is designed to meet the requirements of lead-free double-sided welding, and a unique air duct is designed. When the temperature difference between the upper and lower sides of the PCB board during welding is large, it can ensure that the following components will not fall off when welding the above components; To ensure the soldering requirements of the small board, it is recommended that when soldering the small board and the BGA solder ball, a 10x10cm PCB board is pre-placed at the bottom of the material pump to make the soldering quality better.
2) When the ambient temperature is low, moisture or humidity is too high, it is recommended to warm up the machine before welding. The operation method is: After selecting the welding curve, the empty machine automatically re-welds once.
3) Do not solder metal-encapsulating chips and metal shields that are too reflective; do not solder plastic inserts and items that withstand temperatures below 250 degrees. Please note!
4) How to detect the temperature of the machine: The standard thermometer is used to fix the external temperature probe on the front of the 10x10cm PCB, and it must be closely attached to the top of the PCB. The PCB board with the temperature probe fixed is placed in the material pump and pushed into the machine so that the tested temperature is more in line with the actual production conditions.
5, daily maintenance:
1), keep the cavity clean:
We have a cleaning function for the inner cavity: after using it several times, it is recommended that you manually turn on the heating and the fan for 2-3 minutes to allow the solvent and solder remaining in the cavity to evaporate and volatilize to ensure the inner cavity is clean and the overall performance is stable; Before shutting down, be sure to turn on the blower to allow the complete machine to cool sufficiently before shutting it down, which will extend the service life.
2) Regularly clean the observation glass of the drawer to keep it clean.
Fourth, pay attention to matters
1) The power supply of this unit should be reliably grounded; when it is not used for a long time, it should be unplugged.
2) The machine does not have a smoke exhaust passage. It is recommended to place it in a ventilated place to prevent the volatile poisoning of solder paste.

The gross weight of the machine is about 14KG. Different areas have different shipping costs. Please consult shipping before buying. Thank you!
