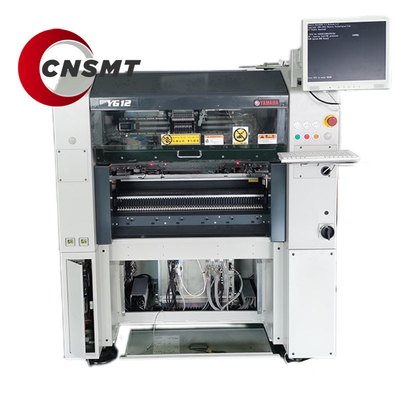

YAMAHA YG12 36000CPH SMT Assembly Machine 0.05mm/CHIP

YAMAHA YG12 36000CPH SMT Assembly Machine 0.05mm/CHIP
YAMAHA YG12 36000CPH SMT Assembly Machine 0.05mm/CHIP YAMAHA YG12 36000CPH SMT Assembly Machine 0.05mm/CHIP YAMAHA YG12 36000CPH SMT Assembly Machine 0.05mm/CHIP YAMAHA YG12 36000CPH SMT Assembly Machine 0.05mm/CHIP

Large Image :  YAMAHA YG12 36000CPH SMT Assembly Machine 0.05mm/CHIP

Product Details:
Place of Origin: JAPAN
Brand Name: CNSMT-YG12
Certification: CE-YAMAHA YG12
Model Number: YAMAHA YG12
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Woodenbox
Delivery Time: 1-2 work days
Payment Terms: T/T, Western Union,paypal
Supply Ability: 10pcs/day
Detailed Product Description
Product Name: YAMAHA YG12 Dimensions: L1,254×W1,440×H1,450mm
Voltage:: 110V/220V Weight: 2050KG
Applicable PCB: L50×W50mm–L510×W460mm Application: Smt Assembly Line
Model: KHY-000 Speed: 36000CPH(0.08sec/CHIP Equivalent)
Absolute Accuracy (μ+3σ): ±0.05mm/CHIP Feeder QTY: 120(MAX) Double Side, 60 For Single Side
FEEDER PLATE: 60positions Per Side Multicamera: Option
High Light:

36000CPH SMT Assembly Machine

,

0.05mm/CHIP SMT Assembly Machine

,

YAMAHA YG12 SMT Machine



CNSMT Provide you the best YAMAHA YG12 machine in China!

YAMAHA YG12 is a high-cost effactive smt pick and place machine in the world, its almost same with YAMAHA YS12 smd machine, except feeder base different, YAMAHA YG12 is mechanic feeder, YAMAHA YS12 is electronics feeder.



But YS12 price more high than YG12,so if you dont have too much budget, YAMAHA YG12 will be your best option for your smt production line

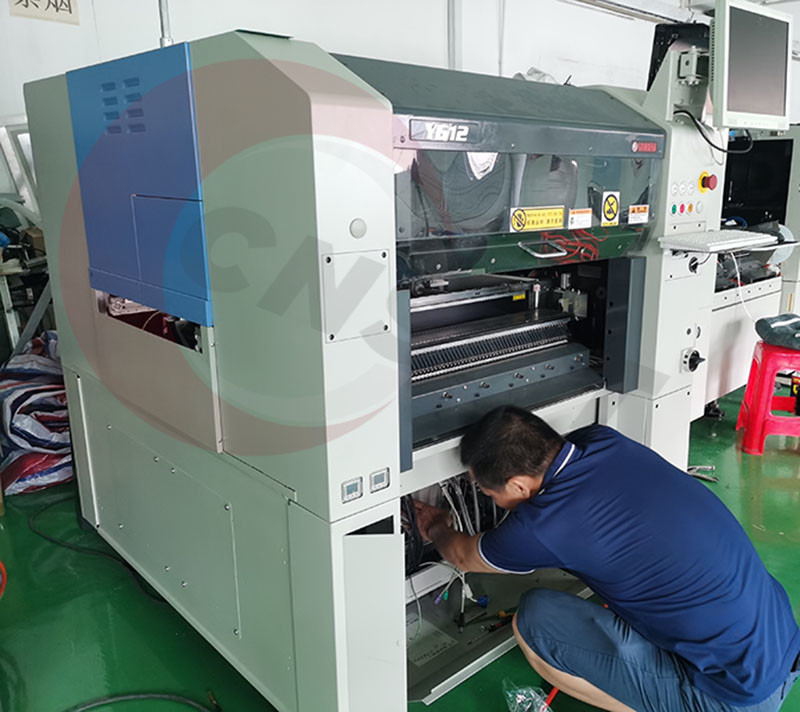

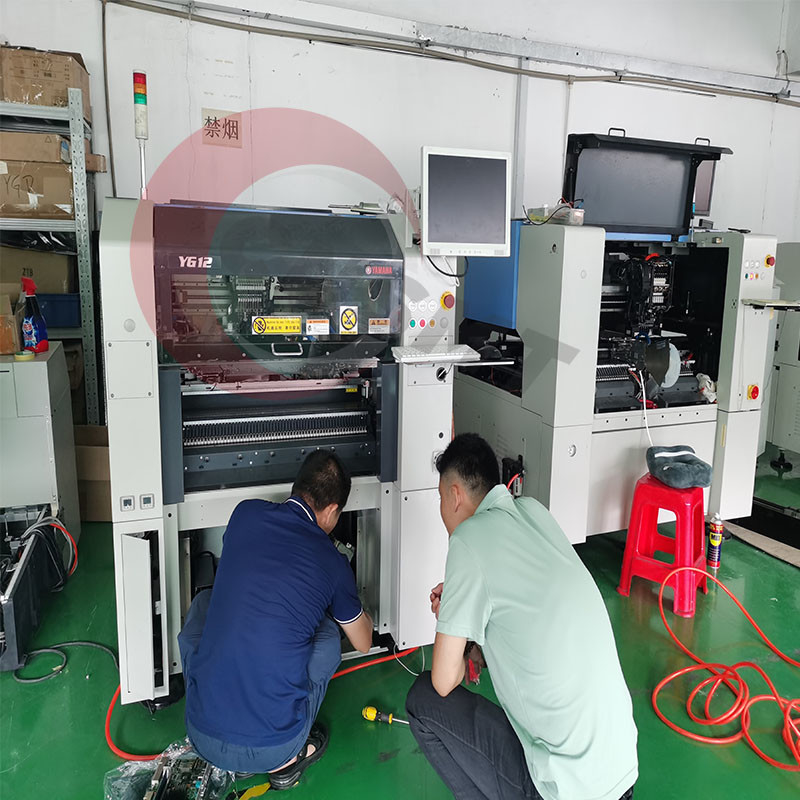

We provide all kinds of SMT YAMAHA and other brands of smt used and new machines in China, with best price and best working condition,we have a professinal engineer team in our factory, maintance and inspection all the details before shippment



If there is any problems after arrived at your factory, we provide online or vedios service help you solve the problem step by step.



YAMAHA YG12 have bellow advantages:



1,YG12 is a compact high-speed placement machine in the YAMAHA series of placement machines. It has the ability to mount chip components at high speed. It can use tape, tube, and bulk components, and is mainly used for chip components.



2. YG12 can be calibrated by 4 reference points on the PCB. For thin boards and flexible boards, the 4 reference points can completely correct the warpage error of the entire PCB, thus ensuring the placement.



3. The high-precision linear motor (Liner Motor) control system independently developed and manufactured by YAMAHA placement machine improves placement accuracy and stability



The software interface is intuitive and friendly: the intuitive and friendly man-machine interface is easy to learn and master, and improves work efficiency (there are four text interfaces in Chinese, English, Japanese and Korean)



4. The placement head is a set of 10 online placement heads, and the movement of each placement head is independently controlled by a set of linear motors and gratings, thereby ensuring more stable placement accuracy and speed.



5. A set of 10 online placement heads, with a new scanning camera, can achieve high-speed placement of 36,000 chip components per hour under conditions; the range of components that can be placed is from 0402mm (English 01005inch) to □20mm components .

YAMAHA YG12 Specification:

■PCB L510mmx W460mm
■ The corresponding PCB size is L50×W50mm–L510×W460mm
■ Conditional mounting speed: 36,000CPH
■ Mounting accuracy: accuracy ±0.05mm/CHIP; repeat accuracy ±0.03mm/CHIP
■ The main machine has 60 tape feeding positions (calculated by 8mm)
■ Host size: L1,254×W1,440×H1,450mm (saving space and energy to achieve environmental protection effect)
