0.25s/Chip 0.55MPA 4KVA SMT Line Machine YAMAHA YV100II

large.img.alt
large.img.alt

Large Image :  0.25s/Chip 0.55MPA 4KVA SMT Line Machine YAMAHA YV100II

Product Details:
Place of Origin: JAPAN
Brand Name: YAMAHA
Certification: CE-6
Model Number: YAMAHA YV100II
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Woodenbox
Delivery Time: 1-2 work days
Payment Terms: T/T,Western Union,paypal
Supply Ability: 10pcs/day
Detailed Product Description
BRAND: YAMAHA Pick And Place Model: YV100-II
Automatic /Manual: Automatic Chip Speed: 0.25 S / Chip
Mounter Weight: 1200kg Mounter Size: L1650*W1358*1450MM
Placement Accuracy: ±0.1mm/CHIP ±0.08/QFP Feeder Capacity: 100(max)
Component Size: 1005~QFP’SQP’SOJ’PLCC(25mm) BGA(0.4p) PCB Thickness: 0.4-3.0
PCB SIZE: L600*W400(Max)/L50*W50(Min)
High Light:

4KVA SMT Line Machine

,

0.55MPA SMT Line Machine

,

YAMAHA YV100II

Welcome to buy YAMAHA YV100II in CNSMT !



YAMAHA YV100II is one of the most practical pick and place machine



Although YAMAHA YV100ii model is earlier, it is highly cost-effective and has been recognized by industry personnel .If you are interested in purchasing, we will be happy to provide you with supply



YAMAHA YV100II use two high resolution multi vision digital camera



YAMAHA YV100II can be used for continuous identification of all solder balls of CSP / BGA components, including the judgment of whether the defects of solder balls are good or not



YAMAHA YV100II can choose the flying nozzle with Yamaha patent, which can effectively reduce the idling loss of the machine



 We believe YAMAHA YV100II is the best choice for some buyers



CNSMT Provide you all the SMT YAMAHA surface mounter machines , both used and new SMT pick and place machine, and privide free technique support, we are online 24hours/7days support your business.



We also have bellow YAMAHA SMT machines:



YAMAHA YV100X, YAMAHA XG, YAMAHA YS12, YAMAHA YG12, YAMAHA YS12F, YAMAHA YG200, YAMAHA YSM10, YAMAHA YSM20...



and we have a lot of these yamaha pick and palce machines in stock, welcome to visit our factory !





YAMAHA YV100II Specification:



YAMAHA YV100II 1. High-speed machine based on the reliability of the basic structure
YAMAHA YV100II 2. Mounting of protective components
YAMAHA YV100II 3.0.25 second/CHIP high-speed placement
YAMAHA YV100II 4. Can mount 0.5 pin pitch 32mm QFP
YAMAHA YV100II 5. High-speed image processing
YAMAHA YV100II 6.2 cameras reduce production time
YAMAHA YV100II 7. Newly designed high rigid frame
YAMAHA YV100II 8. Increase the speed of the shaft
YAMAHA YV100II 9. Can handle a variety of components
YAMAHA YV100II 10. 8 inline placement heads most suitable for computer SIMM production
YAMAHA YV100II Substrate size L600*W400(Max)/L50*W50(Min)
YAMAHA YV100II Substrate thickness 0.4-3.0
YAMAHA YV100II Board transfer direction right-left
YAMAHA YV100II Mounting accuracy ±0.1mm/CHIP ±0.08/QFP
YAMAHA YV100II Placement speed 0.25 seconds/CHIP 1.7 seconds/QFP
YAMAHA YV100II Types of originals Ribbon originals 100 types (MAX, 8MM with conversion)
YAMAHA YV100II Original pallet 80 kinds (used for TMAX, YTF)
YAMAHA YV100II Original supply form 8-56mm wide, rod, bulk, tray
YAMAHA YV100II Mounting original 1005~QFP’SQP’SOJ’PLCC(25mm) BGA(0.4p)
YAMAHA YV100II Power supply three-phase AC220/208/230/240/380/400/416V ±10%, 50/60HZ
YAMAHA YV100II Power 4KVA
YAMAHA YV100II Air pressure above 0.55MPA, 350MIN
YAMAHA YV100II Dimensions L1650*W1350*H1810
YAMAHA YV100II Weight 1300KG
YAMAHA YV100II Patch speed 12000 (grains/hour)

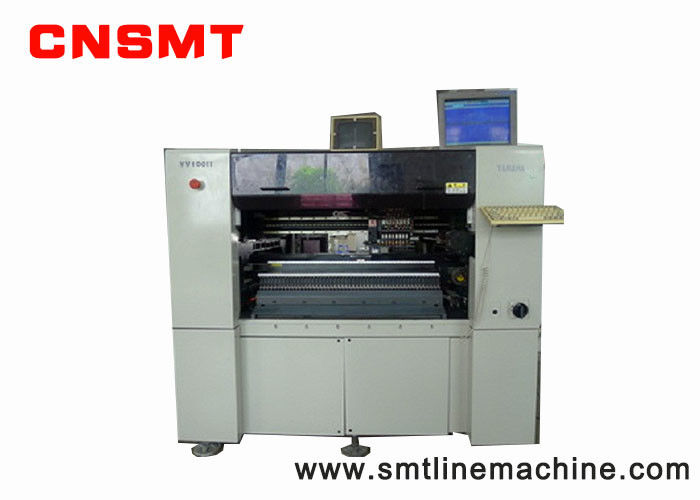

0.25s/Chip 0.55MPA 4KVA SMT Line Machine YAMAHA YV100II 0

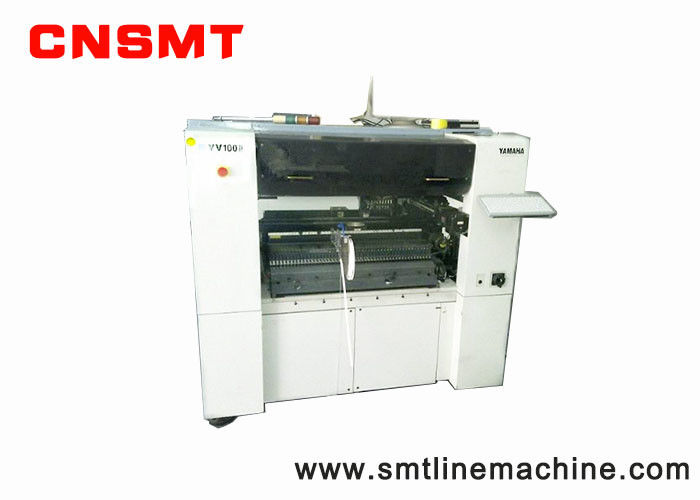

0.25s/Chip 0.55MPA 4KVA SMT Line Machine YAMAHA YV100II 1

Keyowrds:

used smt equipment
used pcb assembly equipment
used smt pick and place machine
used pcb manufacturing equipment
used smt equipment dealers
used smt equipment for sale
used smt machines
used pick and place
used wave solder machine
used pick and place machine
used reflow oven





smt pick and place machine, smt pick and place, automatic pick and place machine,pcb pick and place,pcb pick and place machine,led pick and place machine,smt placement equipment,smt mounter,chip mounter machine,surface mount machine,smt machine,smt equipment,smd machine,smd mounting machine,smd pick and place machine,smt production line,smt line,smd tht.



YAMAHA YG200, SMD Machine 2



We have full range of SMT pick and place machine For FUJI,JUKI,SAMSUNG,YAMAHA,PANASONIC and so on,feeder,nozzle,smt pick and place machine,PCB Conveyor,
cylinder,and vibration feeder,anything you need ,just tell me!



Successful Experience:


CNSMT's customer in 50 countries all over the world
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 600 experts and technician for customers.
3. Became the most reliable Chinese partner for you.



For SMT factory setup,we can do for you:


1. We provide fulL SMT solution for you
2. We provide core technology with our equipments
3. We provide the most professional tech service
4. We have wealthy experience on SMT factory setup
5. We can solve any question about SMT

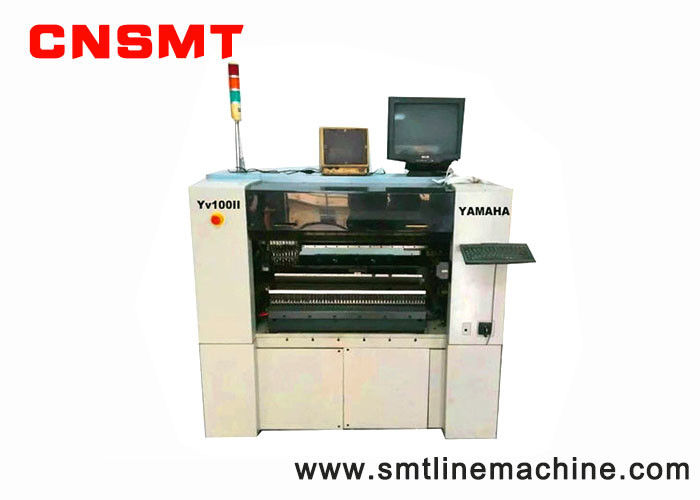

0.25s/Chip 0.55MPA 4KVA SMT Line Machine YAMAHA YV100II 3
