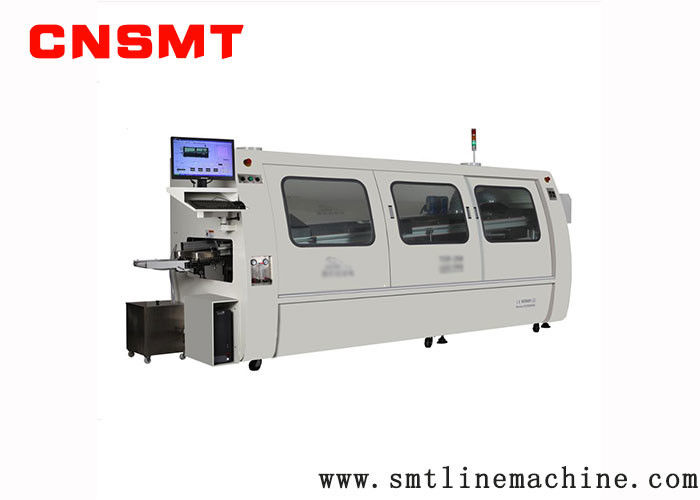

LED Assembly Line Smt Wave Soldering Machine CNSMT-W3008 Medium Size For PCB Driver

LED Assembly Line Smt Wave Soldering Machine CNSMT-W3008 Medium Size For PCB Driver

    • LED Assembly Line Smt Wave Soldering Machine CNSMT-W3008 Medium Size For PCB Driver
    • LED Assembly Line Smt Wave Soldering Machine CNSMT-W3008 Medium Size For PCB Driver
    • LED Assembly Line Smt Wave Soldering Machine CNSMT-W3008 Medium Size For PCB Driver
  • LED Assembly Line Smt Wave Soldering Machine CNSMT-W3008 Medium Size For PCB Driver

    Product Details:

    Place of Origin: china
    Brand Name: cnsmt
    Certification: CE
    Model Number: Wave Soldering Machine

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: woodenbox
    Delivery Time: 5-7 work days
    Payment Terms: T/T, Western Union
    Supply Ability: 10pcs/day
    Contact Now
    Detailed Product Description
    Brand:: CNSMT MODEL: Wave Soldering Machine
    Weight:: 1500kg Lead Time:: IN Stork
    Packing:: Woodenbox CONdition: Working
    POWER: 110V/220 PAYMENT TERM: T/T, Paypal, Westernunion Are All Allowed

    CNSMT-W3008 SMT LED Assembly Line smt Wave Soldering Machine Medium size for PCB driver cheap price wave sloder machine

    CNSMT-W3008 SMT LED Assembly Line smt Wave Soldering Machine Medium size for PCB driver cheap price wave sloder machine






    Feature



    Number of heating zones 3
    Length of heating zones 1500mm
    Body size 4100(L)*1400(W)*1560(H)
    Outside dimension 4300(L)*1420(W)*1750(H)
    Weight 1500KG
    Total/running power 20KW/7KW
    Air supply 0.5MPa
    Preheating method Micro air
    Preheating power 220V 8KW
    Control method PC +PLC/Touchtone/Touch screen
    Range of temp. control Room temperature---300ºC
    Preheating time About 10-15mins for setting 150ºC
    Solder type Lead-free / Sn-Pb
    Solder pot capacity 330KG
    Solder pot temperature 400ºC
    Solder power 380V 12KW
    Solder temp. control method PID&SSR
    Wave crest drive power 1KW 220V
    Warm-up time of solder About 120mins for setting 250ºC
    PCB width 50-300mm
    Convey speed 300-2000mm/min
    Convey direction L→R (R→L optional)
    Convey angle 4-7 º
    Flux pressure/capacity 3-5 bar/6L









    INTRODUCTION:
    1.Efficient, energy-saving, lead-free, environment-friendly, safe and brand-new design, simple operation, convenient maintenance.

    2.Automatic power system, frequency converter control, automatic board input system.

    3.Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.

    4. Preheating system uses three independent temperature control so that ensure the excellent heat preservation, temperature uniformity, temperature difference no more than ±2ºC.

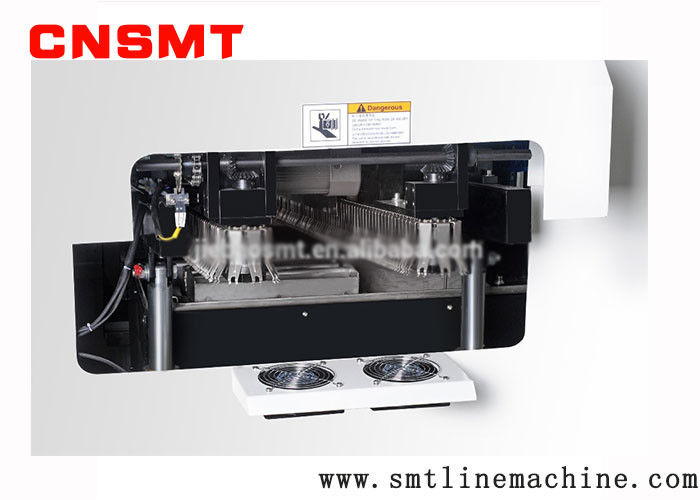

    5.Special alloy transportation chain claws, non-stick tin and ensures the quality of welding PCB board.

    6.Tin stove adopts imported high frequency conversion motor independent control, stable performance.

    7.Lead-free solder furnace with independent design, environmental protection and safety,

    easy to clean.

    8.Tin stove preheating furnace uses high-speed PID and 2 independent infrared heating (IR heating) control.

    9.Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.

    10.With black box memory function, the machine can always store the production management records, improve work efficiency.

    11.Automatic claw cleaning function ensure the cleanliness of claws.

    12.Reasonable design and sensitive fault security alarm system ensure the stable performance and operators’ safety.


    Packaging details:foam and carton
    Delivery time:Within 1~3 working days
    Shipment
    1. We ship to world wide
    2. Most orders ship within 1~7days after payment
    3. Item shipped from china mainland using airmail by EMS, UPS, DHL, TNT or Hong Kong post, we accept the customer’s shipping request
    4.100%T/T before shipment, after we shipped the goods, we will email you the shipping information







    Business Scope:

    1.Buy and sells SMT pick and place machines(YAMAHA JUKI FUJI,SAMSUNG,PANASONIC,PHILIPS,SIEMENS,ASSEMBLON,Mirae, SONY,...
    2.SMT Full-auto printer&semi-auto printer
    3.SMT reflow oven& wave solder machine
    4.SMT loader and unloader
    5.SMT conveyor
    6.AOI, SPI
    7.SMT peripheral equipment.
    8.Insert machine
    9.Machine spare parts such as feeders nozzles
    10.Full line solution service
