Mirea MX200 MX200L MX200PL SMT Pick And Place Machine 30000CPH Single Side 6m Head

Mirea MX200 MX200L MX200PL SMT Pick And Place Machine 30000CPH Single Side 6m Head

Mirea MX200 MX200L MX200PL SMT Pick And Place Machine 30000CPH Single Side 6m Head

Product Details:

Place of Origin: JAPAN
Brand Name: MIRAE
Certification: CE
Model Number: MX200

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: vacuum woodenbox
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 10pcs/day
Contact Now
Detailed Product Description
Brand:: MIRAE MODEL: MX200l
Weight:: 1360KG Lead Time:: 1-2days
Packing:: PAPER BOX PAYMENT TERM: T/T, Paypal, Westernunion Are All Allowed
Warranty: 1YEAR Delivery Term: Exw Fob Cif...
Year: 2018 Size: 0.5*0.5*0.5CM

Mirea MX200 MX200L MX200PL SMT Pick And Place Machine 30000CPH single side 6m head used smt machine

Mirea MX200 MX200L MX200PL SMT Pick And Place Machine 30000CPH single side 6m head used smt machine







Specification:

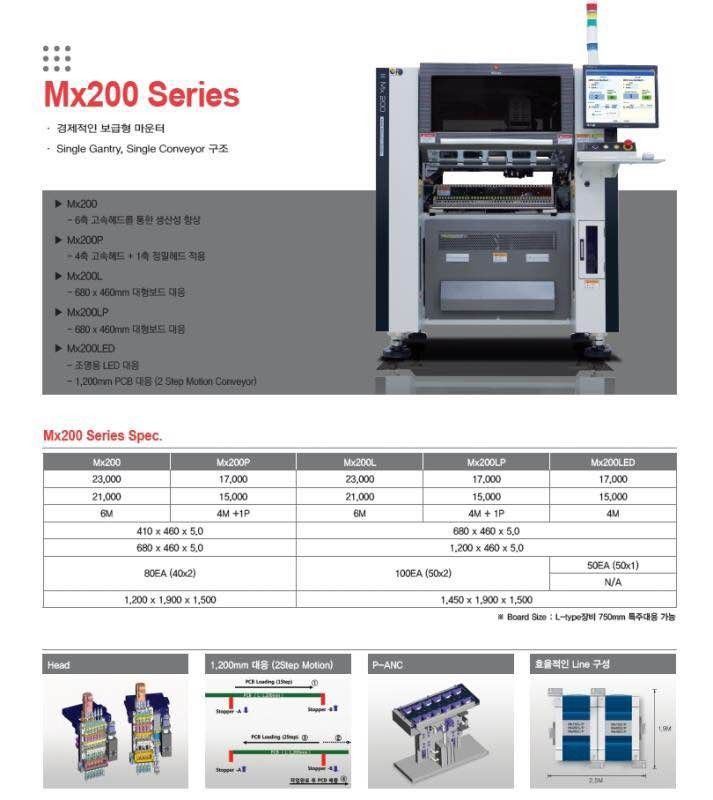

MIRAE MX200L technical parameters:
(A), placement speed:
Mx200L:
IPC9850 standard: 21,000 CPH (0.171 sec/chip);
Theoretical value: 23,000 CPH (0.157 sec/chip).
(B), the number of placement nozzles:
Mx200L : 6 Modules
(three), placement accuracy:
Mx200L : CHIP: ±0.050mm;
(4), component mounting range:
Mx200L : Metric: 0603 ~ □ 18mm × 10mm (H: component height)
(5), substrate size:
Mx200L:
Standard size (L × W × T): 680 × 460 × 5.0mm
Substrate weight: 2.0KG
(6) Number of feeders:
Mx200L:
Feeder No. 100pcs (8mm Feeder Benchmark)
(7) Machine weight:
Mx200L:
Machine Weight: 1,300 kg
(eight), power supply
Mx200L:
Power: 200/208/220/230/240/380/400/415/430V 50/60HZ
(9), rated power
Mx200L:
Power rating: 3KVA
(10), using air pressure
Mx200L:
Air pressure: 0.54Mps
(11) Air consumption:
Mx200L:
Air consumption: Standard status: 180NI/min
(12), machine size:
Mx200:
Machine Size (W × D × H): 1,450 × 1,900 × 1,500mm
(13), operating language:
Mx200L:
Chinese/English/Korean
