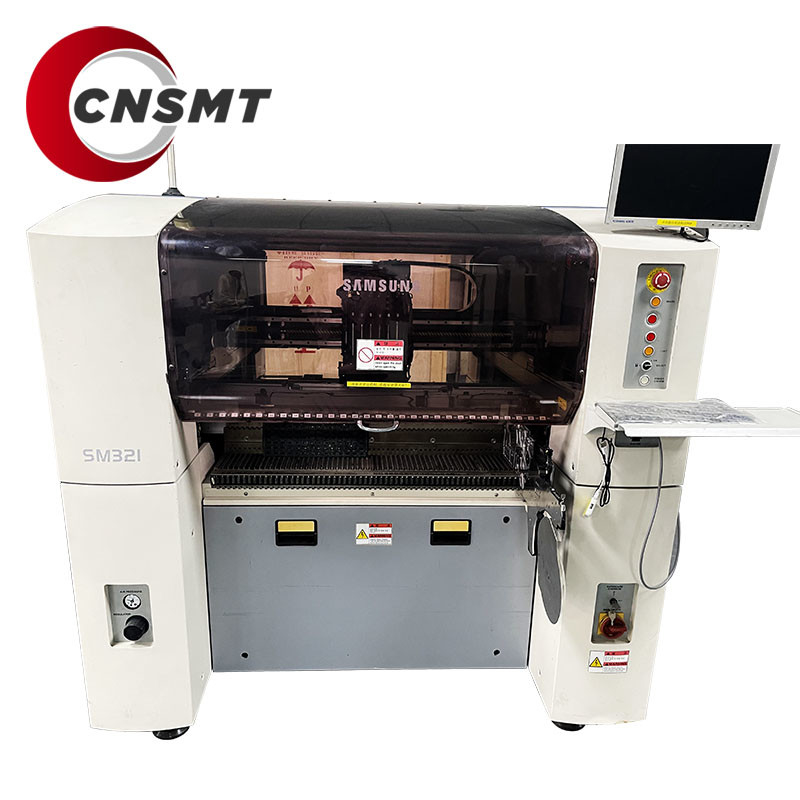

SM321 SM321S Pick And Place Smd Machine With Double - Arm Y - Axis System

SM321 SM321S Pick And Place Smd Machine With Double - Arm Y - Axis System

    • SM321 SM321S Pick And Place Smd Machine With  Double - Arm Y - Axis System
    • SM321 SM321S Pick And Place Smd Machine With  Double - Arm Y - Axis System
  • SM321 SM321S Pick And Place Smd Machine With  Double - Arm Y - Axis System

    Product Details:

    Place of Origin: Korea
    Brand Name: Samsun
    Certification: CE
    Model Number: SM321

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: vacuum woodenbox
    Delivery Time: 5-7 work days
    Payment Terms: T/T, Western Union
    Supply Ability: 10pcs/day
    Contact Now
    Detailed Product Description
    Brand:: Samsun MODEL: SM321
    Weight:: 1800KG Lead Time:: 1-2days
    Packing:: Vacuum WOODEN BOX PAYMENT TERM: T/T, Paypal, Westernunion Are All Allowed
    Warranty: 1YEAR Delivery Term: Exw Fob Cif...
    Size: L1, 650*D1, 680*H1, 530 Air Consumption: 5KG/cm2 260NI/min
    Mounting Speed:: 52000CPH Power Supply: AC200/208/2 AC200/208/220/20/240/380/415V (50/60HZ, 3Phase)

    CNSMT Samsun SM321 SM321S Pick and place machine double-arm Y-axis dual servo drive system



    Specification:



    Equipment Name: Samsug SM321, Samsun SM321 Mounter, Used Samsun SM321 Mounter
    Equipment introduction:
    Samsun SMT SM321S adopts Windows XP operating system, the best production speed is 52,000 CPH, double-arm Y-axis dual servo drive system, 16 sets of arms with a total of 16 heads, high-speed flight image recognition system, component adaptation range: 0402mm Chip to12mm Mounting accuracy: ±50μm, can be refueled without stopping, suitable for new SM feeding system, LED display feeder status, double conveying system, can hold 84 8mm feeders, with LCD display for front and rear operation, automatic Change the mouth device.
    Samsun SM321S parameters
    Mounting speed CPH
    (IPC9850) 1608 Chip: 21k CPH (IPC)
    1005 Chip: 20k CPH (IPC)
    SOP16: 15 k CPH (IPC) / feeder
    QFP100: 5.5k CPH (IPC) / tray
    QFP100: 1.1sec (fixed vision)
    QFP256: 1.41sec (fixed vision)
    Mounting accuracy Chip ±50um (0402@3ó)
    QFP ±30um (QFP168@3ó)
    Component range standard configuration 1005~□22mm IC (CSP 0.75) (flight vision)
    ~□32mm IC (0.4P)
    ~□55mm IC (0.65P/MFOV) (fixed vision)
    Option 0402~□7mm IC (CSP 0.65)
    0603~□12mm IC (CSP 0.75) (Flight Vision)
    ~□17mm IC (0.3P)
    ~□42mm IC (0.5P)
    ~□72mm connector(0.65P/MFOV) (fixed vision)
    Maximum height H 15mm (fixed vision)
    Narrow Pitch Mount 0402 Chip: P 0.10mm
    0603 Chip: P 0.15mm
    Feeder quantity Max.120EA
    PCB size
    (mm)
    (L*W*T) standard 460*400*4.2~50*40*0.38 (weight 3kg)
    Option 510*460*4.2
    Special customization 610*510*4.2
    Dimensions L1, 650*D1, 680*H1, 530
    Weight (KG) 1,800kg
    Energy consumption 3phase
    AC200/208/220/240/380/415
    4.7kVA/(RMS 3kVA)
    50/60Hz
    Air consumption 5KG/cm2 260NI/min
