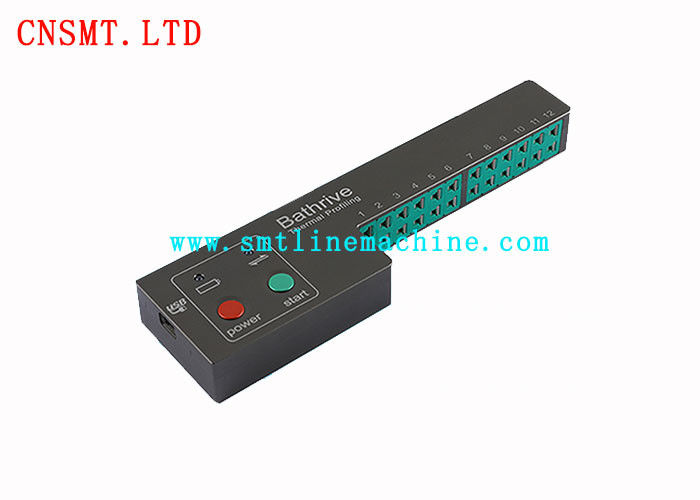

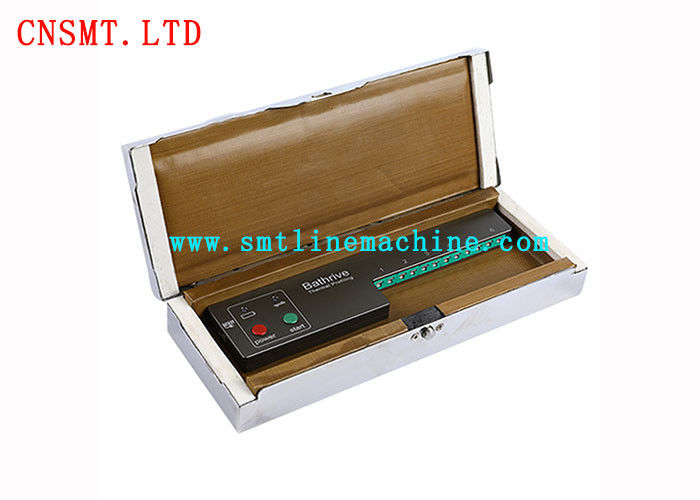

Bathrive FBT12 Brazing Heat Treatment Tunnel Furnace Curve Tracer Kit CE Approval

Bathrive FBT12 Brazing Heat Treatment Tunnel Furnace Curve Tracer Kit CE Approval

    • Bathrive FBT12 Brazing Heat Treatment Tunnel Furnace Curve Tracer Kit CE Approval
    • Bathrive FBT12 Brazing Heat Treatment Tunnel Furnace Curve Tracer Kit CE Approval
  • Bathrive FBT12 Brazing Heat Treatment Tunnel Furnace Curve Tracer Kit CE Approval

    Product Details:

    Place of Origin: CHINA
    Brand Name: SMT
    Certification: CE
    Model Number: Bathrive FBT12

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: vacuum woodenbox
    Delivery Time: 5-7 work days
    Payment Terms: T/T, Western Union
    Supply Ability: 100pcs/day
    Contact Now
    Detailed Product Description
    Brand:: SMT MODEL: Bathrive FBT12
    Weight:: 2.45kg Lead Time:: 1-2days
    Packing:: BOX PAYMENT TERM: T/T, Paypal, Westernunion Are All Allowed
    Delivery Term: Exw Fob Cif... SIZE: L*W*H(179 Mm *47 Mm *20 Mm)

    Bathrive FBT12 Powder paint coating furnace temperature tester brazing heat treatment tunnel furnace curve tracker

    Bathrive FBT12 Powder paint coating furnace temperature tester brazing heat treatment tunnel furnace curve tracker


    Specification:



    Product Name: Temperature Recorder

    Product model: FBT12

    Number of test points: 12

    Product brand: Bathrive, Chinese name: Breed

    Product use: used for temperature measurement of various heating or cooling equipment. Long-term temperature monitoring. Temperature curve mapping and temperature data analysis

    Scope of application: SMT electronic manufacturing, metallurgy, heat treatment, paint coating, brazing, IR, tunnel furnace, etc. All industries that need temperature monitoring or measurement



    Features:

    1: Small size, powerful, designed for more than 10 years

    2: High measurement accuracy +/-0.5°C, fast speed, fastest 0.01 second/time, easy to deal with any temperature measurement challenge

    3: High-speed USB interface communication and charging, no extra charge for permanent

    4: 3 kinds of trigger start mode, 4 kinds of trigger stop modes can be optimized and matched at will, realize intelligent start and stop without manual intervention

    5: 1200MA polymer rechargeable battery powered

    6: Overlap analysis of up to 100 sets of curves

    7: Up to 255 sets of temperature profile data can be saved (optional)

    8: Complete firmware information prompt, users can view the instrument usage record, status and hardware configuration information at any time.

    9: Intelligent PWI index analysis

    10: Automatic curve optimization function

    11: Instrument time can be set or calibrated to synchronize with the computer

    12: Powerful curve editing function



    Product specifications:



    1

    Instrument model

    FBT12

    2

    Instrument size

    20*47*179 mm (H*W*L)

    3

    measurement accuracy

    +/-0.5°C

    4

    Temperature resolution

    0.1 ° C

    5

    Sampling frequency

    0.01 times / sec ~ hourly

    6

    storage

    16M (optional)

    7

    Number of channels

    12

    8

    Number of storage groups

    255 (optional)

    9

    battery capacity

    1200MA

    10

    Startup mode

    Button trigger, temperature trigger, delay trigger

    11

    Stop mode

    Button trigger, temperature trigger, delay trigger, communication trigger

    12

    Instrument operating temperature

    -40~+105°C

    13

    Temperature measurement range

    -200~+1370°C

    14

    Thermocouple type

    K type

    15

    Number of processor bits

    32-bit



    KGT-M2694-00X BRACKET A, GUIDE 2
    2 KGT-M2695-00X BRACKET B, GUIDE 2
    3 KGT-M26F1-00X FRAME 1 1
    4 KGT-M26F2-00X FRAME 2 1
    5 KGT-M26F3-00X FRAME 3 1
    6 KGT-M26F4-L0X DUCT, HARNESS L 1
    7 KGT-M26F4-R0X DUCT, HARNESS R 1
    8 KGT-M260B-00X TAPE, Y DUCT 2
    9 KGT-M260C-00X TAPE 2, Y DUCT 2
    10 KGT-M260D-00X TAPE 3, Y DUCT 2
    11 KGT-M2667-00X PLATE 2
    12 KV7-M2266-00X PLATE, NUT 2
    13 KV7-M2268-00X BRACKET 1, TAPE 2
    14 KV7-M2269-00X BRACKET 2, TAPE 2
    15 KGT-M2678-00X GUIDE, CABLE Y 2
    15-1 KGT-M2678-A1X GUIDE, CABLE Y 2 2004.07.12 MA70035
    16 KGT-M2698-00X PLATE 1, CLAMP 2
    17 91314-04008 BOLT HEX. SOCKET HEAD 8
    18 91317-05010 BOLT HEX. SOCKET HEAD 6
    19 91314-06010 BOLT HEX. SOCKET HEAD 32
    20 KGT-M36A1-00X DUMP BOX 4
    21 KGT-M36A2-00X PLATE 1, DUMP BOX 2
    22 KGT-M36A3-00X PLATE 2, DUMP BOX 2
    23 91317-05010 BOLT HEX. SOCKET HEAD
    KV1-M2801-S0X FRAME 1, YT AXIS 2
    2 KV1-M2803-01X SCREW BALL, YT AXIS 1
    3 KG2-M2604-00X SUPPORT UNIT 1
    4 KV1-M2606-00X DAMPER 4
    5 KV1-M280A-00X HOLDER SET YT AXIS 1
    6 KGT-M2809-00X HOLDER NUT, YT AXIS 1
    7 KM5-M2611-00X COUPLING, Y-AXIS :LCD 1
    8 KV1-M2816-00X DOG, YT AXIS 1
    9 KV1-M2816-11X DOG, YT AXIS 1
    10 KGT-M2816-00X DOG2, YT AXIS 1
    11 KGT-M2818-L0X BRKT. L, SENSOR 1
    L side
    12 KV1-M2821-00X DUCT, CABLE 2
    13 KGT-M2822-00X BRKT., DUCT 2
    14 KGA-M260A-00X SENSOR ORG(L=300) 1
    15 KGA-M260B-00X SENSOR OT(L=300) 1
    16 KV1-M2824-00X TAPE, YT AXIS 1
    17 KV1-M2825-00X TAPE 1, YT AXIS 1
    18 KV1-M2826-00X TAPE 2, YT AXIS 1
    19 KV1-M2877-S0X GUIDE SET, YT AXIS 1
    20 98903-03006 SCREW BINDING HEAD 6
    21 98904-03008 SCREW BINDING HEAD 2
    22 91317-04006 BOLT HEX. SOCKET HEAD 2
    23 91317-04014 BOLT HEX. SOCKET HEAD 33
    24 91317-06010 BOLT HEX. SOCKET HEAD 16
    25 91317-06020 BOLT HEX. SOCKET HEAD 4
    26 91317-06030 BOLT HEX. SOCKET HEAD 2
    27 91317-06040 BOLT HEX. SOCKET HEAD 4
    28 91317-08020 BOLT HEX. SOCKET HEAD 16
    29 92903-08200 WASHER, PLAIN 16
    30 90K63-611404 AC SERVO MOTOR 1
    31 91317-06016 BOLT HEX. SOCKET HEAD 4
    32 91317-05016 BOLT HEX. SOCKET HEAD 4
    33 KGT-M2818-R0X BRKT. R, SENSOR
