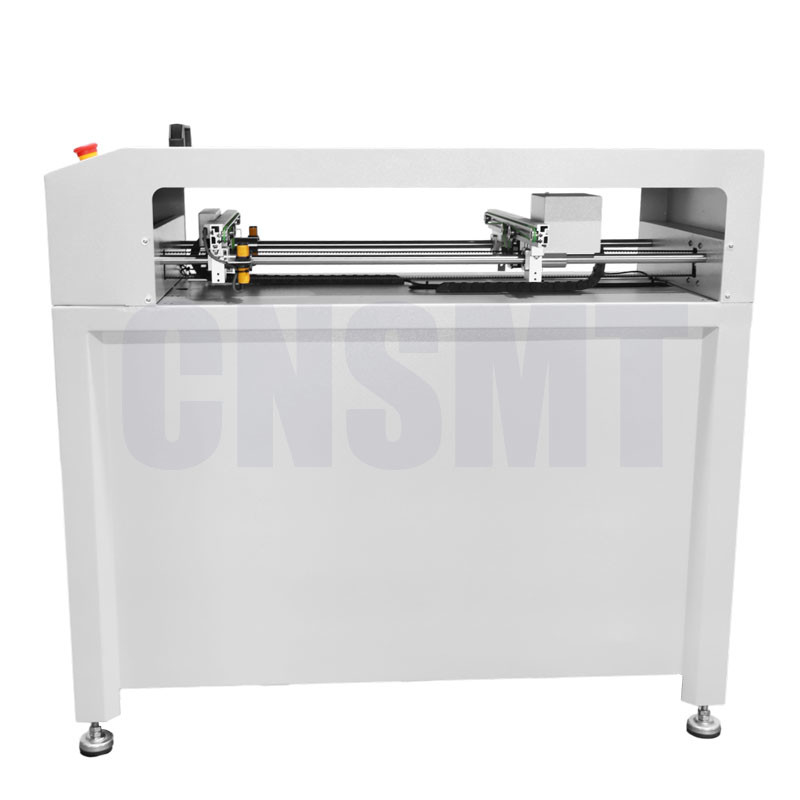

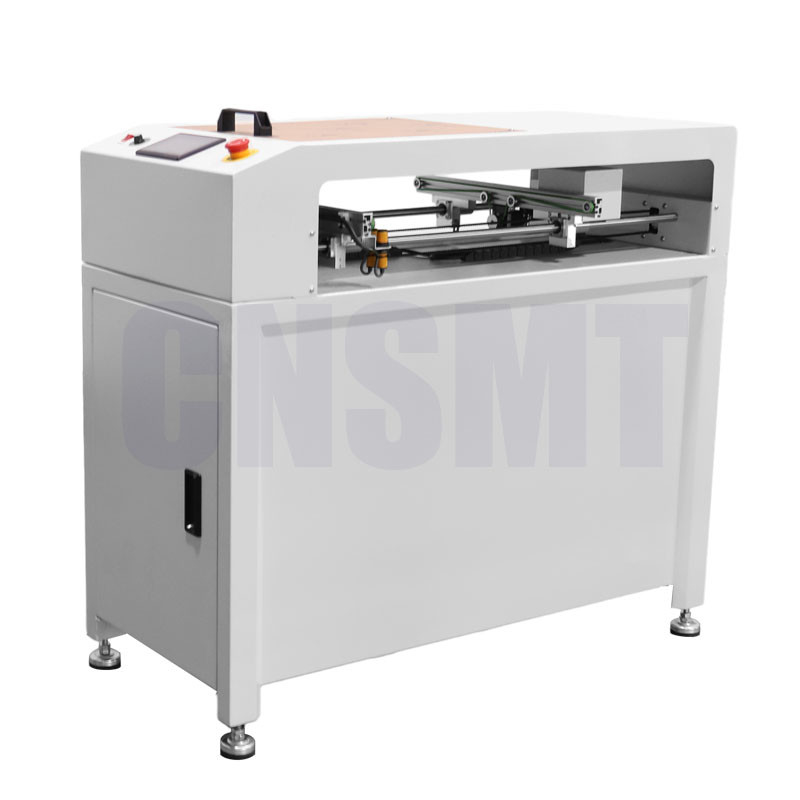

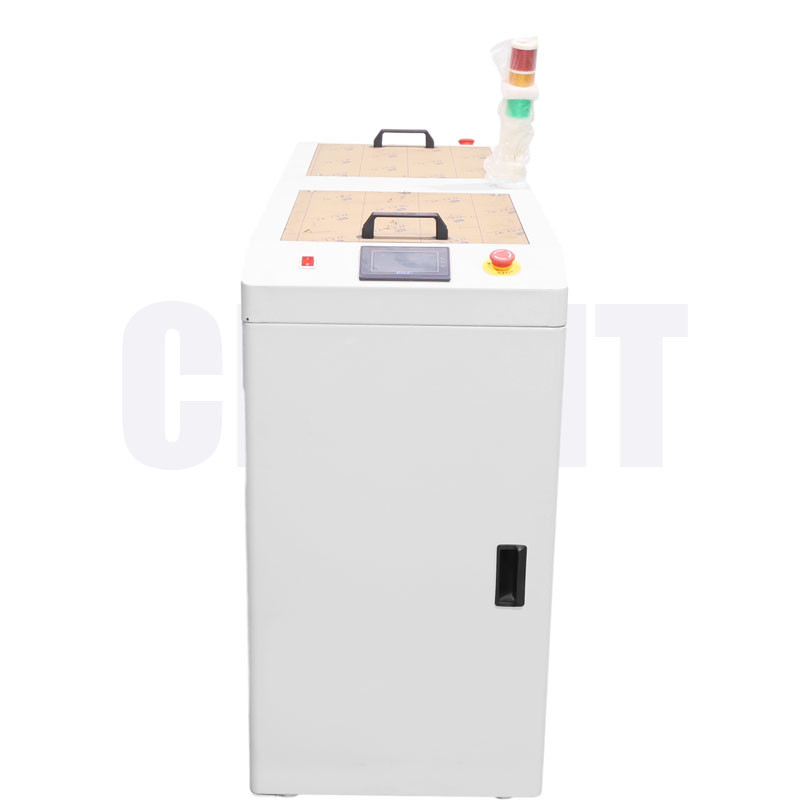

PCB transfer machine Technical parameter : Background technology: Transplanting machine is a kind of auxiliary equipment in industrial automatic production line, which is mainly used for the transfer of PCB board.With the increasing labor cost and the increasing market demand, the traditional...
Fecture:
| Item | PCB transfer machine |
| Dimension | L1200*W1300*H1200mm |
| Frame | Made by thick sheet metal |
| Guide rail | Made of special aluminum material, adjustment width is 50～300mm, adjusted by manual. |
| Working height | 920±20mm |
| Orbital transmission power | Stepper motor |
| Translational power | Stepper motor |

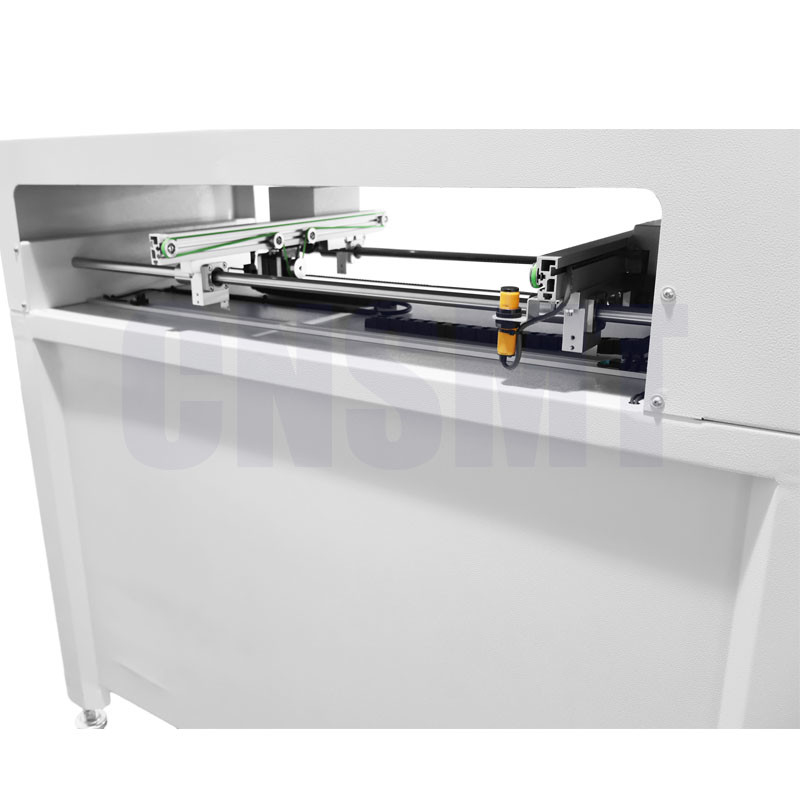

| Parallel transfer device | Imported timing belt + linear guide, the fastest 10S/PCS |
| Operation panel | Touch screen |

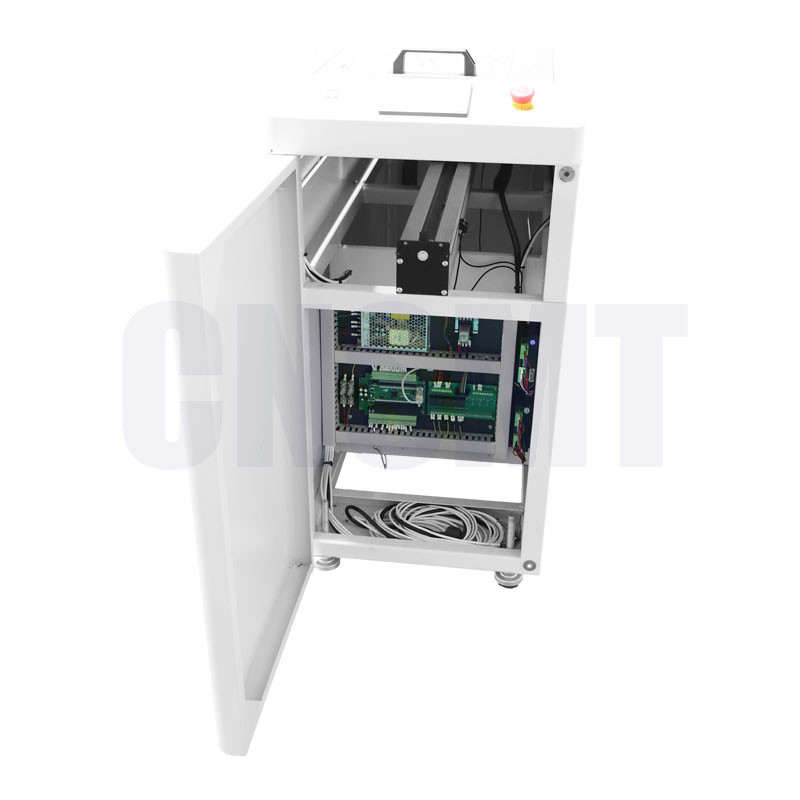

| Controller | Mitsubishi PLC programmable controller |
| Control box | 1 sets |
| Origin | China |
Background:
The transplanting machine is regarded as an auxiliary apparatus within industrial automatic production lines, primarily deployed for the transportation of PCB boards. Due to the escalating costs of manual labor and mounting market requirements, the conventional transplanting machine equipment is no longer able to meet the current production demands.The transfer function that has been introduced does not depend on manual labor and accomplishes automated transportation. Contrary to conventional transfer machines that possess a significant size and occupy area, our organization's transfer machine exhibits compact dimensions, advanced efficiency, and space conservation.
About our Survice:
The machine will be encased in protective materials and placed in a durable cardboard box. Any additional parts or accessories will be securely packaged alongside the machine.
ShippingOur preferred method of shipping for the SMT Line Machine is through a reputable courier service. An estimated delivery time will be provided to you during the checkout process. Please be aware that international orders may incur additional shipping fees.
If you have any specific shipping requirements, please reach out to our customer service team, and we will make every effort to accommodate your needs.
Tracking Your Order
Once your order has been dispatched, you will receive an email containing a tracking number. This will enable you to monitor the progress of your package and obtain an estimated delivery date.
Should you have any inquiries or concerns regarding your order, please do not hesitate to contact us. Our aim is to ensure the secure and timely arrival of your SMT Line Machine.
We would like to express our gratitude for selecting our SMT Line Machine.
We trust that it will enhance the efficiency and productivity of your production line.
Our products are sold all over the world, you can rest assured.
