|Product Name:||PANASONIC AVK2 DIP INSERT MACHINE||Keywords:||PANASONIC AVK2 MACHINE|
|Application:||AI Production Line||Supplier:||CNSMT|
smt assembly machine,
smt aoi machines
PANASONIC AVK2 DIP INSERT MACHINE, Your Best AVK INSERT Equipment

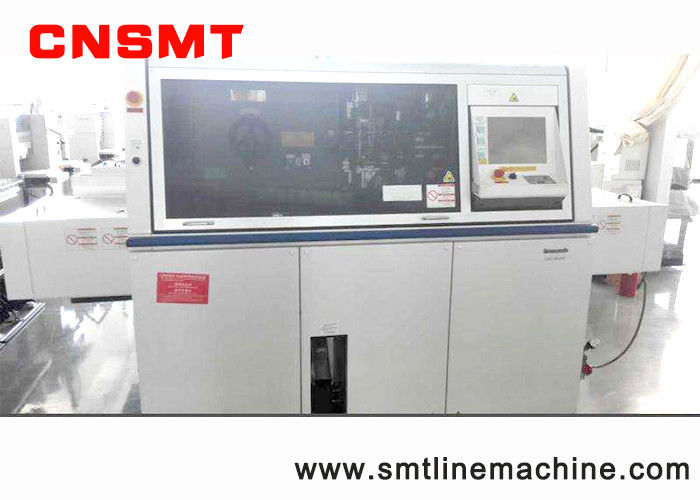

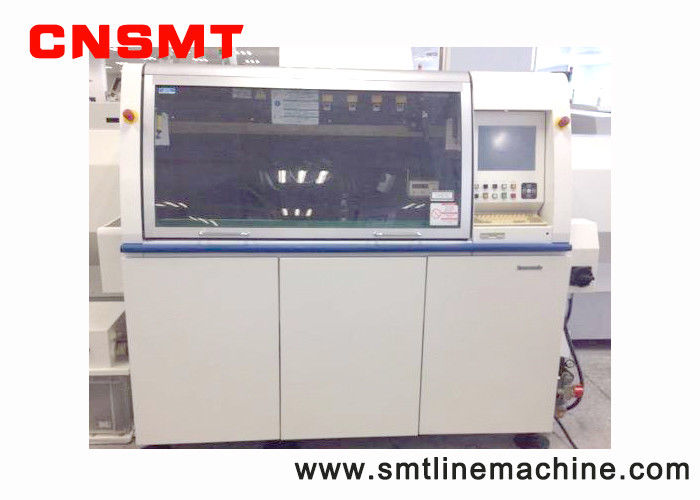

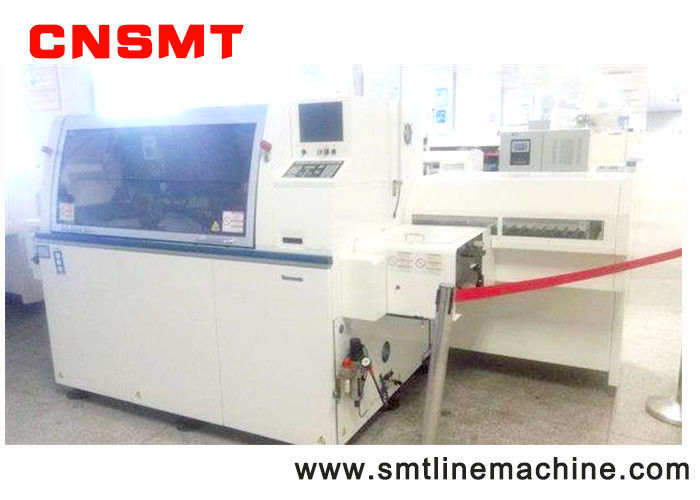

Product Name:PANASONIC AVK2 DIP MACHINE
Related Products:PANASONIC AVF AVB AVK RHS RHL Horizontal and vertical MACHINE pansert machine av avk avkii avkiii av131 ag131 jvk jvk22 jvkiii rh3 rh5 rhs ai Automatic insertion MACHINE
|Panasonic AVK2B detailed tracing method of fully automatic horizontal plug-in machine;|
|substrate size (mm) 50x50 ~ 508x381mm|
|plug-in speed 0.15 seconds /|
|component plug-in direction 4 directions (0 °, 90 °, 180 °, 270 °)|
|Insertion range 26mm bandwidth: 5 -15mm; 52mm|
|Jumper bandwidth: 5-26mm|
|Equipped with material holder 60 + 60 + JW station component type fixed resistance, capacitor, ceramic capacitor, diode and jumper|
|power supply 3P / 200V / 4KVA|
|air pressure source 120L / min|
|Overall dimensions (mm) 4,050x1,900x1,590mm|
A Auto-insertion machine is a machine that automatically installs taped electronic components on a printed circuit board according to a program. The traditional electronic assembly industry mainly relies on workers to insert electronic components on circuit boards. Since the machine started mass production,
the speed of manual insert is slow, and the defects of poor process are exposed. Using the plug-in machine to automatically install electronic originals on the circuit board can save labor costs and improve the level of plug-in technology.
The operation of the plug-in machine basically includes such components as capacitors, inductors, connectors, etc.
The engineering personnel of the design process will divide the plug-in parts of each station according to the workload and rationality, and each machine is only responsible for installation Several originals, and repeat the same operation to minimize the chance of error.
Plug-in machine category editing
The jumper plug-in machine can selectively and automatically insert electronic components into the conductive through holes of the printed circuit board.
Siamese horizontal plug-in machine is a high-speed, high-precision, high-performance equipment. It is a new generation of horizontal joint machine independently developed and produced by our company. It integrates the essence of our second-generation sequential orchestration machine and horizontal plug-in machine. In one machine, it can arrange different kinds of braided components (carbon film resistors, diodes, cylindrical capacitors and other components) on the chain material clips according to the set program order for the plug-in head. This device is to fix the plug head horizontally, and move the X and Y mechanism to realize the precision plug in each area of the PCB board. The angle of the plug is realized by the rotation of the turntable. This series of control software and operation software are also independently developed by our company, and all operations are controlled by one computer.
Combines the functions of the jumper plug-in machine and the horizontal component plug-in machine, and the unique servo control system completes the perfect process of the jumper and horizontal component mixed plug-in, effectively saving the amount of jumper.
The perfect effect of high speed and high density, the independent plug-in machine brings you flexible deployment of production arrangements. The upgradeable WINDOWS system lays a good foundation for speeding up the updating of your equipment. The simple and easy-to-understand operation interface realizes the dialogue between the man-machine interface and the combination of practical experience and scientific theory to improve product quality and production efficiency.
The latest and most practical vertical machine, independent multiple sets of servo control system, complete high-stable plug-in performance.
To achieve the perfect effect of high speed and high density, the upgradeable WINDOWS system lays a good foundation for your equipment update speed.
The easy-to-understand operation interface realizes the dialogue between man-machine interface, and the combination of practical experience and scientific theory brings you the improvement of product quality and production efficiency.
LED special plug-in machine basic research and development specializes in LED bulk components, such as flange round LED (including flat head and ball head), flat LED and so on. Used in LED series (lighting, display screen, control system, car lights, luminous characters, energy-saving lamps, Gaoye lighting, street lamps, searchlights, ballasts) and other products
