Product Name:KHY-M7152-00 01 YS12/YG12 EJECTOR FOR YAMAHA YS24 Pick and plce machine

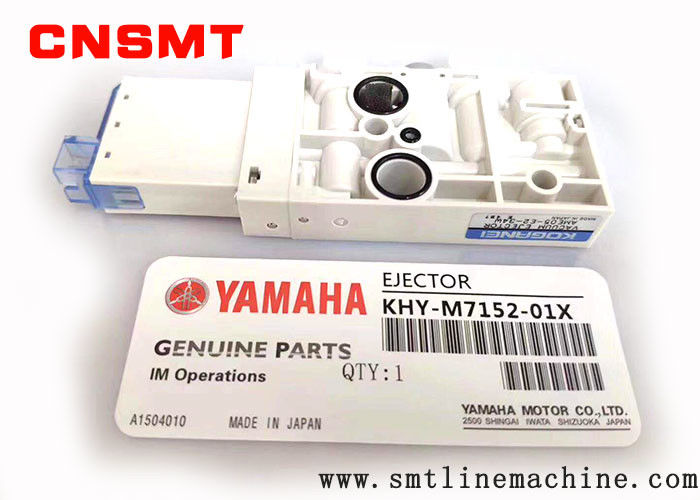

PN:KHY-M7152-00 KHY-M7152-01X AME05-E2-34W+21w
Application:SMT YAMAHA YS12 YS24 YG12 YG12F YS12F Pick and place machine

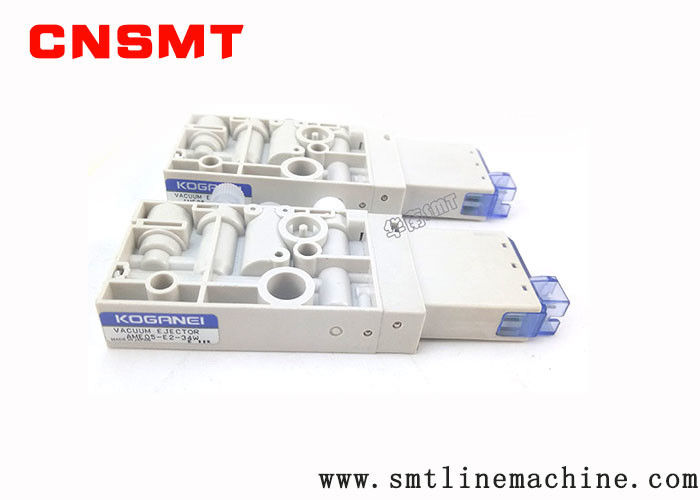

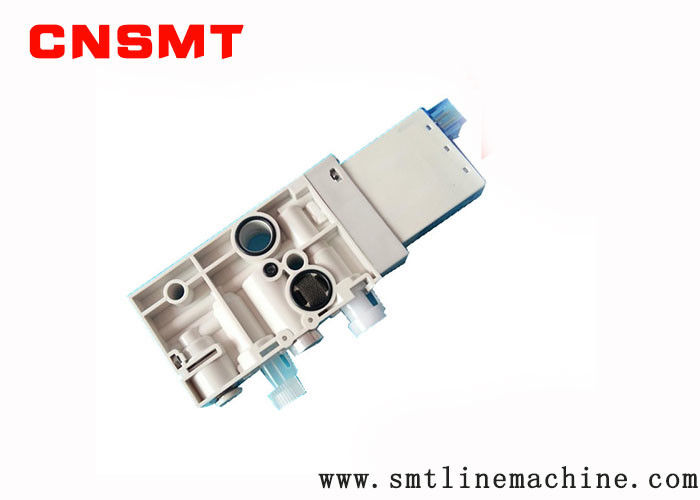

CNSMT is your TOP1 KHY-M7152-00 Ejector supplier in China, KHY-M7152-00 is used for yamaha ys12 or ys24 pick and place machine head ,its a ejector and value full set, KHY-M7152-00 include KHY-M7153-00/JA10AA-21W and AME05-E2-34W, They are the most important yamaha spare parts for yamaha pick and place machine
If your machine vacuum not enough or lower than normal level, you can check KHY-M7152-00 ejector or KHY-M7154-00 bit ,confirm if these parts working well,if KHY-M7152-00 vacuum lower than 150 ,then must replace this part,cause lower vacuum will miss plenty of electronics componets while mounting,So KHY-M7152-00 is very important for your machine
On the other hand, KHY-M7153-00/JA10AA-21W is the most important part of KHY-M7152-00, Sometimes, you just need replace KHY-M7153-00 is ok, the base AME05-E2-34W no need change, AME05-E2-34W few issue,and AME05-E2-34W is more expensive than KHY-M7153-00,So only replace KHY-M7153-00 Will greatly save your budget,its a economy option for you
Last:cnsmt has a years of experience of smt yamaha field, we have professional engineer for smt solution, if you dont know to repalce KHY-M7152-00 OR KHY-M7153-00 These parts, our engineer can teach you on words or vedios,we are the strongest KHY-M7152-00 supplier in china, we both supply china made and japan made AME05-E2-34W KHY-M7152-00 EJECTOR for you , china made more cheaper than japan made, both of then are avaible in our factory,
CNSMT also supply used and new smt yamaha pick and place machine like:yamaha yv100x yv100xg yv180xg yg12 yg12f ys12 ys12 ys24 ysm10 ysm20 ysm40 pick and place machine , welcome to visit our factory, we are in shenzhen city of china
Relative parts
| KHY-M7151-00 EJECTOR,RESIN 1 |
| 1-1 KHY-M7151-01 EJECTOR,RESIN 1 (2008/12/26) MEY0069 OK |
| 2 KHY-M4592-01 VAC SENSOR BRD ASSY 1 3 KHY-M71CA-00 COVER,VAC SENSOR 1 4 $TL10-01 JOINT 2 5 90563-23J060 SPACER 4 6 91312-03005 BOLT HEX.SOCKET HEAD 6 M3X5 |
| 7 KHY-M7152-00 EJECTER 1 |
| 7-1 KHY-M7152-01 EJECTER 1 (2008/12/26) MEY0069 OK |
| 8 KHY-M7153-00 VALVE 1 9 KHY-M7154-00 BIT 1 |
| 9-1 KHY-M7154-01 BIT 1 (2008/12/26) MEY0069 NG |
| 10 KHY-M7155-00 FILTER CAP 1 |
| 11 KHY-M7156-00 BIT CAP 1 |
| 11-1 KHY-M7156-01 BIT CAP 1 (2008/12/26) MEY0069 OK |
| 12 K46-M8527-C0 FILTER 1 |
| 13 90990-17J010 ORING 2 |
| 14 KHY-M71G5-A0 Z UNIT ASSY. 5 |
| 15 KHY-M71G5-A5 Z UNIT ASSY. 5 |
| 16 KHY-M71G1-00 SIDE PLATE,R 1 |
| 17 KHY-M71G2-00 SIDE PLATE,L 1 |
| 18 KHY-M71G3-00 SHAFT 1 2 |
| 19 KHY-M71G6-00 PLATE,HARNESS 1 |
| 20 KHY-M71H3-00 TAPE,Z-UNIT 1 |
| 21 90990-28J078 WASHER,PLAIN 4 |
| 22 91312-03006 BOLT HEX.SOCKET HEAD 4 M3X6 |
| 23 91312-05014 BOLT HEX.SOCKET HEAD 8 M5X14 |
| 24 99480-04008 PIN,PARALLEL:4X8 2 |
| 25 90K41-000720 LABEL, |
