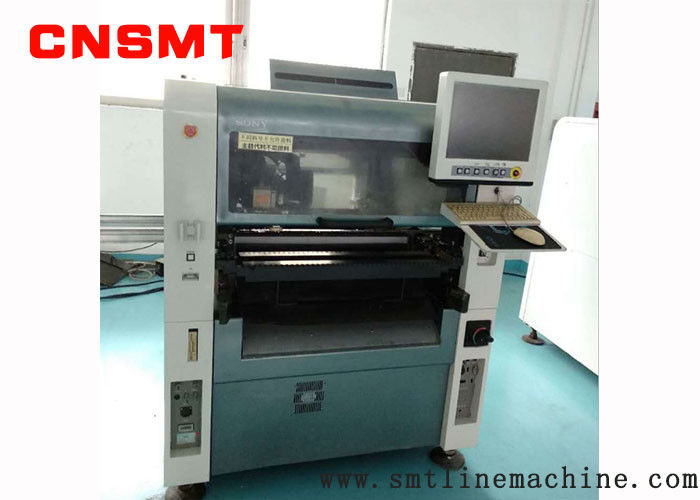

1 Head 12 Nozzles 2.3 KW Pick And Place Machine CNSMT SONY F130 F209 E1000 G200

1 Head 12 Nozzles 2.3 KW Pick And Place Machine CNSMT SONY F130 F209 E1000 G200

1 Head 12 Nozzles 2.3 KW Pick And Place Machine CNSMT SONY F130 F209 E1000 G200

Product Details:

Place of Origin: China
Brand Name: CNSMT
Certification: CE
Model Number: SONY F130 F209

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Woodenbox
Delivery Time: 1-2 work days
Payment Terms: T/T, Western Union,paypal
Supply Ability: 10pcs/day
Contact Now
Detailed Product Description
Product Name: SONY F130 F209 Dimensions: 1,450 X 1,650 X 1,500
Voltage:: 110V/220V Weight: 1650Kg
Lead Time: 1-2days Application: Smt Pick And Place Machine

CNSMT SONY F130 F209 E1000 G200 USED pick and place machine low cost for smt factory smt led line machine

CNSMT SONY F130 F209 E1000 G200 USED pick and place machine low cost for smt factory smt led line machine

Specification:

model Sony F130 technical parameters
Substrate size 50mm*50mm-460mm*360mm-1200mm
Substrate thickness 0.5mmto2.6mm
Number of placement heads 1 head 12 nozzles
Mounting range 0402 (01005)-12mmIC (mobile camera)
  6mm-25mmIC (fixed camera)
Component height Max: 6mm
Patch speed 0.139 seconds (25900CPH)
Mounting accuracy 50um (CPK1.0 or above)
power supply AC3 phase 200V ± 10%, 50/60HZ, power consumption 2.3 kW
Air consumption 0.49MPA50L//min
physical dimension 1220mm*1400mm*1545mm
weight 1560KG
SI-F130 Dimensions:
5
Sony SI-G200AA high speed placement machine
Model Sony SI-G200AA technical parameters
Substrate size 50x50-460x410mm- (after modification) 1200mm
Substrate thickness 0.5mmto2.6mm
Number of placement heads 24 nozzle / 2 placement head (12 nozzle / 1 placement head)
Mounting range 0402 (01005)-12mmIC (mobile camera)
  6mm-25mmIC (fixed camera)
Component height Max: 6mm
Patch speed 45,000 CPH (0.08S/2 placement head)
Mounting accuracy ±45um (CPK1.0 or higher)
power supply AC3 phase 200V ± 10%, 50/60HZ, 2.1KVA
Air consumption 0.49Mpa0.5L/min
physical dimension 1220mm*1400mm*1545mm
weight 2,300kg
model Sony G200AA technical parameters
Types of: High speed head
Substrate size 50x50-460x410mm
Placement head 16 nozzle / 2 placement head (8 nozzle / 1 placement head)
Corresponding part 0402-□12mm (moving camera) □6mm-□25mm (fixed camera) height 6mm
Mounting speed 22,500CPH (0.16S/2 placement head)
Mounting accuracy ±40um
Power / power consumption AC3 phase 200V ± 10%, 50/60HZ, 2.1KVA
Air pressure Consumption: 0.49Mpa0.5L/min
Several sizes 1,220 (w) x 1,850 (D) x 1,575 (H) mm (without signal tower and tray)
weight 2,300kg


6. WE HAVE PROFESSIONAL ENGINEER TEAM
5. Manufacuture of SMT FEEDERS AND NOZZLES
4. BUY AND SELL USED EQUIPMENT1. SMT FULL LINE SOLUTIONService:5.WE sell and buy used equipmentS long-term4.100%T/T before shipment OR 30%T/TADVANCE,Banlance 70% before shipment, after we shipped the goods, we will email you the shipping information3. Item shipped from china mainland using airmail by EMS, UPS, DHL, TNT or Hong Kong post, we accept the customer’s shipping request2. Most orders ship within 1~7days after payment1. We ship to world wideShipment:Delivery time:Within 1~3 working daysPackaging details:VACUUM&WOODENBOXPackaging & Shipping3. AI INSERT MACHINE, SMT PERIPHERY EQUIPMENT SUPPLIER
2. SMT PRINTER,PICK AND PLACE MACHINE,REFLOW OVEN,CONVEYOR,AOI,SPI,LOADER AND UNLOADER SUPPLIER

Company Information:
Shenzhen SMTLINE Technology Co., Ltd. was established in June 2005
1.registered capital of 6 million yuan and more than 60 employees.
2.The company's core personnel of the professional R&D team have 15 years of automated R&D and manufacturing experience.
3.Our company has developed and mass-produced refow oven and wave welding machine at the end of 2010. The machine is the first in the country.
4.The sales volume of products reached more than 200 units in half a year.
5.Our philosophy: integrity, strength first, wholeheartedly for the customer.
6.Our company adhering to the customer first, service-oriented business philosophy,
benign competition, will continue to work hard to learn, so that more customers to use the quality and cheap SMT china high-end equipment, for customers to save labor costs, factory costs.



Business Scope:
1.Buy and sells SMT pick and place machines(YAMAHA JUKI FUJI,SAMSUNG,PANASONIC,PHILIPS,SIEMENS,ASSEMBLON,Mirae, SONY,...
2.SMT Full-auto printer&semi-auto printer
3.SMT reflow oven& wave solder machine
4.SMT loader and unloader
5.SMT conveyor
6.AOI, SPI
7.SMT peripheral equipment.
8.Insert machine
9.Machine spare parts such as feeders nozzles
10.Full line solution service
