Ysm10 Ysm20r 50000cph 0201-QFN Component Smt Assembly Line High Speed 110V/220V

Ysm10 Ysm20r 50000cph 0201-QFN Component Smt Assembly Line High Speed 110V/220V

    • Ysm10 Ysm20r 50000cph 0201-QFN Component Smt Assembly Line High Speed 110V/220V
    • Ysm10 Ysm20r 50000cph 0201-QFN Component Smt Assembly Line High Speed 110V/220V
  • Ysm10 Ysm20r 50000cph 0201-QFN Component Smt Assembly Line High Speed 110V/220V

    Product Details:

    Place of Origin: China
    Brand Name: CNSMT
    Certification: CE
    Model Number: ysm20 pick and place machine

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: Woodenbox
    Delivery Time: 1-2 work days
    Payment Terms: T/T, Western Union,paypal
    Supply Ability: 10pcs/day
    Contact Now
    Detailed Product Description
    Product Name: Ysm10 Pick And Place Machine Dimensions: 1650*1508*1900MM
    Voltage:: 110V/220V Weight: 1600Kg
    Lead Time: 1-2days Application: Smt Pick And Place Machine

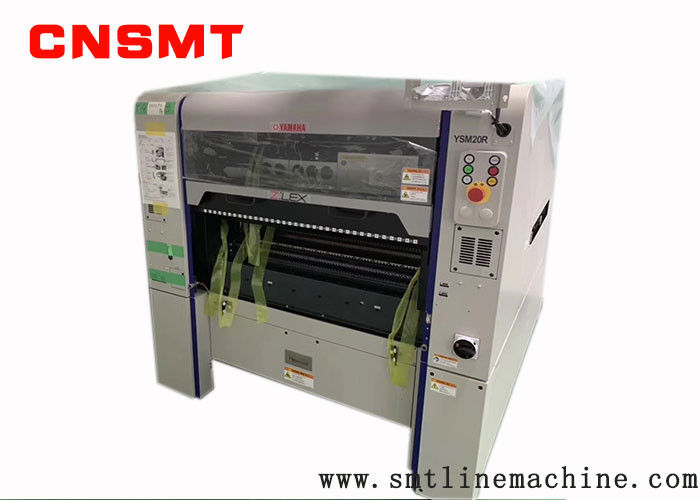

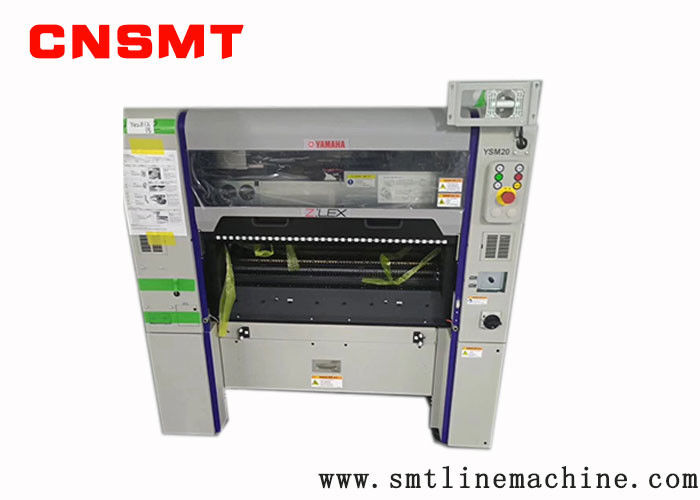

    CNSMT sell and rent yamaha high speed ysm10 ysm20r 50000cph 0201-QFN component smt line machine

    CNSMT sell and rent yamaha high speed ysm10 ysm20r 50000cph 0201-QFN component smt line machine


    Keyword
    Mirae best pick and place machine
    pick and place machine manufacturers
    smt machine price
    pick and place machine programming
    smt pick and place process
    smt feeder size
    smt feeder maintenance
    smt feeder types
    smt machine operator
    smt machine wheels
    best pick and place machine
    fuji smt machine
    smt machine manufacturers
    smt machine programming
    smt machine operator training
    smt machine full form

    Specification:

    YSM10
    Target substrate size
    L510 x W460 mm ~ L50 x W50 mm
    ※With optional accessories, it can correspond to L610mm substrate
    Mounting ability
    HM head (10 nozzles) specifications
    HM5 head (5 nozzles) specifications
    46,000 CPH (under the company's conditions)
    31,000 CPH (under the company's conditions)
    Mountable component
    03015 ~ W55 x L100mm (over W45mm for segmentation recognition), height less than 15mm
    ※ If the component height exceeds 6.5mm, or the component size exceeds 12mm x 12mm, you need to select multi-vision camera (optional configuration)
    Mounting accuracy
    Company conditions (when using standard components for evaluation)
    ±0.035mm (±0.025mm) Cpk≧1.0 (3σ)
    Number of feeders that can be installed
    Fixed feeder frame: up to 96 (converted in 8mm strip)
    Tray: 15 kinds (when equipped with sATS15, JEDEC)
    Power Specifications
    Three-phase AC 200/208/220/240/380/400/416V ±10% 50/60Hz
    Supply air supply
    0.45MPa or more, clean and dry
    Dimensions
    L1, 254 x W1, 440 x H1, 445mm
    Body weight
    About 1,270kg



    Target substrate size Two-stage transfer table model (only for X-axis models with X-axis specifications)
    When transferring one substrate: L810×W490 to L50×W50
    When transferring 2 substrates: L380×W490 to L50×W50
    Monorail model L810×W490 ~ L50×W50
    Double rail model L810×W230 ~ L50×W50
    Mounting capability High-speed universal (HM) placement head × 2
    90,000 CPH (under the company's good conditions)
    Mounting accuracy
    When the company's good conditions (using standard components for evaluation) are ±0.035mm (±0.025mm) Cpk≧1.0 (3σ)
    Mounting head, mountable components High-speed universal (HM) head: 03015~45×45mm L100mm, height less than 15mm
    ※ Depending on the height and size of the components, multiple vision cameras may be required (optional configuration)
    Shaped (FM) head: 03015 ~ 55 × 55mm L100mm, height below 28mm
    Number of feeders that can be installed Fixed feeder frame: 140 more (in 8mm tape)
    Disposable refueling truck : 128 more (converted by 8mm strip)
    Pallet exchanger: 30 sheets (fixed type) 10 sheets (feeding type)
    Power Specifications Three-phase AC 200/208/220/240/380/400/416V ±10% 50/60Hz
    Supply gas source 0.45MPa or more, quiet and dry
    Dimensions L 1,374×W 1,857×H1, 445 mm (excluding protrusions)
    Weight about 2,050kg




    1. SMT FULL LINE SOLUTIONService:5.WE sell and buy used equipmentS long-term4.100%T/T before shipment OR 30%T/TADVANCE,Banlance 70% before shipment, after we shipped the goods, we will email you the shipping information3. Item shipped from china mainland using airmail by EMS, UPS, DHL, TNT or Hong Kong post, we accept the customer’s shipping request2. Most orders ship within 1~7days after payment1. We ship to world wideShipment:Delivery time:Within 1~3 working daysPackaging details:VACUUM&WOODENBOXPackaging & Shipping3. AI INSERT MACHINE, SMT PERIPHERY EQUIPMENT SUPPLIER
    2. SMT PRINTER,PICK AND PLACE MACHINE,REFLOW OVEN,CONVEYOR,AOI,SPI,LOADER AND UNLOADER SUPPLIER

    4. BUY AND SELL USED EQUIPMENT
    5. Manufacuture of SMT FEEDERS AND NOZZLES
    6. WE HAVE PROFESSIONAL ENGINEER TEAM
    Company Information:
    Shenzhen SMTLINE Technology Co., Ltd. was established in June 2005
    1.registered capital of 6 million yuan and more than 60 employees.
    2.The company's core personnel of the professional R&D team have 15 years of automated R&D and manufacturing experience.
    3.Our company has developed and mass-produced refow oven and wave welding machine at the end of 2010. The machine is the first in the country.
    4.The sales volume of products reached more than 200 units in half a year.
    5.Our philosophy: integrity, strength first, wholeheartedly for the customer.
    6.Our company adhering to the customer first, service-oriented business philosophy,
    benign competition, will continue to work hard to learn, so that more customers to use the quality and cheap SMT china high-end equipment, for customers to save labor costs, factory costs.



    Business Scope:
    1.Buy and sells SMT pick and place machines(YAMAHA JUKI FUJI,SAMSUNG,PANASONIC,PHILIPS,SIEMENS,ASSEMBLON,Mirae, SONY,...
    2.SMT Full-auto printer&semi-auto printer
    3.SMT reflow oven& wave solder machine
    4.SMT loader and unloader
    5.SMT conveyor
    6.AOI, SPI
    7.SMT peripheral equipment.
    8.Insert machine
    9.Machine spare parts such as feeders nozzles
    10.Full line solution service
