70000CPH SMT Pick And Place Machine 16/12/8 Head Nozzle Surface Mounter CNSMT Panasonic NPM NPM-W W2 W3

70000CPH SMT Pick And Place Machine 16/12/8 Head Nozzle Surface Mounter CNSMT Panasonic NPM NPM-W W2 W3

    • 70000CPH SMT Pick And Place Machine 16/12/8 Head Nozzle Surface Mounter CNSMT Panasonic NPM NPM-W W2 W3
    • 70000CPH SMT Pick And Place Machine 16/12/8 Head Nozzle Surface Mounter CNSMT Panasonic NPM NPM-W W2 W3
  • 70000CPH SMT Pick And Place Machine 16/12/8 Head Nozzle Surface Mounter CNSMT Panasonic NPM NPM-W W2 W3

    Product Details:

    Place of Origin: China
    Brand Name: CNSMT
    Certification: CE
    Model Number: NPM NPM-W W2 W3 pick and place machine

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: Woodenbox
    Delivery Time: 5-7 work days
    Payment Terms: T/T, Western Union
    Supply Ability: 10pcs/day
    Contact Now
    Detailed Product Description
    Product Name: NPM NPM-W W2 W3 Pick And Place Machine Dimensions: W1235mm×D2652mm*3×H1444mm*4
    Voltage:: 110V/220V Weight: 2220Kg
    Lead Time: 1-2days Application: Smt Pick And Place Machine

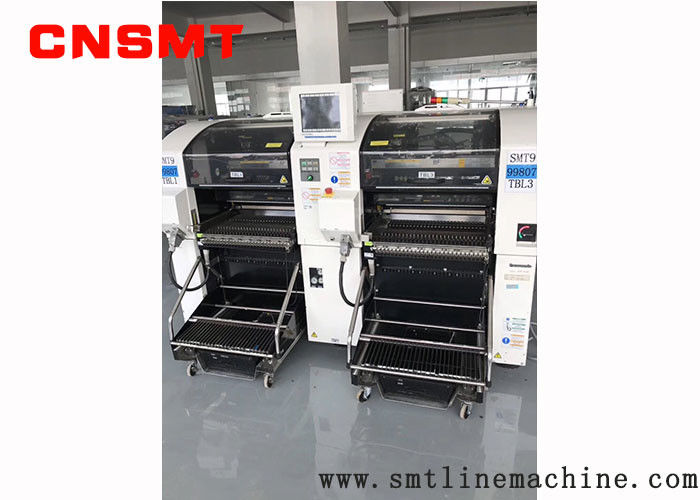

    CNSMT Panasonic NPM NPM-W W2 W3 pick and place machine 70000CPH 16/12/8 HEAD NOZZLE Surface mounter

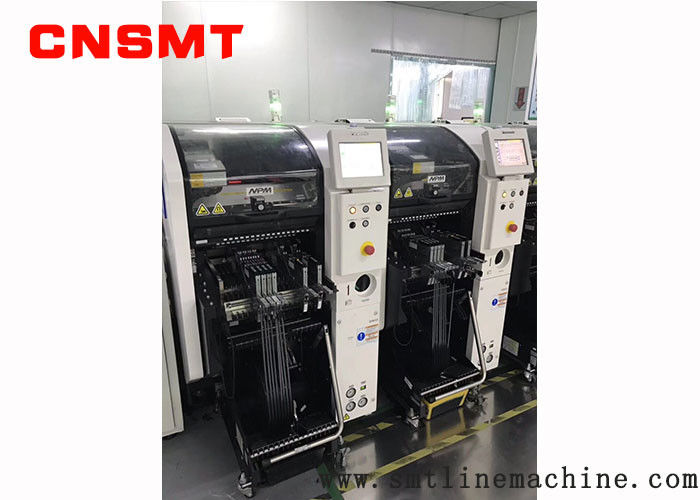

    CNSMT Panasonic NPM NPM-W W2 W3 pick and place machine 70000CPH 16/12/8 HEAD NOZZLE Surface mounter

    Specification:

    First, ‘Panasonic Panasonic machine NPM-W, Panasonic Panasonic high-speed modular placement machine NPM-W placement machine ’ parameters:

    Model name: NPM-W (Panasonic module mounter, Panasonic high-speed mounter, Panasonic modular mounter)

    Model name: NPM-W

    Substrate size 750 × 550mm
    Monorail*1
    Overall installation: L50mm × W50mm ~ L750mm × W550mm
    2 positions: L50mm × W50mm ~ L350mm × W550mm
    Double track*1
    Monorail transmission: L50mm × W50mm ~ L750mm × W510mm
    Double rail transmission: L50mm × W50mm ~ L750mm × W260mm

    Substrate replacement time
    Monorail*1
    Overall mounting: 4.4s (when no components are mounted on the reverse side of the substrate)
    Two positions: 2.3s (when no components are mounted on the reverse side of the substrate)
    Double track*1
    Monorail transmission: 4.4s (when no components are mounted on the reverse side of the substrate)
    Dual-track transmission: 0s** Cannot be 0s when the cycle time is below 4.4s.

    Power supply: three-phase AC200, 220, 380, 400, 420, 480V2.5kVA
    Air pressure source *2: 0.5MPa, 200L/min (A.N.R.)
    Equipment size *2: W1280mm*3×D2332mm*4×H1444mm*5
    Weight: 2250kg (only for main body: varies depending on the composition of the option.)

    Mounting head: 16 nozzle mounting head (when equipped with 2 mounting heads)
    Mounting * Fastness: 70000cph (0.051s / chip)
    IPC9850 (1608): 53800cph*8
    Mounting accuracy (Cpk≧1): ±40μm/chip
    Component size (mm): 0402 chip * 6 ~ L6 × W6 × T3
    Component supply braiding Bandwidth: 8/12/16/24/32/44/56mm
    Max, 120 even (8mm braided, double braided rack (small reel))

    Mounting head: 12 nozzle mounting head (when equipped with 2 mounting heads)
    Mounting * Fastness: 62500cph (0.058s / chip)
    IPC9850 (1608): 48000cph*8
    Mounting accuracy (Cpk≧1): ±40μm/chip
    Component size (mm): 0402 chip * 6 ~ L12 × W12 × T6.5
    Component supply braiding Bandwidth: 8/12/16/24/32/44/56mm
    Max, 120 even (8mm braided, double braided rack (small reel))

    Mounting head: 8 nozzle mounting head (when equipped with 2 mounting heads)
    Mounting* Fastness: 40000cph (0.090s/chip)
    Mounting accuracy (Cpk≧1): ±40μm/chip, ±30μm/QFP 12mm~32mm, ±50μm/QFP 12mm or less
    Component size (mm): 0402 chip * 6 ~ L32 × W32 × T12
    Component supply braiding Bandwidth: 8 ~ 56 / 72mm
    Front and rear exchange trolley specifications: Max.120 even (tape width, rack according to the left condition)
    Single tray specification: Max.86 connection (tape width, rack according to the left condition)
    Double tray specification: Max.60 connection (tape width, rack according to left condition)
    Rod shape: front and rear exchange trolley specifications: Max.14 company
    Single tray specification: Max.10
    Dual tray specifications: Max.7
    Tray: Single tray specification: Max.20
    Double tray specification: Max.40

    Mounting head: 3 nozzle mounting head ※7 (when equipped with 2 mounting heads)
    Mounting* Fastness: 11000cph (0.33s/QFP)
    Mounting accuracy (Cpk≧1): ±30μm/QFP
    Component size (mm): 0603 chip ~ L150 × W25 (diagonal 152) × T28
    Component supply braiding Bandwidth: 8~56/72/88/104mm
    Front and rear exchange trolley specifications: Max.120 even (tape width, rack according to the left condition)
    Single tray specification: Max.86 connection (tape width, rack according to the left condition)
    Double tray specification: Max.60 connection (tape width, rack according to left condition)
    Rod shape: front and rear exchange trolley specifications: Max.14 company
    Single tray specification: Max.10
    Dual tray specifications: Max.7
    Tray: Single tray specification: Max.20
    Double tray specification: Max.40

    Second, Panasonic placement machine NPM-W product features:

    1. Realize the productivity per unit area in the integrated production line
    Mount & check a consistent system for high efficiency and high quality production

    2, can correspond to large substrates and large components
    Can correspond to 750 × 550mm large substrate, the component range is also expanded to 150 × 25mm

    3, dual-track installation to achieve height per unit area productivity (select specifications)
    According to the production substrate, you can choose the "good installation", "alternative mounting", "mixed mounting"



    3. Item shipped from china mainland using airmail by EMS, UPS, DHL, TNT or Hong Kong post, we accept the customer’s shipping request2. Most orders ship within 1~7days after payment1. We ship to world wideShipment:Delivery time:Within 1~3 working daysPackaging details:VACUUM&WOODENBOXPackaging & Shipping

    4.100%T/T before shipment OR 30%T/TADVANCE,Banlance 70% before shipment, after we shipped the goods, we will email you the shipping information
    5.WE sell and buy used equipmentS long-term
    Service:
    1. SMT FULL LINE SOLUTION
    2. SMT PRINTER,PICK AND PLACE MACHINE,REFLOW OVEN,CONVEYOR,AOI,SPI,LOADER AND UNLOADER SUPPLIER
    3. AI INSERT MACHINE, SMT PERIPHERY EQUIPMENT SUPPLIER
    4. BUY AND SELL USED EQUIPMENT
    5. Manufacuture of SMT FEEDERS AND NOZZLES
    6. WE HAVE PROFESSIONAL ENGINEER TEAM
    Company Information:
    Shenzhen SMTLINE Technology Co., Ltd. was established in June 2005
    1.registered capital of 6 million yuan and more than 60 employees.
    2.The company's core personnel of the professional R&D team have 15 years of automated R&D and manufacturing experience.
    3.Our company has developed and mass-produced refow oven and wave welding machine at the end of 2010. The machine is the first in the country.
    4.The sales volume of products reached more than 200 units in half a year.
    5.Our philosophy: integrity, strength first, wholeheartedly for the customer.
    6.Our company adhering to the customer first, service-oriented business philosophy,
    benign competition, will continue to work hard to learn, so that more customers to use the quality and cheap SMT china high-end equipment, for customers to save labor costs, factory costs.
    70000CPH SMT Pick And Place Machine 16/12/8 Head Nozzle Surface Mounter CNSMT Panasonic NPM NPM-W W2 W3
    70000CPH SMT Pick And Place Machine 16/12/8 Head Nozzle Surface Mounter CNSMT Panasonic NPM NPM-W W2 W3
    70000CPH SMT Pick And Place Machine 16/12/8 Head Nozzle Surface Mounter CNSMT Panasonic NPM NPM-W W2 W3
    Business Scope:
    1.Buy and sells SMT pick and place machines(YAMAHA JUKI FUJI,SAMSUNG,PANASONIC,PHILIPS,SIEMENS,ASSEMBLON,Mirae, SONY,...
    2.SMT Full-auto printer&semi-auto printer
    3.SMT reflow oven& wave solder machine
    4.SMT loader and unloader
    5.SMT conveyor
    6.AOI, SPI
    7.SMT peripheral equipment.
    8.Insert machine
    9.Machine spare parts such as feeders nozzles
    10.Full line solution service
    Contact:
    CNSMT Electronics Equipment Co,.LTD
    Ms:Lizzy wong
    Email:Lizzy@smtlinemachine.com
    info@smtlinemachine.com
    www.smtlinemachine.com
    Mb/whatsapp/wechat:+8615915451009
    SKYPE:smtdwx
