Panasonic SMT Line Machine High Speed 0201 Chip Mounter CNSMT NPM NPM-D D2 D3

Panasonic SMT Line Machine High Speed 0201 Chip Mounter CNSMT NPM NPM-D D2 D3

    • Panasonic SMT Line Machine High Speed 0201 Chip Mounter CNSMT NPM NPM-D D2 D3
    • Panasonic SMT Line Machine High Speed 0201 Chip Mounter CNSMT NPM NPM-D D2 D3
    • Panasonic SMT Line Machine High Speed 0201 Chip Mounter CNSMT NPM NPM-D D2 D3
  • Panasonic SMT Line Machine High Speed 0201 Chip Mounter CNSMT NPM NPM-D D2 D3

    Product Details:

    Place of Origin: China
    Brand Name: CNSMT
    Certification: CE
    Model Number: npm pick and place machine

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: Woodenbox
    Delivery Time: 5-7 work days
    Payment Terms: T/T, Western Union
    Supply Ability: 10pcs/day
    Contact Now
    Detailed Product Description
    Product Name: Panasonic Pick And Place Machine Dimensions: W835mm×D2652mm*3×H1444mm*4
    Voltage:: 110V/220V Weight: 1520Kg
    Lead Time: 1-2days Application: Smt Pick And Place Machine

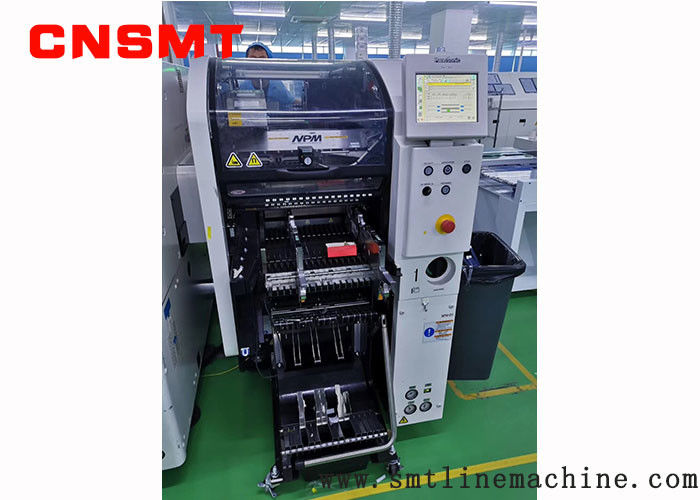

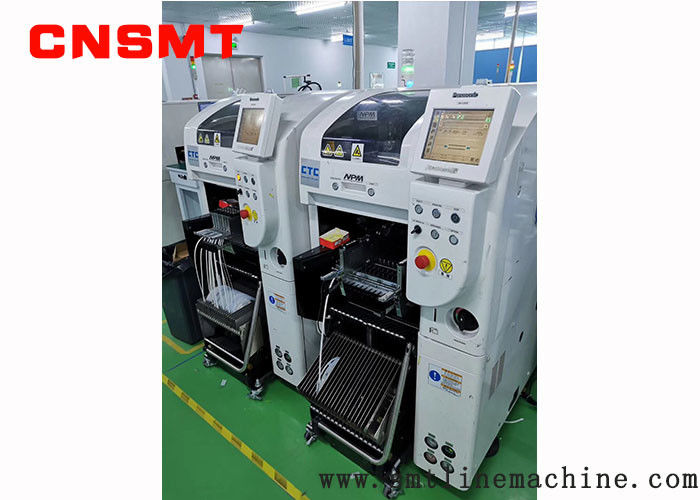

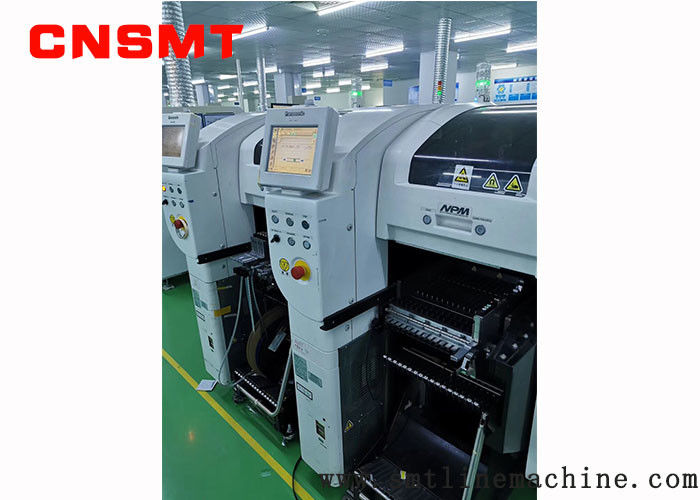

    CNSMT NPM NPM-D D2 D3 Panasonic pick and place machine used and new high speed 0201 chip mounter

    CNSMT NPM NPM-D D2 D3 Panasonic pick and place machine used and new high speed 0201 chip mounter

    Specification:

    First, Panasonic placement machine NPM-D product parameters:
    Model name: NPM-D (Panasonic module mounter, Panasonic high-speed mounter, Panasonic modular mounter)
    Substrate size
    Double rail type: L50mm×W50mm~L510mm×W300mm
    Monorail type: L50mm × W50mm ~ L510mm × W590mm
    Substrate replacement time
    Double rail type: 0s** Cannot be 0s when the cycle time is below 4.5s.
    Monorail: 4.5s
    Power supply: three-phase AC200, 220, 380, 400, 420, 480V2.5kVA
    Air pressure source *2: 0.5MPa, 100L/min (A.N.R.)
    Equipment size *2: W835mm × D2652mm * 3 × H1444mm * 4
    Weight: 1520kg (only for main body: varies depending on the composition of the option.)
    16 nozzle mounting head: (when equipped with 2 mounting heads)
    Mounting * Fastness: 70000cph (0.051s / chip)
    IPC9850: 53800cph*5
    Mounting accuracy (Cpk≧1): ±40μm/chip
    Component size (mm) 0402 chip *6~L6×W6×T3
    Component supply braiding Bandwidth: 8/12/16/24/32/44/56mm
    8mm braid: Max, 68 (double reel, small reel)

    12 nozzle placement head: (when equipped with 2 placement heads)
    Mounting * Fastness: 62500cph (0.058s / chip)
    IPC9850: 48000cph*5
    Mounting accuracy (Cpk≧1): ±40μm/chip
    Component size (mm) 0402 chip *6~L12×W12×T6.5
    Component supply braiding Bandwidth: 8/12/16/24/32/44/56mm
    8mm braid: Max, 68 (double reel, small reel)

    8 nozzle head: (when equipped with 2 heads)
    Mounting* Fastness: 40000cph (0.090s/chip)
    Mounting accuracy (Cpk≧1): ±40μm/chip, ±30μm/QFP 12mm?32mm, ±50μm/QFP 12mm or less
    Component size (mm) 0402 chip *6~L32×W32×T12
    Component supply braiding Bandwidth: 8/12/16/24/32/44/56mm
    8mm braid: Max, 68 (double reel, small reel)
    Rod shape: Max, 8 connection, tray: Max. 20 (1 tray feeder)

    2 nozzle head: (when equipped with 2 placement heads)
    Mounting* Fastness: 8500cph (0.423s/QFP)
    Mounting accuracy (Cpk≧1): ±30μm/QFP
    Component size (mm) 0603 chip ~ L100 × W90 × T28
    Component supply braiding Bandwidth: 8?56/72/88/104mm
    8mm braid: Max, 68 (double reel, small reel)
    Rod shape: Max, 8 connection, tray: Max. 20 (1 tray feeder)



    3. Item shipped from china mainland using airmail by EMS, UPS, DHL, TNT or Hong Kong post, we accept the customer’s shipping request2. Most orders ship within 1~7days after payment1. We ship to world wideShipment:Delivery time:Within 1~3 working daysPackaging details:VACUUM&WOODENBOXPackaging & Shipping

    4.100%T/T before shipment OR 30%T/TADVANCE,Banlance 70% before shipment, after we shipped the goods, we will email you the shipping information
    5.WE sell and buy used equipmentS long-term
    Service:
    1. SMT FULL LINE SOLUTION
    2. SMT PRINTER,PICK AND PLACE MACHINE,REFLOW OVEN,CONVEYOR,AOI,SPI,LOADER AND UNLOADER SUPPLIER
    3. AI INSERT MACHINE, SMT PERIPHERY EQUIPMENT SUPPLIER
    4. BUY AND SELL USED EQUIPMENT
    5. Manufacuture of SMT FEEDERS AND NOZZLES
    6. WE HAVE PROFESSIONAL ENGINEER TEAM
    Company Information:
    Shenzhen SMTLINE Technology Co., Ltd. was established in June 2005
    1.registered capital of 6 million yuan and more than 60 employees.
    2.The company's core personnel of the professional R&D team have 15 years of automated R&D and manufacturing experience.
    3.Our company has developed and mass-produced refow oven and wave welding machine at the end of 2010. The machine is the first in the country.
    4.The sales volume of products reached more than 200 units in half a year.
    5.Our philosophy: integrity, strength first, wholeheartedly for the customer.
    6.Our company adhering to the customer first, service-oriented business philosophy,
    benign competition, will continue to work hard to learn, so that more customers to use the quality and cheap SMT china high-end equipment, for customers to save labor costs, factory costs.
    Panasonic SMT Line Machine High Speed 0201 Chip Mounter CNSMT NPM NPM-D D2 D3
    Panasonic SMT Line Machine High Speed 0201 Chip Mounter CNSMT NPM NPM-D D2 D3
    Panasonic SMT Line Machine High Speed 0201 Chip Mounter CNSMT NPM NPM-D D2 D3
    Business Scope:
    1.Buy and sells SMT pick and place machines(YAMAHA JUKI FUJI,SAMSUNG,PANASONIC,PHILIPS,SIEMENS,ASSEMBLON,Mirae, SONY,...
    2.SMT Full-auto printer&semi-auto printer
    3.SMT reflow oven& wave solder machine
    4.SMT loader and unloader
    5.SMT conveyor
    6.AOI, SPI
    7.SMT peripheral equipment.
    8.Insert machine
    9.Machine spare parts such as feeders nozzles
    10.Full line solution service
