Windows Operating System SMT Line Machine CNSMT Second Hand Yamaha YG100 Yg100r Placement Device

Windows Operating System SMT Line Machine CNSMT Second Hand Yamaha YG100 Yg100r Placement Device

    • Windows Operating System SMT Line Machine CNSMT Second Hand Yamaha YG100 Yg100r Placement Device
    • Windows Operating System SMT Line Machine CNSMT Second Hand Yamaha YG100 Yg100r Placement Device
    • Windows Operating System SMT Line Machine CNSMT Second Hand Yamaha YG100 Yg100r Placement Device
  • Windows Operating System SMT Line Machine CNSMT Second Hand Yamaha YG100 Yg100r Placement Device

    Product Details:

    Place of Origin: China
    Brand Name: CNSMT
    Certification: CE
    Model Number: yg100r placement machine

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: Woodenbox
    Delivery Time: 5-7 work days
    Payment Terms: T/T, Western Union
    Supply Ability: 10pcs/day
    Contact Now
    Detailed Product Description
    Product Name: Yg100r Placement Machine Dimensions: L1650XW1562X1470
    Voltage:: 110V/220V Weight: 1600Kg
    Lead Time: 1-2days Application: Smt Pick And Place Machine

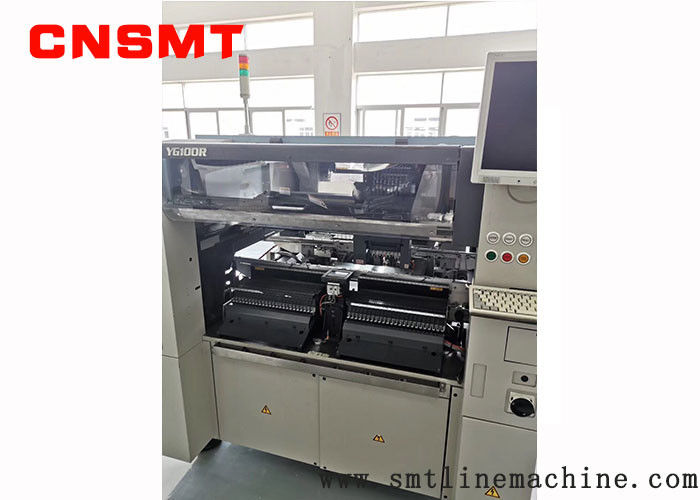

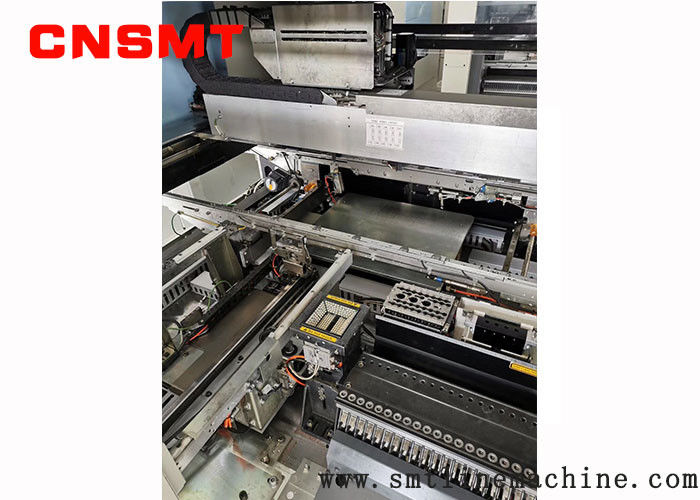

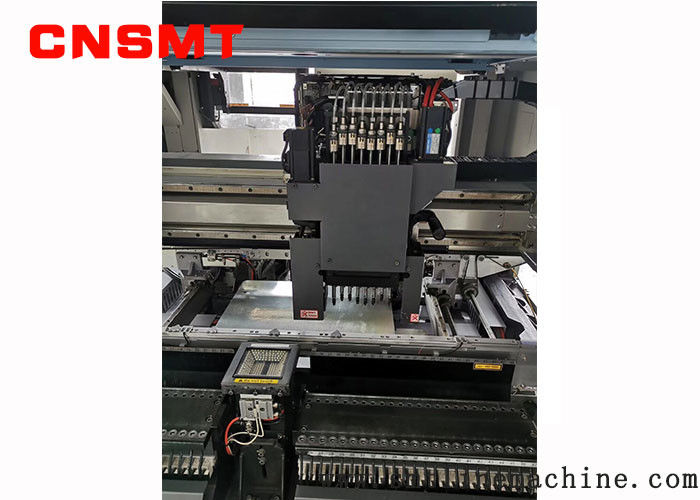

    CNSMT Second-hand Yamaha YG100 yg100r placement machine is around 2005 equipment, windows operating system

    CNSMT Second-hand Yamaha YG100 yg100r placement machine is around 2005 equipment, windows operating system

    Specification:


    Yamaha YG100 parameters
    Japan YAMAHA YGV100RA/RB Mounter:
    Patch speed: 0.15 seconds / CHIP
    Patch PCB size: L510XW440MM_L50XW50MM
    SMD component: 0402(MM)-45MMX45MM component SOP SOJ PLCC QFP BGA
    SMD components can be placed in 100 types (8MM)
    Mounter size: L1650XW1562X1470
    Mounter weight: 1630KG

    YG100RA (FNC type) / YG100RB (SF type) Model: KHW-000
    Image substrate
    L50×W50mm~L510×W460mm (Note 1) (Note 2)
    Mounting efficiency
    (optimal conditions)
    24,000 CPH/CHIP (equivalent to 0.15 sec/CHIP)
    Mounting accuracy
    (the company's standard components)
    Absolute accuracy (μ+3σ): ±0.05mm/CHIP, ±0.05mm/QFP
    Repeatability (3σ): ±0.03mm/CHIP, ±0.03mm/QFP
    Object component
    0402 (mm system name) ~ □ 55mm component, SOP/SOJ, QFP, connector, PLCC, CSP/BGA, long connector (Note 3) (Note 4) (Note 5)
    The target component height is 15mm or less (Note 6)
    Component type
    96 types (maximum, converted to 8mm tape) (Note 1)
    Power Specifications
    Three-phase AC 200/208/220/240/380/400/416 V ±10%50/60 Hz
    Gas source
    0.55MPa or more, clean and dry
    Dimensions
    (Note 7)
    L1, 650 × W1, 562 (cover end) × H1, 470mm (above the cover)
    L1, 650 × W1, 615 (total change of trolley rail end) × H1, 470mm (above the cover)
    Body weight
    Approximately 1,630kg: (main body only)
