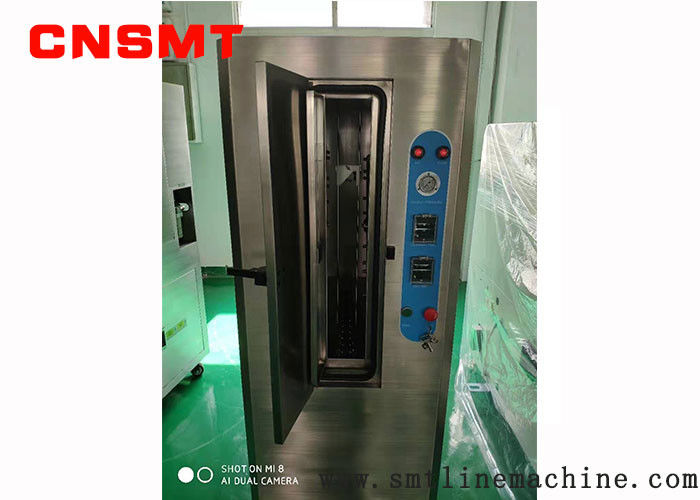

CNSMT HN-750 Automatic Electric stencil cleaning machine 736*736MM Stainless stencil Clean machine
CNSMT HN-750 Automatic Electric stencil cleaning machine 736*736MM Stainless stencil Clean machine
Specification:
Cleaning object:
SMT/SOP, printing template, SMT scraper, large size PCBA
Machine features:
◆ Fully use compressed air as energy, no electricity, no fire hazard
◆ Closed-loop cleaning: no gas or liquid leakage; good working environment
◆ High-precision 3-stage filtration system: effectively prolongs the life of cleaning agent recycling
◆ Dedicated to cleaning SM T steel mesh, P C B misprinted plate and printing machine scraper, etc.
◆ The equipment adopts precision filtration system
◆ Cleaning + air drying process to ensure cleanliness
◆ Liquid pressure can be displayed by the hydraulic gauge on the operation panel
◆ Independent exhaust unit design for lower liquid consumption
◆The whole body is made of 304 stainless steel material, which is durable, acid-resistant and alkaline.
◆ One-button operation, easy to operate, easy to clean and air dry
◆ The whole stainless steel structure is processed by wire drawing process; it is beautiful and durable, and the maintenance is more convenient.
◆ All pneumatic components of the equipment are imported original accessories; for example: pneumatic diaphragm pump, pneumatic timer, air source indicator, pressure regulating filter, etc.;
:
| Applicable steel mesh size | L750*W750*H400(mm) (large size needs to be customized) |
| Cleaning fluid capacity | 40L (maximum) |
| Optimal liquid usage | 35L |
| Cleaning method | 360° rotary cleaning fluid injection and high pressure air injection (cleaning→drying) |
| Cleaning time | 2~5 minutes (conventional process) |
| Drying time | 2~5 minutes (conventional process) |
| External air source | 0.45mpa~0.7mpa |
| Tin slag filtration | Three-stage filtering |
| Level 1 filtering | 10um (filtering impurities and labels) |
| Level 2 filtering | 5um (filter small particles and solder paste) |
| Level 3 filtering | 1um (filter small particles and rosin) |
| Exhaust port size | φ120*40H(mm) |
| Machine net weight | 200kg |
| Machine size | L945*W650*1650(mm) |
