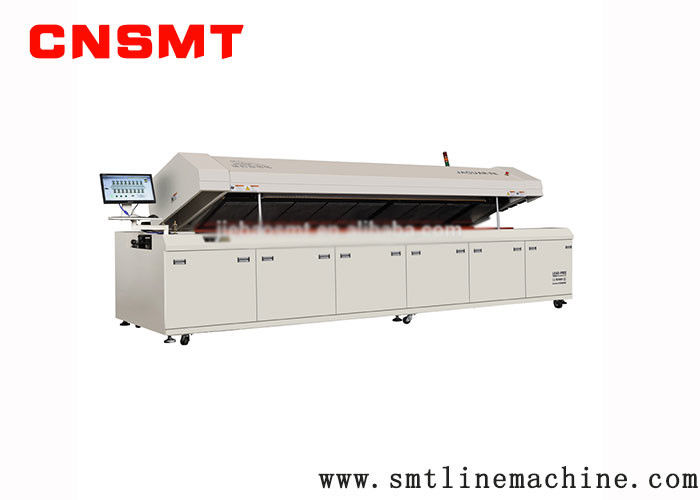

Aluminum SMT Lead Free Reflow Oven CNSMT-RF3008 Up / Down 10 For LED Driver Pcb

Aluminum SMT Lead Free Reflow Oven CNSMT-RF3008 Up / Down 10 For LED Driver Pcb

    • Aluminum SMT Lead Free Reflow Oven CNSMT-RF3008 Up / Down 10 For LED Driver Pcb
    • Aluminum SMT Lead Free Reflow Oven CNSMT-RF3008 Up / Down 10 For LED Driver Pcb
    • Aluminum SMT Lead Free Reflow Oven CNSMT-RF3008 Up / Down 10 For LED Driver Pcb
  • Aluminum SMT Lead Free Reflow Oven CNSMT-RF3008 Up / Down 10 For LED Driver Pcb

    Product Details:

    Place of Origin: china
    Brand Name: cnsmt
    Certification: CE
    Model Number: SMT reflow soldering oven

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: woodenbox
    Delivery Time: 5-7 work days
    Payment Terms: T/T, Western Union
    Supply Ability: 10pcs/day
    Contact Now
    Detailed Product Description
    Brand:: CNSMT MODEL: SMT Reflow Soldering Oven
    Weight:: 2500KG Lead Time:: IN Stork
    Packing:: Woodenbox CONdition: Working
    POWER: 110V/220 PAYMENT TERM: T/T, Paypal, Westernunion Are All Allowed

    CNSMT-RF3008 led lead free up 10 down10 Aluminum SMT reflow soldering oven for LED driver pcb

    CNSMT-RF3008 led lead free up 10 down10 Aluminum SMT reflow soldering oven for LED driver pcb






    Feature



    Model CNSMT-RF3008









    Heating System

    Number of heating zones UP 10/BOTTOM 10
    Number of cooling zones 2
    Length of heating zones 3900mm
    Heating mode hot air
    Cooling Mode Air Oven:Forced air; Nitrogen Oven: Water Chiller
    Exhaust Volume 10m³/min * 2 exhausts











    Conveyor System

    Max. Width of PCB 450mm
    Mesh belt width 500mm
    Transmission Direction L→R(or R→L)
    Transmission Net Height 900±20mm
    Transmission type Mesh and chain
    Range of rail width 0-450mm
    Conveyor speed 0-2000mm/min
    Auto/manual Lubrication standard
    Fixed rail side Front rail fixed(option: rear rail fixed)
    Components high Top and bottom 25mm

















    Control system

    Power supply 5 line 3 phase 380V 50/60Hz
    Total power 50kw
    Starting power 48kw
    Normal power consumption 10KW
    Warming time About 20 mins
    Temp. setting range Room temperature-300
    Temp. control method PID close loop control & SSR driving
    Temp. control precision ±1
    Temp. deviation on PCB ±2
    Data storage Process Data and status storage(80GB)
    Nozzle plate Aluminum Alloy Plate
    Abnormal Alarm Abnormal temp. (extra-high/extra-low temp.)
    Board dropped alarm Tower light:Yellow-warming, Green-normal, Red-abnormal



    General

    Dimension(L*W*H) 5600×1400×1550mm
    Weight 2500KG
    Color Computer gray







    Introduction:

    1. The brand computer and Siemens PLC intelligent control system, high precision temperature control is ± 1-2 ℃ (if the computer crash accident, it can realize off

    line work, do not affect production) and to ensure that the control system is stable and reliable;

    2. Windows XP operating interface with powerful and simple operation.

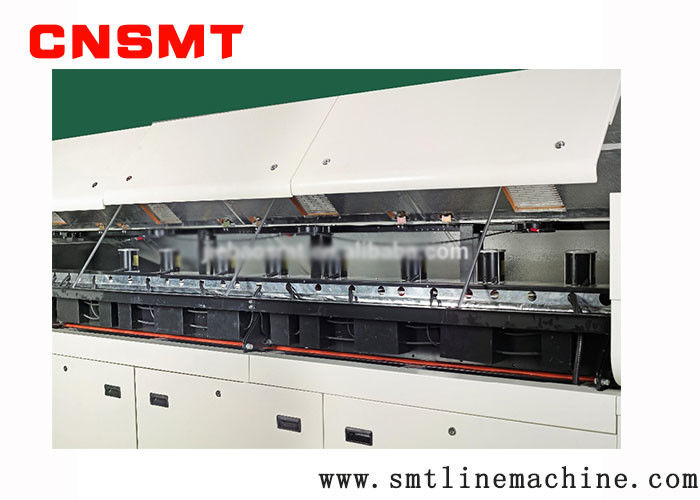

    3.In order to ensure safety and reliability, the cylinder body can be lift up automatically.

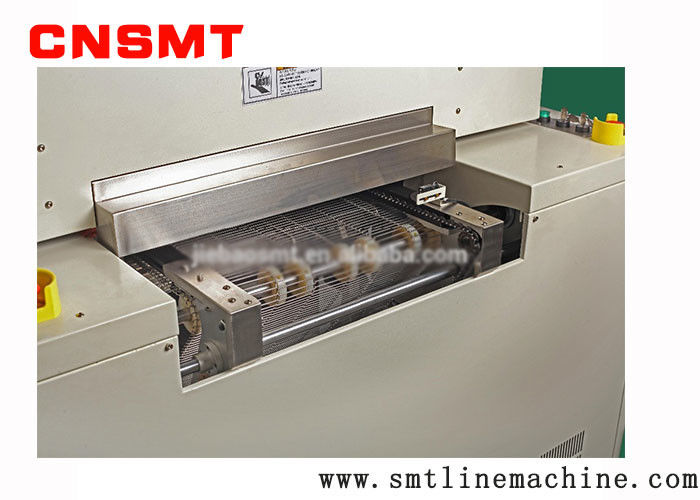

    4. Device is equipped with mesh belt, transport smoothly, no shaking and no deformation, which ensure smooth PCB transport. Synchronous guide transmission mechanism and automatic SMT machine online connection ensure that guide adjustable wide precision and high service life.

    5. Automatic control lubrication system and automatic lubrication transmission chain.

    6.All heating zone control by computer PID(upper temperature zone and lower temperature zone implementation independent temperature control, that means it can divide temperature area heat, in order to reduce starting power)

    7. Net/chain transmission by computer to carry out the whole closed loop control, which can meet different kinds of PCB production at the same time.

    8. With fault sound and light alarm function.

    9. With leakage protector, ensure that the operating personnel and control system security.

    10.The builtin UPS and automatic delay shutdown system guarantee return welder in power or overheat do not damaged PCB and the machine.







    Business Scope:

    1.Buy and sells SMT pick and place machines(YAMAHA JUKI FUJI,SAMSUNG,PANASONIC,PHILIPS,SIEMENS,ASSEMBLON,Mirae, SONY,...
    2.SMT Full-auto printer&semi-auto printer
    3.SMT reflow oven& wave solder machine
    4.SMT loader and unloader
    5.SMT conveyor
    6.AOI, SPI
    7.SMT peripheral equipment.
    8.Insert machine
    9.Machine spare parts such as feeders nozzles
    10.Full line solution service
