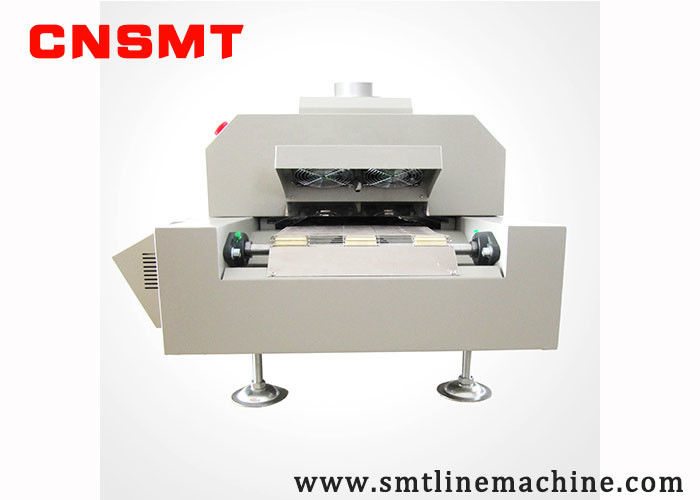

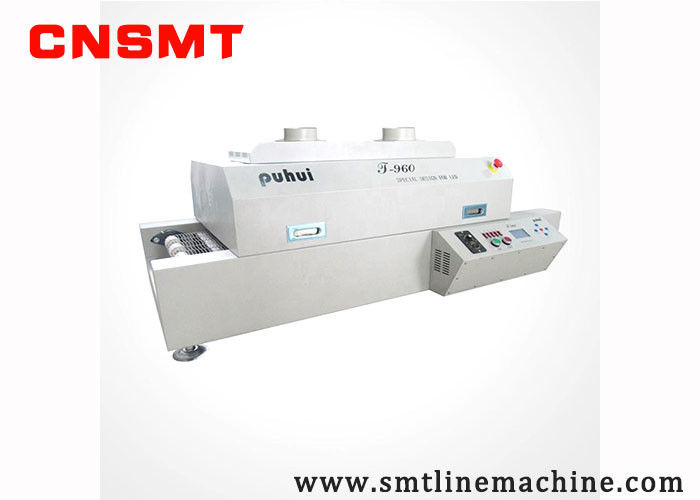

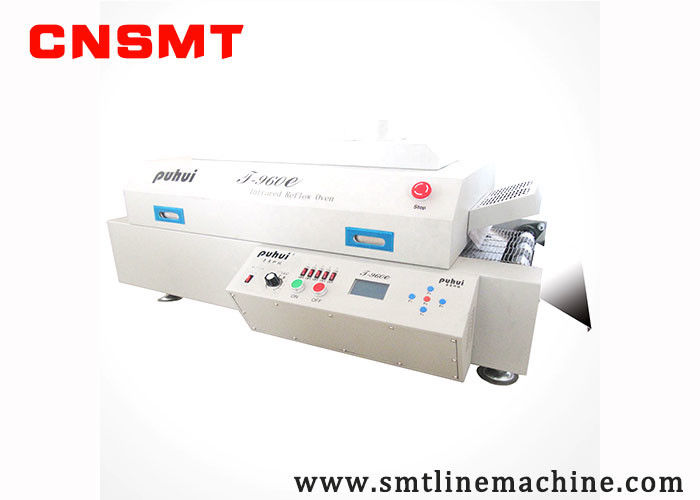

T960W T960 Bga Table Top Reflow Oven New Light Source Channel 300*960mm Platform

T960W T960 Bga Table Top Reflow Oven New Light Source Channel 300*960mm Platform

    • T960W T960 Bga Table Top Reflow Oven New Light Source Channel 300*960mm Platform
    • T960W T960 Bga Table Top Reflow Oven New Light Source Channel 300*960mm Platform
    • T960W T960 Bga Table Top Reflow Oven New Light Source Channel 300*960mm Platform
  • T960W T960 Bga Table Top Reflow Oven New Light Source Channel 300*960mm Platform

    Product Details:

    Place of Origin: China
    Brand Name: CNSMT
    Certification: CE
    Model Number: T960W t960

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: Woodenbox
    Delivery Time: 5-7 work days
    Payment Terms: T/T, Western Union
    Supply Ability: 10pcs/day
    Contact Now
    Detailed Product Description
    Platform Size: 300*960mm Dimensions: 150X910X65CM
    Voltage:: 110V/220V Weight: 130kg
    Lead Time: 1-2days Application: Smt REFLOW OVEN

    CNSMT factory T960W t960 bga reflow oven desktop small factory use New Light Source channel smt Reflow Solder

    CNSMT factory T960W t960 bga reflow oven desktop small factory use New Light Source channel smt Reflow Solder



    Specification:

    1. This machine selects Infrared and hot air heating technology controlling,equipped with special

    designed wind wheel, so the speed is stable and the temperature is uniform, especially suits for

    uninterrupted soldering the LED and BGA components.


    2. This machine is equipped with the crawler-type conveyor and 5 temperature zoneheating systems.

    Each temperature zone uses independent PID controlling and up-down heating type,can make the inside temperature more accurate and well-proportioned.

    Takes about 15 minutes can let it heat up to the working temperature from the room temperature.


    3. Intelligent temperature curve heating type, oversized capacity curve selection. The machine has

    8 temperature curves can satisfy various welding technological requirements.


    4. By using programmable technology, presetting the temperature curve memory storage function, can

    complete the whole welding process automatically .


    5. Adopts the thermocouple temperature measurement and adds the compensation circuit,

    makes the temperature measurement more accurate, the curve more perfect.


    6. Using PID intelligent temperature control technology, makes the temperature control more accurate.

    Adopts the imported large current solid-state relays can effectively avoid the IC or circuit boards being damaged due to the rapid or uninterrupted warming up. Which makes the whole welding process more scientific .
