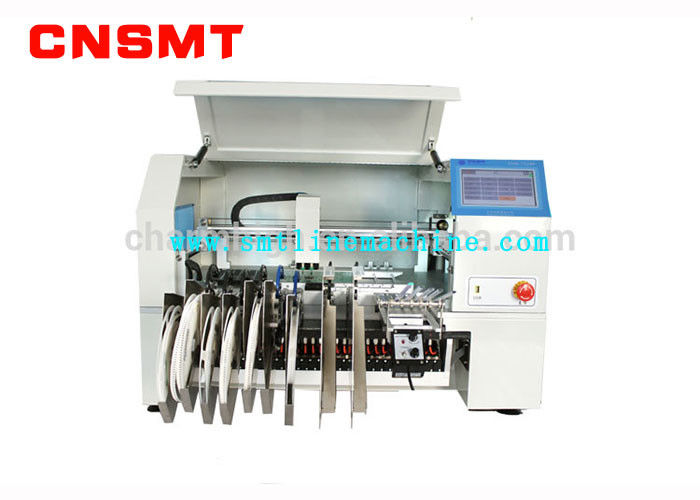

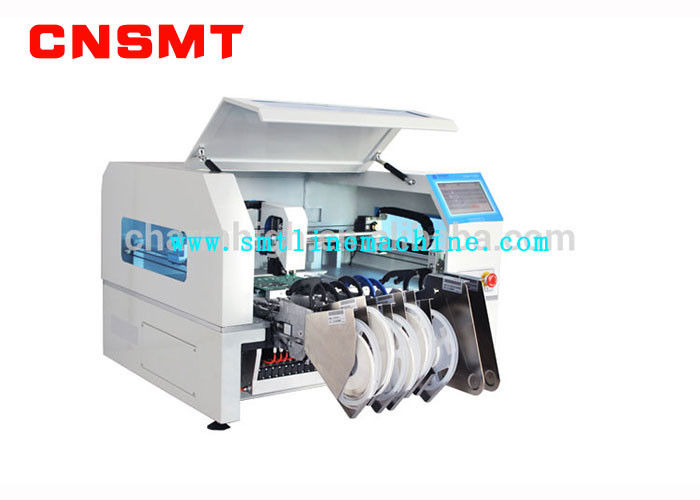

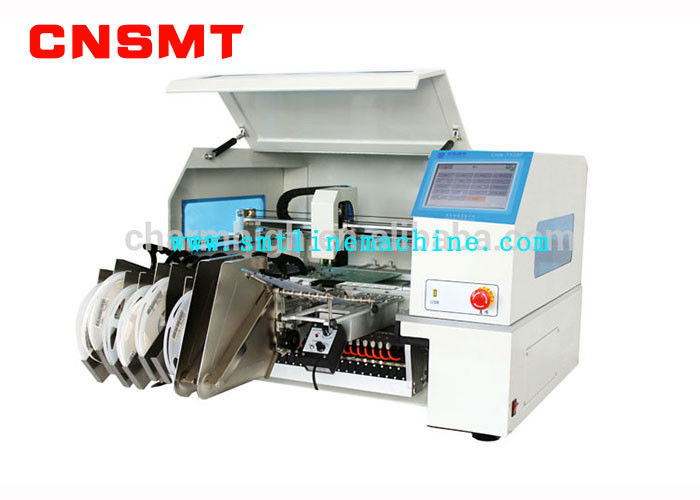

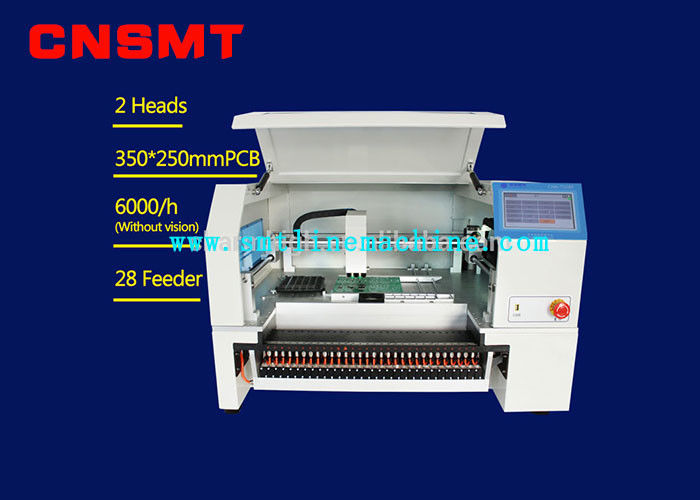

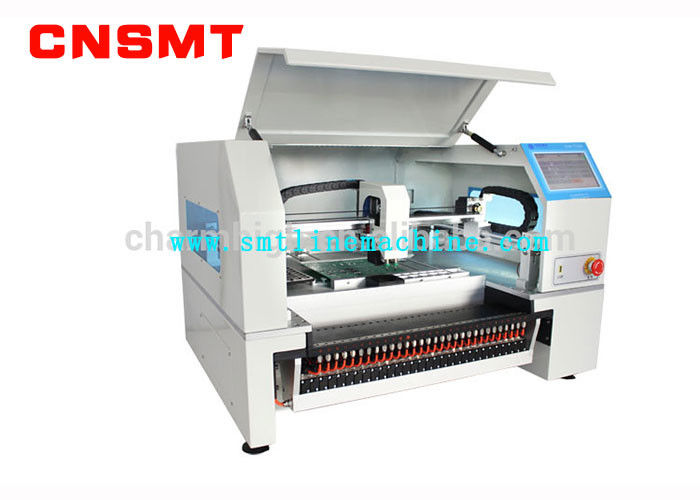

2 Heads Small Table Top Pick And Place Machine Smd Chip Shooter Cnsmt-T528P

2 Heads Small Table Top Pick And Place Machine Smd Chip Shooter Cnsmt-T528P

    • 2 Heads Small Table Top Pick And Place Machine Smd Chip Shooter Cnsmt-T528P
    • 2 Heads Small Table Top Pick And Place Machine Smd Chip Shooter Cnsmt-T528P
    • 2 Heads Small Table Top Pick And Place Machine Smd Chip Shooter Cnsmt-T528P
    • 2 Heads Small Table Top Pick And Place Machine Smd Chip Shooter Cnsmt-T528P
    • 2 Heads Small Table Top Pick And Place Machine Smd Chip Shooter Cnsmt-T528P
  • 2 Heads Small Table Top Pick And Place Machine Smd Chip Shooter Cnsmt-T528P

    Product Details:

    Place of Origin: China
    Brand Name: CNSMT
    Certification: CE
    Model Number: Cnsmt-T528P

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: Woodenbox
    Delivery Time: 5-7 work days
    Payment Terms: T/T, Western Union
    Supply Ability: 10pcs/day
    Contact Now
    Detailed Product Description
    Product Name: SMT Pick And Place Machine Dimension(L*W*H):: 890mm(L)*680mm(W)*500mm(H)
    Power(W):: 250W Weight: 95kg
    Lead Time: 1-2days Application: Smt Pick And Place Machine

    Cnsmt-T528P 2 Heads small Desktop SMT pick and place machine smd chip shooter factory price low cost

    Cnsmt-T528P 2 Heads small Desktop SMT pick and place machine smd chip shooter factory price low cost



    Specification:

    Description:

    This CHMT528P is an updated model from CHMT530P which has 28 feeders!

    The operation system is industry level embedded Linux system, the main board of machine was researched by ourself, which is more relaible than windows system, and life time is much longer. CHMT528P using 502---507 different kinds of Juki nozzles, suitable for 0402,0603,0805-5050, SOP,QFN,LQFP,Diode,Transistor,BGA...etc, which can meet more customers' demand.



    Charmhigh CHM-T528P Technical Parameters



    Parameters
    Model CHMT528P
    XYZ Axis travel 510mm(X)*450mm(Y)*15mm(Z)
    PCB max size 350mm(L)*250mm(W)
    Support components 0402-5050, SOP, QFN,BGA etc.
    Mounting speed

    Without vision:6500cph

    With Vision:4500cph

    Precision ±0.002mm
    Placement head 2heads
    Feeding system

    l Support max 28pcs 8mm Pneumatic feeder (other options: 12,16,24mm,vibration feeder)

    11pcs general IC stack

    Support IC tray

    Vision detection Double camera (up & down)
    Motor control

    XY Axis stepper motor with encoder closed-loop control

    Flexible S deceleration

    Z Axis reset detection

    Components leakage detection Vacuum and visual detection
    Main board High-reliability industry motherboard
    Touch Screen 7 inches industry screen
    Operation system Embedded Linux system
    External air source 0.5MPa
    Power supply AC220V 50Hz / AC110V 60Hz
    Demension 900mm(L)*680mm(W)*500mm(H)
    Power 250W
    Net weight 95Kg
