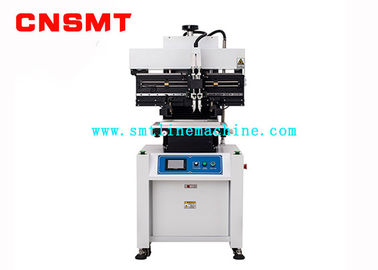

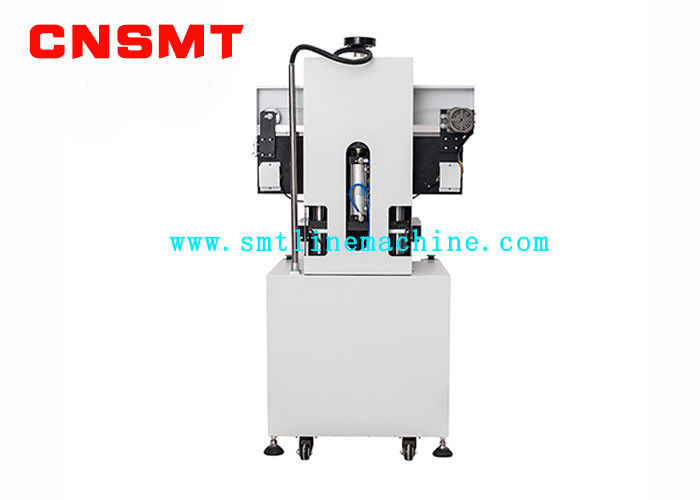

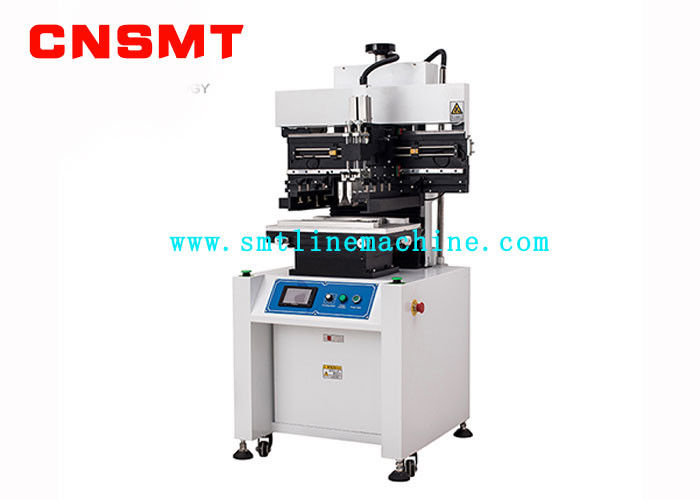

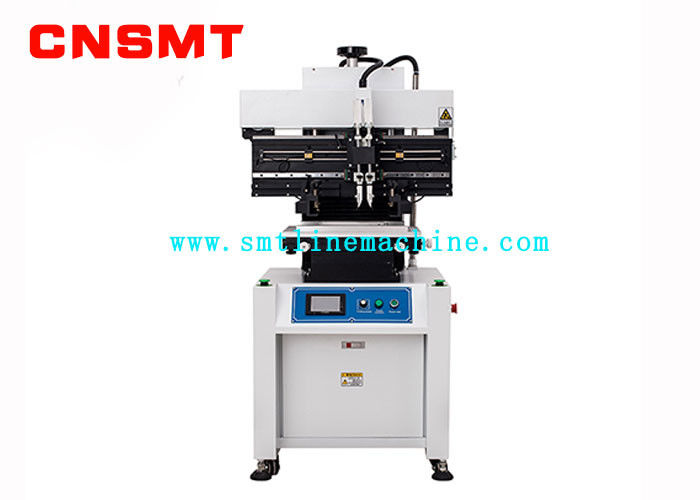

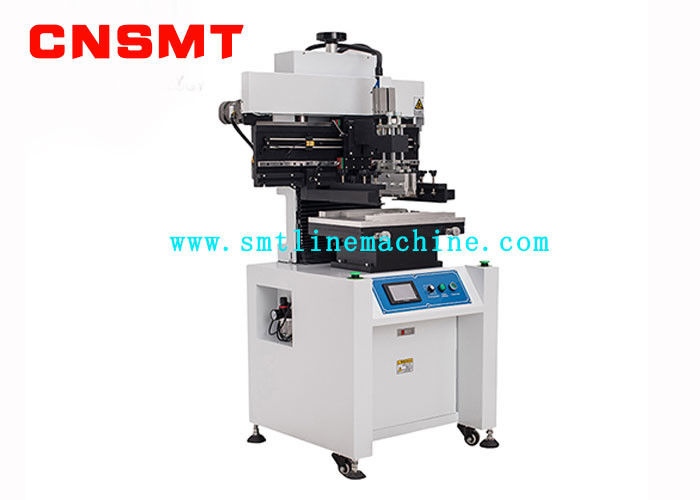

High Precision Semi Automatic PCB Solder Paste Printing Machine PCB Printer CNSMT-S400

High Precision Semi Automatic PCB Solder Paste Printing Machine PCB Printer CNSMT-S400

    • High Precision Semi Automatic PCB Solder Paste Printing Machine PCB Printer CNSMT-S400
    • High Precision Semi Automatic PCB Solder Paste Printing Machine PCB Printer CNSMT-S400
    • High Precision Semi Automatic PCB Solder Paste Printing Machine PCB Printer CNSMT-S400
    • High Precision Semi Automatic PCB Solder Paste Printing Machine PCB Printer CNSMT-S400
  • High Precision Semi Automatic PCB Solder Paste Printing Machine PCB Printer CNSMT-S400

    Product Details:

    Place of Origin: China
    Brand Name: CNSMT
    Certification: CE
    Model Number: Semi-automatic PCB Solder Paste Printing Machine

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: Woodenbox
    Delivery Time: 5-7 work days
    Payment Terms: T/T, Western Union
    Supply Ability: 10pcs/day
    Contact Now
    Detailed Product Description
    Power Supply: AC220V 50Hz / AC110V 60Hz Dimensions: 900x900x1680mm (L X W X H)
    PCB Dimension: 300 X 400mm Weight: 355kg
    Lead Time: 1-2days Application: Smt Printer

    CNSMT-S300 smt Semi-automatic Screen Printer SMT Solder Paste Printers cheap price 300mm pcb printing machine

    CNSMT-S300 smt Semi-automatic Screen Printer SMT Solder Paste Printers cheap price 300mm pcb printing machine

    Specification:

    Description Semi-automatic Screen Printer SMT Solder Paste Printers
    Base Board size 400 x 300 mm
    Printing Platform Area 420 x 320 mm
    PCB Fixed System Shape / Stopper Pin
    Frame Size 520 x 420
    Adjusting For Table Front/Back ±10mm ,
    R/L ±10mm
    Printing Accuracy ±0.02mm
    Repeating Accuracy ±0.02mm
    PCB Thickness 0.2-2.0mm
    Air Source 4-6kg/cm2
    Power Supply AC220V 50Hz
    Dimension 900x900x1680mm(L`W`H)
    Net Weight 388Kg


    The performance of this product is improving.And we are sorry for no offerring more information if it is improved.,please make the object as the standard


    We also supply the below products:

    Features:





    l Apply to Korea rolling high-speed guide-rail and scraper, which derived by frequency conversion variable speeds motor, in order to make sure printing precision.



    l Scraper can slide back and forth to choose printing position.



    l Honeycomb board, magnetic thimble which can move arbitrary.



    l The platform is more applicable to double sided board, it has extremely high flexibility.



    l Panasonic Programmable PLC and human-computer interface screen, easy to operate and convenience man-machine interaction.



    l Emergency alarm of clean steel mesh is convenient for scrubbing steel mesh in time, which can make sure quality of printing.



    l Angle, pressure, stroke of scraper can be adjusted, steel scraper and rubber scraper can also fit.



    l Floated scraper system make printing faster, scraper can float up or down freely and self-regulation into horizontal position with steel mesh.



    l With 4 work patterns: Automatic (apply to the machine attendance),Semi-automatic (normal operation) semi-automatic pause in the middle (check the PCB and stencil when printing), manual operation (debugging)



    l Can make to order.

    LED production line : solder paste mixer--semi-automatic solder stencil printer--conveyor--Pick and place machine-- conveyor--reflow oven--AOI

    Specifications:





    Model cnsmt-s400 cnsmt-s500 cnsmt-s1200
    Dimensions



    850*670*1550(mm)

    1005*670*1550(mm) 1650*670*1550(mm)
    Platform Size 320*400(mm) 320*600(mm) 320*1300(mm)
    PCB Size 300*400(mm) 300*500(mm) 300*1250(mm)
    Template Size 550*680(mm) 550*835(mm) 550*1480(mm)
    Printing Speed 0~8000(mm)/Min
    PCB Thickness 0~100(mm)
    PCB Tuning range Front/Side + 10mm
    Power supply 1PAC220V 50/60HZ
    Platform height 880(mm)
    Repeatability +/-0.01mm
    Positioning mode Outside/Reference hole
    Weight Approx.270Kg Approx.290Kg Approx.380Kg

    Packaging & Shipping

    Packaging details:VACUUM&WOODENBOX
    Delivery time:Within 1~3 working days
    Shipment:
    1. We ship to world wide
    2. Most orders ship within 1~7days after payment
    3. Item shipped from china mainland using airmail by EMS, UPS, DHL, TNT or Hong Kong post, we accept the customer’s shipping request
    4.100%T/T before shipment OR 30%T/TADVANCE,Banlance 70% before shipment, after we shipped the goods, we will email you the shipping information

    5.WE sell and buy used equipmentS long-term

    Service:

    1. SMT FULL LINE SOLUTION
    2. SMT PRINTER,PICK AND PLACE MACHINE,REFLOW OVEN,CONVEYOR,AOI,SPI,LOADER AND UNLOADER SUPPLIER
    3. AI INSERT MACHINE, SMT PERIPHERY EQUIPMENT SUPPLIER
    4. BUY AND SELL USED EQUIPMENT
    5. Manufacuture of SMT FEEDERS AND NOZZLES
    6. WE HAVE PROFESSIONAL ENGINEER TEAM


    Company Information:

    Shenzhen SMTLINE Technology Co., Ltd. was established in June 2005

    1.registered capital of 6 million yuan and more than 60 employees.

    2.The company's core personnel of the professional R&D team have 15 years of automated R&D and manufacturing experience.

    3.Our company has developed and mass-produced refow oven and wave welding machine at the end of 2010. The machine is the first in the country.

    4.The sales volume of products reached more than 200 units in half a year.
    5.Our philosophy: integrity, strength first, wholeheartedly for the customer.

    6.Our company adhering to the customer first, service-oriented business philosophy,
    benign competition, will continue to work hard to learn, so that more customers to use the quality and cheap SMT china high-end equipment, for customers to save labor costs, factory costs.
