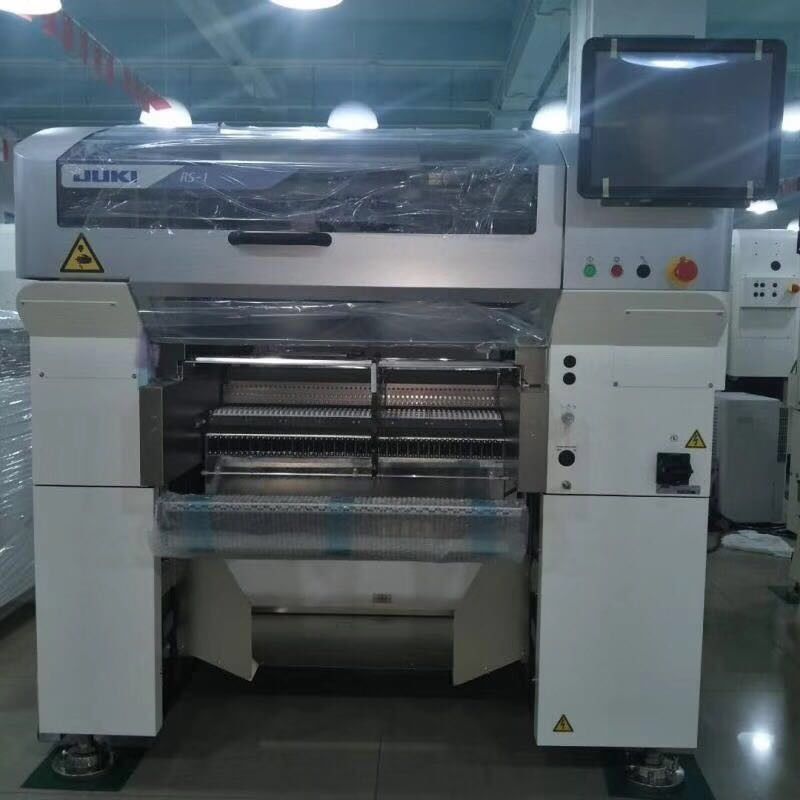

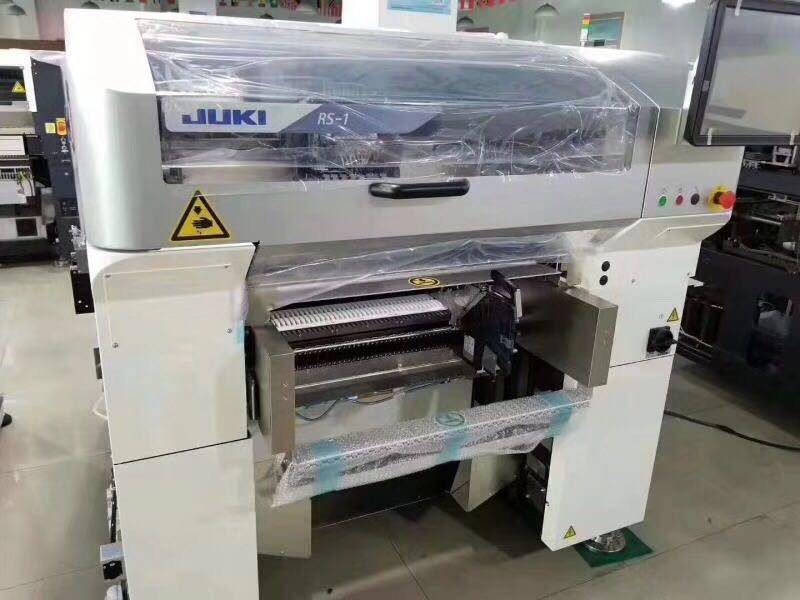

SMT Pick And Place Equipment JUKI RS-1 Single / Double Side Feeder Plate Electric Feeder

SMT Pick And Place Equipment JUKI RS-1 Single / Double Side Feeder Plate Electric Feeder

    • SMT Pick And Place Equipment JUKI RS-1 Single / Double Side Feeder Plate Electric Feeder
    • SMT Pick And Place Equipment JUKI RS-1 Single / Double Side Feeder Plate Electric Feeder
  • SMT Pick And Place Equipment JUKI RS-1 Single / Double Side Feeder Plate Electric Feeder

    Product Details:

    Place of Origin: JAPAN
    Brand Name: juki
    Certification: CE
    Model Number: rs-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: woodenbox
    Delivery Time: 5-7 work days
    Payment Terms: T/T, Paypal, Westernunion are all allowed
    Supply Ability: 10pcs/day
    Contact Now
    Detailed Product Description
    Product Name: Juki Rs-1 MODEL: Rs-1
    Weight:: 1583KG Delivery Time:: IN Stork
    Packing:: Vacuume Woodenbox CONdition: Working
    Price: Negotiation PAYMENT TERM: T/T, Paypal, Westernunion Are All Allowed

    CNSMT SUPPLY JUKI RS-1 HIGH SPEED PICK AND Place machine singla and double side feeder plate electric feeder new

    CNSMT SUPPLY JUKI RS-1 HIGH SPEED PICK AND Place machine singla and double side feeder plate electric feeder new


    Optimal loading speed of 42,000 CPH* for high speed loading

    The stress on a wide range of components:

    The component size is 0201*~□74mm, and can also correspond to 50×150mm. The maximum height of the component can correspond to 25mm.

    Optimal line balance for maximum throughput

    According to the corresponding component, the newly mounted patch head unit whose position can be changed is identified

    JUKI's unique laser and visual recognition technology enables high-speed, high-precision parts identification

    RS-1
    Send a sample Standard Import and export 150mm extension Import and export 250mm extension
    Substrate size Minimum 50×50㎜
    maximum 1Buffering 650×370㎜(One splint)
    950×370㎜(Double splint) 1,100×370㎜(Double splint) 1,200×370㎜(Double splint)
    3Buffering 360×370㎜ 500×370㎜ 600×370㎜
    Component height 25㎜
    Component size Laser recognition 0201*1~□74㎜/50×150mm
    Component placement speed Optimal conditions 42,000CPH
    Component placement accuracy ±0.035mm(Cpk≧1)
    Component mounting type Up to 112 types (when the RF feeder is used)



    • RS-1+RS-1(WITH Multicamera and ic box) 65000+83500usd without feeders new machine
    • 2070+2080(with ic box) 40150+55000usd without feeders used machine



    Business Scope:

    1.Buy and sells SMT pick and place machines(YAMAHA JUKI FUJI,SAMSUNG,PANASONIC,PHILIPS,SIEMENS,ASSEMBLON,Mirae, SONY,...
    2.SMT Full-auto printer&semi-auto printer
    3.SMT reflow oven& wave solder machine
    4.SMT loader and unloader
    5.SMT conveyor
    6.AOI, SPI
    7.SMT peripheral equipment.
    8.Insert machine
    9.Machine spare parts such as feeders nozzles
    10.Full line solution service
