|Place of Origin:||JAPAN|
|Model Number:||CM402 602|
|Minimum Order Quantity:||1|
|Delivery Time:||5-7 work days|
|Payment Terms:||T/T, Paypal, Westernunion are all allowed|
|Product Name:||CM402 Pick And Place Machine||MODEL:||CM602|
|Weight::||1400KG||Delivery Time::||IN Stork|
|Price:||Negotiation||PAYMENT TERM:||T/T, Paypal, Westernunion Are All Allowed|

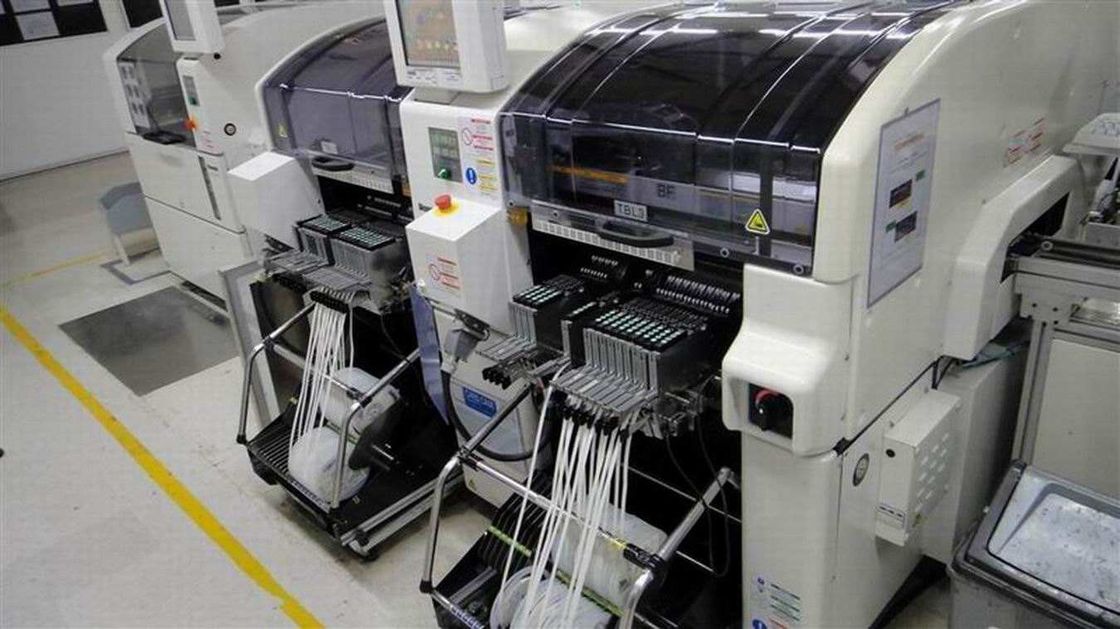

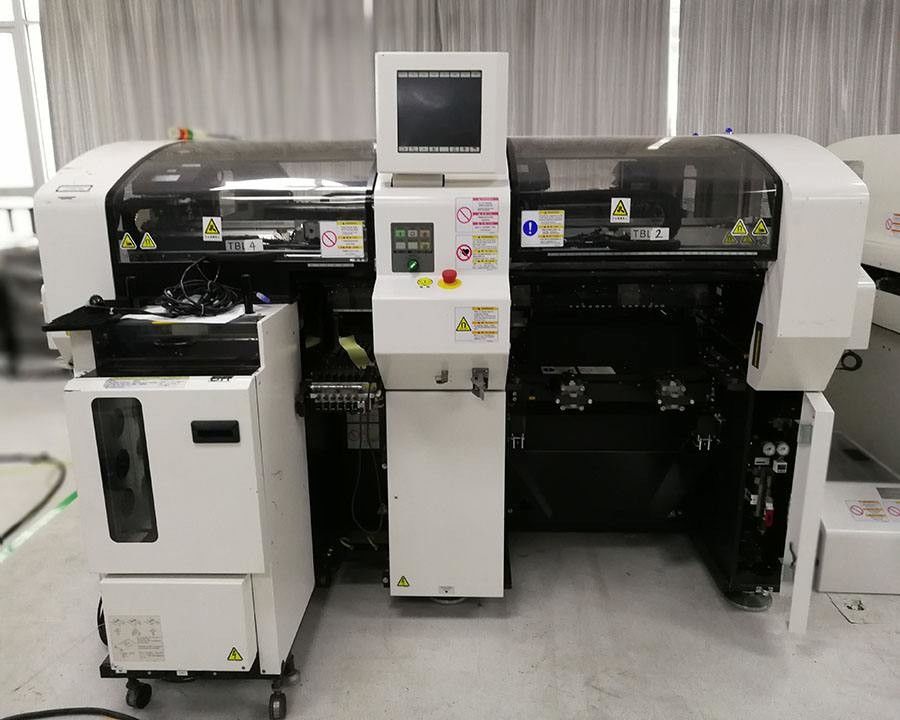

Panasonic chip mounter CM602, CM602-L high speed module mounter
Our company supplies Panasonic high-speed module placement machine CM602-L, the following are the parameters of cm602 placement machine:
Panasonic high-speed placement machine cm602 parameters:
Model name CM602-L
Substrate size L 50 mm × W 50 mm ~ L 510 mm × W 460 mm
High-speed placement head 12 nozzles
Mounting speed 100 000 cph (0.036 s / chip)
Mounting accuracy ±40 μm/chip (Cpk ≧1) www.smt11.cn
Component Size 0402 Chip *5 to L 12 mm × W 12 mm × T 6.5 mm
Universal head LS 8 nozzle
Mounting speed 75 000 cph (0.048 s / chip)
Mounting accuracy ±40 μm/chip, ±35 μm/QFP ≧ □24 mm, ±50 μm/QFP <□24 mm (Cpk ≧1)
Component Size 0402 Chip *5～ L 32 mm × W 32 mm × T 8.5 mm *8
When using the Ver.5 option for general use 0402 chip *5～ L 100 mm × W 50 mm × T 15 mm *6
Multi-function placement head 3 nozzles
Mounting speed 20 000 cph (0.18 s/QFP)
Mounting accuracy ±35 μm/QFP(Cpk ≧1)
Component size 0603 chip ~ L 100 mm × W 90 mm × T 25 mm *7
Substrate replacement time m0.9 s (when the substrate length is 240 mm or less)
Power supply Three-phase AC 200, 220, 380, 400, 420, 480 V, 4.0 kVA
Air pressure source *1m0.49 MPa, 170 L / min (A.N.R.)
Equipment size mW 2 350 mm × D 2 290 mm *2 × H 1 430 mm *3
Weight *4m3 400 kg
Panasonic Mounter CM602, CM602-L High Speed Module Mounter Features:
1, XY axis is equipped with * new linear motor, providing * CM602 strong power.
2, the new design and material of the moving arm beam and the head not only reduce the weight, but also greatly strengthen the rigidity, making it more stable during the movement process.
3, X Y-axis motion uses a high-speed low-vibration design.
4. The linear motor adopts a new cooling design scheme, which can cool more quickly and effectively than other equipment using linear motor under high-speed motion, ensuring the operation efficiency of the motor and improving its life.
5, 7 kinds of racks can correspond to all taping packaging components from 8mm to 104mm, which is the equipment with wide versatility* applicability* in the industry. And according to customer needs, a new 8mm single rack was added.
6, the operation of the rack exchange, the overall exchange trolley design, the overall exchange support pin design, etc. can greatly improve the equipment operating efficiency and model switching time.
7, while improving production efficiency, the software, hardware, and operation have followed the mature design of CM402, ensuring compatibility with CM402.
1.Buy and sells SMT pick and place machines(YAMAHA JUKI FUJI,SAMSUNG,PANASONIC,PHILIPS,SIEMENS,ASSEMBLON,Mirae, SONY,...
2.SMT Full-auto printer&semi-auto printer
3.SMT reflow oven& wave solder machine
4.SMT loader and unloader
7.SMT peripheral equipment.
9.Machine spare parts such as feeders nozzles
10.Full line solution service
