YAMAHA Mounter Feida Corrector YV00II YV100X YV100XG YV100XE YG200 YG200L Calibration Instrument
YAMAHA Mounter Feida Corrector YV00II YV100X YV100XG YV100XE YG200 YG200L Calibration Instrument
We also supply the below products:
| YAMAHA Feida Corrector |

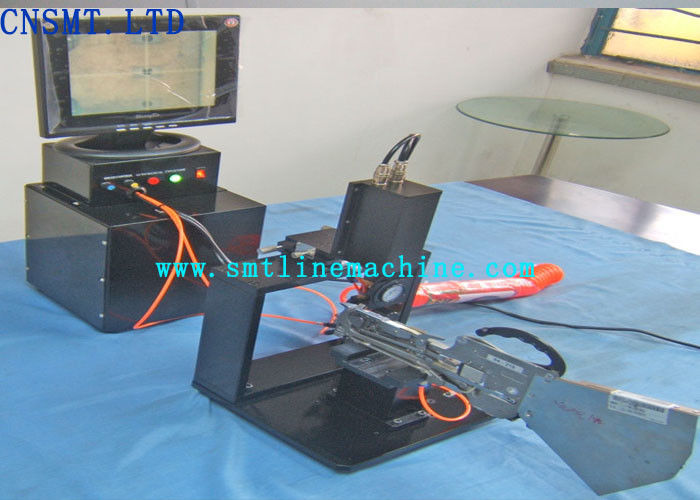

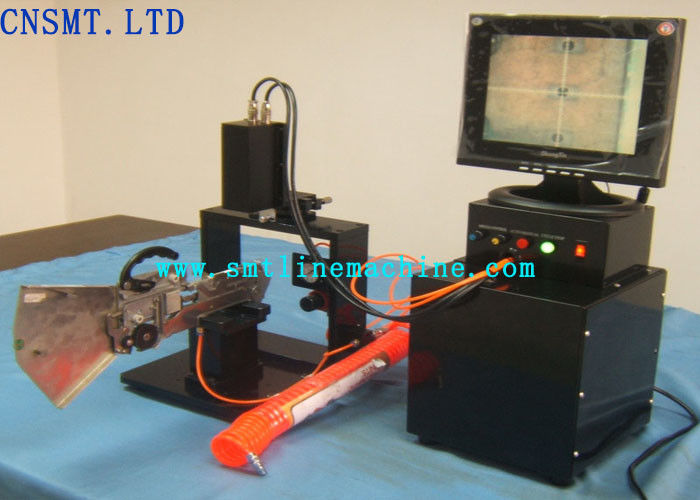

| This product is used to confirm the position of the belt feeder (Feida) (adsorption position) and special equipment for adjustment. This product adopts CCD camera and high magnification magnifier to observe the feeding situation, the up and down movement of the ejector pin and the wear of the lever through the display, and reduce the problem of throwing caused by the poor frame, which is very helpful for improving the placement yield. |
| feature of product: |
| * Simple operation, simple and compact appearance. |
| * With microcomputer control, the feeding speed can be automatically adjusted, and it can be divided into manual and automatic feeding modes. |
| * The pneumatic circuit solenoid valve adopts Japanese SMC or Xiaojinjing to ensure the service life of the control part. |
| * The transmission of X, Y and H directions adopts precision screw drive. The guide mechanism adopts two sets of precision imported linear bearings and precision guide columns in each direction to ensure the precision and reliability of transmission and guidance. |
| * CCD camera with 50mm magnifying glass, with LED lighting to make the picture clearer. |
| * Pneumatically hit the lever to simulate machine movement. |
| * Observe the dynamic movement of gears. |
| * Equipped with a standard calibration rule to adjust the suction center. |
| * The overall body is chrome-plated, beautiful and durable. |
| FUJI Feida Corrector |
| ◎ product characteristics |
| 1. Adopt precision lens with internal cross frame and stable conventional display or thin LCD display; |
| 2. The X, Y and Z axes are all adjusted by precision sliders; |
| 3. Dynamically simulate the feeding condition of the rack and measure and adjust it offline; |
| 4, the air pressure control system, can be manually controlled or automatically controlled for reclaiming operations; |
| 5. Applicable to all sizes of the same machine, special models, specifications can be developed and customized. |
$NK-3N NYLON CLIP 2
2 90990-11J003 SCREW, PAN HEAD W/W 13
3 90K41-001450 LABEL,CAUTION 1
4 91312-04006 BOLT HEX,SOCKET HEAD 4
5 91312-04008 BOLT HEX,SOCKET HEAD 14
6 91312-05008 BOLT HEX,SOCKET HEAD 4
7 91312-05010 BOLT HEX,SOCKET HEAD 22
8 91312-06012 BOLT HEX,SOCKET HEAD 4
9 KKE-M111M-00 PLATE,CLAMP 1
10 KLW-M111L-00 BRKT.,POWER SUPPLY 1 1
11 KLW-M1125-00 PLATE,25 1
12 KLW-M1126-00 PLATE,26 1
13 KLW-M1128-00 PLATE,CONV. 1
14 KLW-M112A-00 BASE,BOARD 1
15 KLW-M112B-00 COVER,BOARD 1
16 KLW-M112C-00 PLATE,BAT. 1
17 KLW-M112D-00 HOLDER,BOARD 2
18 KLW-M112E-00 PLATE,BASE 1
19 KLW-M1133-00 STAY, TRANSFORMER 1
20 KLW-M1134-00 BRKT.,TRANS. 1 1
21 KLW-M1136-00 PLATE,SIDE INNER 1 2
22 KLW-M1137-00 PLATE,SIDE INNER 2 1
23 KLW-M1138-00 BRKT.,FAN INSIDE 4
24 KLW-M1139-00 BRKT.,SIDE PLATE 3
25 KLW-M113D-00 PLATE,BASE 5 2
26 KLW-M113F-00 BRKT.,CONNECTOR 2
27 KLW-M113M-00 PLATE,FAN 2
28 KLW-M113N-00 BRKT,DUCT 4
29 KLW-M1336-00 BRKT.,REAR LEFT 1
30 KLW-M1337-00 BRKT.,REAR RIGHT 1
31 KLW-M1338-00 BRKT.,MAIN SWITCH 1
32 KLW-M1339-00 BRKT.,FL 1 YSM20-2
33 KLW-M1339-10 BRKT.,FL 1 YSM20-1
34 KLW-M133A-00 BRKT.,GATE IN OUT 2
35 97602-05310 SCREW PAN HEAD W/WASHER 50
36 98702-03006 SCREW,FLAT HEAD
YAMAHA Feida Corrector
This product is used to confirm the position of the belt feeder (Feida) (adsorption position) and special equipment for adjustment. This product adopts CCD camera and high magnification magnifier to observe the feeding situation, the up and down movement of the ejector pin and the wear of the lever through the display, and reduce the problem of throwing caused by the poor frame, which is very helpful for improving the placement yield.
feature of product:
* Simple operation, simple and compact appearance.
* With microcomputer control, the feeding speed can be automatically adjusted, and it can be divided into manual and automatic feeding modes.
* The pneumatic circuit solenoid valve adopts Japanese SMC or Xiaojinjing to ensure the service life of the control part.
* The transmission of X, Y and H directions adopts precision screw drive. The guide mechanism adopts two sets of precision imported linear bearings and precision guide columns in each direction to ensure the precision and reliability of transmission and guidance.
* CCD camera with 50mm magnifying glass, with LED lighting to make the picture clearer.
* Pneumatically hit the lever to simulate machine movement.
* Observe the dynamic movement of gears.
* Equipped with a standard calibration rule to adjust the suction center.
* The overall body is chrome-plated, beautiful and durable.
FUJI Feida Corrector
◎ product characteristics
1. Adopt precision lens with internal cross frame and stable conventional display or thin LCD display;
2. The X, Y and Z axes are all adjusted by precision sliders;
3. Dynamically simulate the feeding condition of the rack and measure and adjust it offline;
4, the air pressure control system, can be manually controlled or automatically controlled for reclaiming operations;
5. Applicable to all sizes of the same machine, special models, specifications can be developed and customized.
