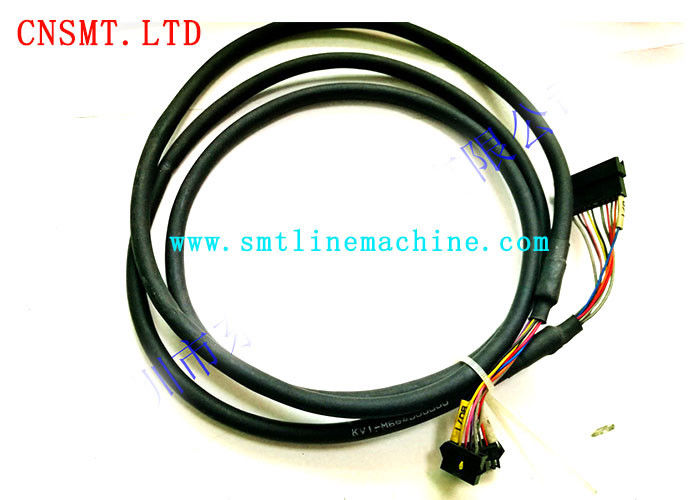

KV1-M6640-000 YAMAHA Yamaha placement machine in the old card line
KV1-M6640-000 YAMAHA Yamaha placement machine in the old card line
Specification:
| K87-M6510-00X BODY ASSY 1 |
| 2 K87-M116H-00X THRUST WASHER 1 |
| 3 |
| 4 K87-M532D-00X COIL SPRING 1 |
| 5 K87-M5520-00X SUB LEVER ASSY 1 |
| 6 K87-M11B9-00X CIRCLIP E 4 |
| 7 K87-M532J-00X METAL 1 |
| 8 K87-M532K-00X CLAMP ELEMENT 1 |
| 9 K87-M532L-00X RING 1 |
| 10 K87-M532M-00X U NUT 1 |
| 11 K87- |
| 12 K87-M531F-00X PUSH PIN 1 |
| 13 K87-M531B-00X PUSH PIN 1 |
| 14 K87-M1112-00X KNOCK PIN (FRONT) 1 |
| 15 K87-M531G-00X BACK STOPPER 1 |
| 16 K87-M531A-00X BACK STOPPER AXIS 1 |
| 17 K87-M5319-00X BACK STPPER SPRING 1 |
| 18 K87-M531E-00X STOPPER PIN 1 |
| 19 K87-M551G-00X LEVER ASSY 1 |
| 20 K87-M751L-00X LEVER METAL ASSY 1 |
| 21 K87-M2316-00X THRUST WASHER 2 |
| 22 K87-M2317-00X COVER 1 |
| 23 K87-M5515-00X MAIN ARM 1 |
| 24 K87-M531C-00X HOOK 2 |
| 25 K87-M531D-00X SPRING 1 |
| 26 K87- |
| 27 |
| 28 K87-M23B7-00X SCREW,TRUSS HEAD + |
| K87-M2313-00X KNOCK PIN (REAR) 1 |
| 2 K87-M5330-00X CLAMP LEVER ASSY 1 |
| 3 K87-M2335-00X CLAMP ROLLER 1 |
| 4 K87-M11D7-00X CIRCLIP E 1 |
| 5 K87-M533A-00X LEVER AXIS 3 |
| 6 K87-M7545-00X GUIDE AXIS 1 |
| 7 K87-M7540-00X TAPE GUIDE ASSY 1 |
| 8 K87-M534A-00X LOCK LEVER ASSY 1 |
| 9 K87-M534F-00X SCREW,TRUSS HEAD + 2 |
| 10 K87-M23BG-00X ELBO CONNECTOR 1 |
| 11 K87-M75BA-00X HOS |
| K87-M7590-00X WIND ROLLER ASSY 1 |
| 2 K87-M7591-00X WIND PLATE ASSY 1 |
| 3 K87-M559A-00X DRIVE GEAR ASSY 1 |
| 4 K87-M559G-00X SUB LEVER ASSY 1 |
| 5 K87-M559D-00X INDENTATION LEVER ASSY 1 |
| 6 K87-M7594-00X REEL SHAFT ASSY 1 |
| 7 K87-M539M-00X SPRING 1 |
| 8 K87-M2397-00X PLANE WASHER 1 |
| 9 K87-M119J-00X THRUST WASHER 3 |
| 10 K87-M559K-00X INDEX GEAR 1 |
| 11 K87-M239Y-00X PLANE WASHER 1 |
| 12 K87-M559U-00X REEL PLATE 1 |
| 13 K87-M559L-00X SUB ARM 1 |
| 14 K87-M759T-00X METAL 1 |
| 15 K87-M23BJ-00X SCREW, FLAT HEAD + 5 |
| 16 K87-M55BN-00X SCREW, FLAT HEAD + 2 |
| 17 K87-M55BJ-00X SCREW,TRUSS HEAD 1 |
| 18 K87-M55BH-00X SCREW,TRUSS HEAD 1 |
| 19 K87-M55BP-00X THUMB SCREW 2 |
| 20 K87-M11B9-00X CIRCLIP E 1 |
| 21 K87-M23B6-00X SCREW,FLAT HEAD + |
| KV1-M9131-00X BASE, CONVEYOR 1 |
| 1-1 KV1-M9131-01X BASE,CONVEYOR X2 1999/12/22 M9Y0085 |
| 2 KV1-M9132-00X BALL, SCREW 2 |
| 3 KG7-M9119-00X BEARING 3 6200ZZ |
| 4 KV1-M9136-00X COVER, BEARING 3 |
| 5 KH2-M9105-10X PULLEY MOTOR 4 3GTP30 |
| 6 KV1-M9137-00X WASHER 1 M4 13D 2T |
| 7 90K50-4W072W AC SERVO MOTOR 1 42 60W |
| 7-1 90K55-4W072W AC SERVO MOTOR X3 M900116 |
| 7-2 90K55-4W074W AC SERVO MOTOR X3 M9Y0070 |
| 7-3 90K55-4W076W AC SERVO MOTOR X1 M020085 |
| 8 KV1-M9138-00X BRAKET, MOTOR W 1 |
| 9 KG7-M9113-01X PULLEY 3 1 |
| 10 KV1-M913K-00X BELT, W AXIS 1 |
| 11 KV1-M913A-00X BRAKET, TENSION 1 |
| 12 K94-M9315-00X BEARING 2 F608ZZ |
| 13 KV1-M9149-00X COLLAR, BEARING 1 |
| 14 KG7-M913B-00X SPLINE 1 |
| 15 KV1-M913C-00X PULLEY, MOTOR 1 |
| 16 KV1-M9135-00X PULLY 1, SPLINE 1 |
| 17 KG2-M9108-10X COLLAR, CONVEYOR 1 |
| 17-1 KG2-M9108-11X COLLAR,CONVEYOR X1 2000/08/01 M070221 |
| 18 KV1-M913E-00X BELT 1 315-3GT-9 |
| 19 KV1-M4886-00X MOTOR ASSY 6-1 1 |
| 20 KV1-M913F-00X BRAKET, MOTOR CONVEYOR 1 |
| 21 KH2-M9121-00X BEARING 3 SFB38-10 |
| 22 KV1-M914A-00X SHAFT SPCON 2 |
| 23 KV1-M914B-00X BRAKET, SPCON 2 |
| 24 SSU4 SPEED COTROLLER 12 |
| 25 KV1-M914C-00X STOPPER, DAMPER 4 |
| 25-1 KV1-M914C-01X STOPPER,DAMPER 4 X4 1999/11/11 M9X0028 |
| 26 KV1-M914D-00X SPACER, DAMPER 2 |
| 27 91317-03010 BOLT HEX. SOCKET HEAD 10 |
| 28 95304-03600 NUT, HEXGON 4 |
| 29 98907-04008 SCREW BINDING HEAD 6 |
| 30 91317-04006 BOLT, HEX SOCKET HEAD 6 |
| 31 91317-04008 BOLT, HEX SOCKET HEAD 5 |
| 32 91317-04012 BOLT, HEX SOCKET HEAD 1 |
| 33 91317-04016 BOLT, HEX SOCKET HEAD 16 |
| 34 91317-04030 BOLT, HEX SOCKET HEAD 2 |
| 35 91317-04006 SET, SCREW 5 |
| 36 91317-05010 BOLT, HEX SOCKET HEAD 6 |
| 37 91317-05020 BOLT, HEX SOCKET HEAD 1 |
| 38 91317-05050 BOLT, HEX SOCKET HEAD 8 |
| 39 91317-05200 WASHER, PLAIN 7 |
| 40 91317-06010 BOLT, HEX SOCKET HEAD 4 |
| 41 91317-06016 BOLT, HEX SOCKET HEAD 8 |
| 42 KV1-M914G-00X NUT, SQUARE 4 |
| 43 KG7-M9110-01X COLLAR, W 3 |
| 44 KV1-M913M-00X GUIDE, HARNESS 1 |
| 44-1 KV1-M913M-01X GUIDE HARNESS |
