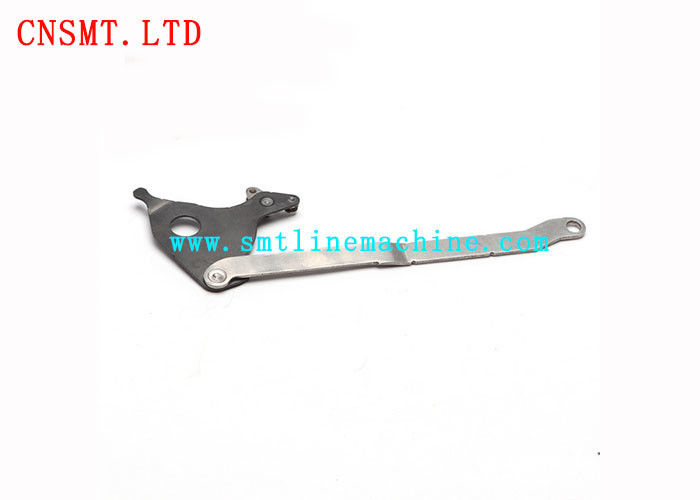

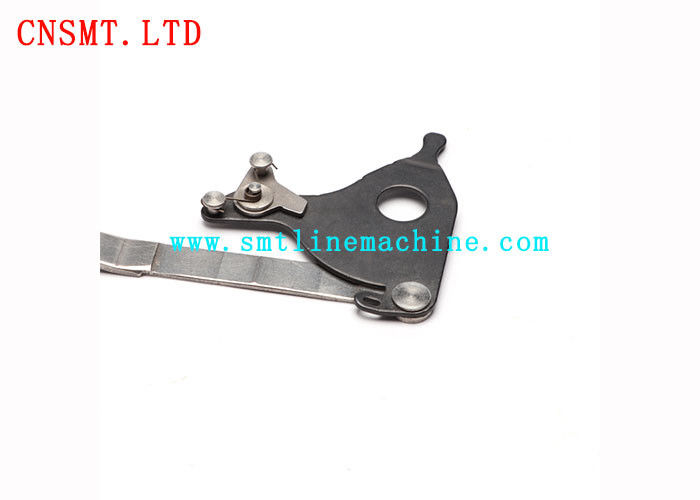

KJW-M122A-00 FT FS8MM FEEDER accessories 8x4 universal large connecting rode from cnsmt company
KJW-M122A-00 FT FS8MM FEEDER accessories 8x4 universal large connecting rode from cnsmt company
Specification:
| KJW-M1110-00 BODY ASSY 1 |
| KJW-M112A-00 RACKING LEVER ASSY 1 |
| KJK-M1120-00 SPROCKET ASSY 1 |
| 1 BODY 1 |
| 2 KJK-M1112-01 KNOCK PIN (FRONT) 1 |
| 3 KNOCK PIN (REAR) 1 |
| 4 METAL 1 |
| 5 RIVET 3 |
| 6 SPROCKET 1 |
| 7 RATCHET 1 |
| 8 RACKING LEVER 1 |
| 9 KJK-M111E-00 SPRING 1 |
| 10 RACKING POLE 1 |
| 11 POLE AXIS 1 |
| 12 MAIN ARM 1 |
| 13 MAIN ARM AXIS 1 |
| 14 KJW-M112P-00 RATCHET AXIS 1 |
| 15 KJK-M112D-00 COIL SPRING 1 |
| 16 SPRING HOOK PIN 2 |
| 17 KJK-M111H-00 BACK STOPPER 1 |
| 18 KJK-M111A-00 SPRING 1 |
| 19 KJK-M111B-00 BACK STOPPER AXIS 1 |
| 20 KJK-M111F-00 STOPPER PIN 1 |
| 21 KJK-M114V-00 GUIDE PLATE 1 1 |
| 22 K87-M111G-00 PUSH PIN 2 |
| 23 K87-M111T-00 SCREW, SET 1 |
| 24 K87-M111X-00 SCREW, SET 2 |
| 25 K87-M111R-000 SCREW, SET 5 |
| 26 K87-M11BB-00 SCREW, FLAT HEAD + 1 |
| 27 CIRCULAR RIVET 2 |
| 28 STRAIGHT PIN 1 |
| 29 DU BUSH 1 |
| 30 |
| SERIAL NO. STICKER (FT-82) 1 |
| SERIAL NO. STICKER (FS2-82-7") 1 |
|
SERIAL NO. STICKER (FS2-82-15")
|
| KGY-M1101-00X BASE 1 |
| 2 KGA-M1180-00X LEVELING BOLT ASSY 4 |
| 3 KGY-M1111-00X PLATE,BRACKET 1 |
| 4 KGY-M1117-00X BASE,TRANS 1 |
| 5 KW3-M1134-01X BRKT. 1 |
| 6 KGY-M1135-00X BRACKET,TRANS 1 |
| 7 KGY-M1137-01X BRACKET,E/L 1 |
| 8 KGY-M1119-00X BASE PLATE SIDE 1 1 |
| 9 KGY-M1120-00X BASE PLATE SIDE 2 1 |
| 10 KGY-M1121-00X BASE PLATE SIDE 3 1 |
| 11 KGY-M1122-00X BASE PLATE SIDE 4 1 |
| 12 KGY-M111D-00X PLATE,GATE IN/OUT 2 |
| 13 KGA-M4126-01X GUIDE RAIL L ASSY 1 |
| 14 KGA-M4127-01X GUIDE RAIL R ASSY 1 |
| 15 KGY-M1112-00X PLATE,BREAKER 2 1 |
| 16 KGY-M1124-00X PLATE,VALVE 1 |
| 17 KGY-M1125-01X PLATE,REG. 1 |
| 18 KGY-M1126-01X BRKT.,GAUGE 1 |
| 19 KGY-M1127-00X BRKT.,HINGE 1 |
| 20 KGY-M1128-00X BRKT.,HINGE 4 |
| 21 KGJ-M1129-00X PLATE,HINGE 5 |
| 22 KW3-M1131-00X BRKT.,REG. 1 |
| 23 KGY-M1143-00X BRKT,MAGNET 2 |
| 24 K44-M1354-00X MG.CATCH (TL-152-2) 2 |
| 25 KGY-M1123-02X BRKT,REG. 1 |
| 26 KGY-M1138-00X COVER,SHAFT 4 |
| 27 KGY-M1114-A0X I/O BORD ASSY 1 |
| 28 KGY-M1114-00X PLATE,I/O 1 |
| 29 KGY-M1115-00X COVER,I/O 1 |
| 30 KGY-M1116-00X COVER 1 |
| 31 90563-04J700 SPACER BOLT 5 |
| 32 98902-04010 SCREW BINDING HEAD 10 |
| 33 KG7-M8512-00X JOINT 1 |
| 34 KG7-M8513-00X JOINT 1 |
| 35 KG7-M8501-00X AIR FILTER 1 |
| 36 KG7-M8502-00X MIST FILTER 1 |
| 37 KG7-M8503-00X MODULE ADAPTER 1 |
| 38 KG7-M8504-00X REGULATOR (R300-03) 1 |
| 39 KGY-M8596-00X PRESSURE GAUGE 1 |
| 40 KH5-M8501-00X EXHAUST VALVE 1 |
| 41 KH5-M8531-00X FITTING 1 1 |
| 42 KM0-M8582-00X VALVE : 040M12AJ1-7 1 |
| 43 KG2-M8582-40X VALVE 1 |
| 44 KV7-M1125-00X PLATE,CLAMP 4 |
| 45 KV8-M9212-00X VALVE 2 |
| 46 $UK8 JOINT 4 |
| 47 $KM-23 MUFFLER 2 |
| 48 $KM-11 MUFFLER 1 |
| 49 90990-12J004 SCREW BIN.HEAD W/W 20 |
| 50 91312-04008 BOLT,HEX. S/HEAD 5 |
| 51 91312-06020 BOLT HEX.SOCKET HEAD 2 |
| 52 91317-03030 BOLT HEX.SOCKET HEAD 4 |
| 53 91317-04006 BOLT HEX.SOCKET HEAD 16 |
| 54 91317-05010 BOLT HEX.SOCKET HEAD 32 |
| 55 91317-05014 BOLT HEX.SOCKET HEAD 16 |
| 56 91317-06016 BOLT HEX.SOCKET HEAD 2 |
| 57 92907-04600 WASHER PLAIN 8 |
| 58 92907-05600 WASHER PLAIN 16 |
| 59 97604-04308 SCREW,PAN HEAD W/W 2 |
| 60 98902-03010 SCREW BINDING HEAD 4 |
| 61 98902-04010 SCREW BINDING HEAD 8 |
| 62 98902-05012 SCREW BINDING HEAD 14 |
| 63 $SL8-01 JOINT 1 |
| 64 $SL12-03 JOINT 2 |
| 65 $SL10-03 JOINT 1 |
| 66 $UEDW10-8 JOINT 1 |
| 67 $UP10 JOINT 1 |
| 68 $UP8 JOINT 3 |
| 69 $TSH4-M5M JOINT 1 |
| 70 $TL4-02 JOINT 1 |
| 71 $SL8-02 JOINT 2 |
| 72 $SL4-01 JOINT 1 |
| 73 KGA-M11B0-00X AIR TAG 1 |
| 74 KG7-M8501-40X FILTER ELEMENT 1 |
| 75 KG7-M8502-40X MIST FILTER ELEMENT |
