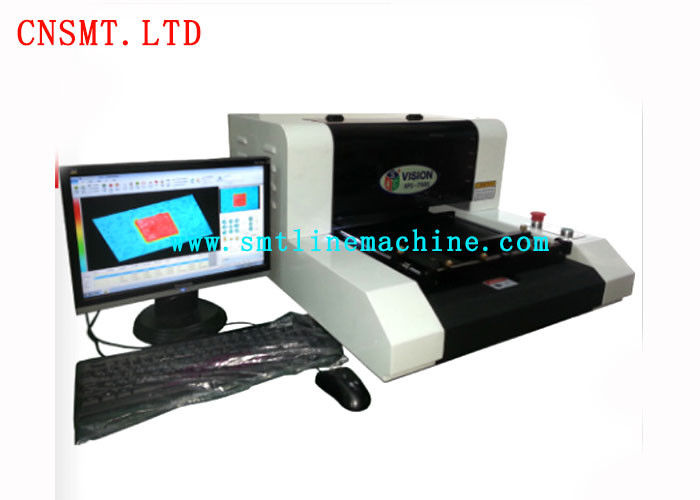

ASC SPI-7500 SMT Line Machine 3D Solder Paste Thickness Tester Gauge Triaxial

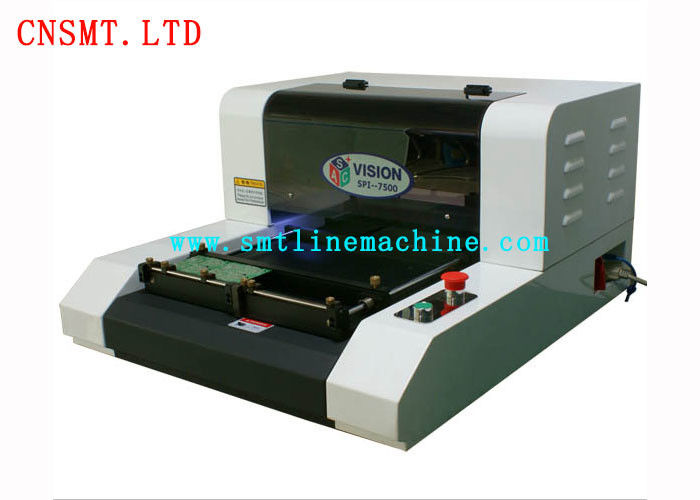

ASC SPI-7500 SMT Line Machine 3D Solder Paste Thickness Tester Gauge Triaxial

    • ASC SPI-7500 SMT Line Machine 3D Solder Paste Thickness Tester Gauge Triaxial
    • ASC SPI-7500 SMT Line Machine 3D Solder Paste Thickness Tester Gauge Triaxial
  • ASC SPI-7500 SMT Line Machine 3D Solder Paste Thickness Tester Gauge Triaxial

    Product Details:

    Place of Origin: CHINA
    Brand Name: SMT
    Certification: CE
    Model Number: ASC SPI-7500 3D

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: vacuum woodenbox
    Delivery Time: 5-7 work days
    Payment Terms: T/T, Western Union
    Supply Ability: 100pcs/day
    Contact Now
    Detailed Product Description
    Brand:: SMT MODEL: ASC SPI-7500 3D
    Weight:: 85kg Lead Time:: 1-2days
    Packing:: BOX PAYMENT TERM: T/T, Paypal, Westernunion Are All Allowed
    Delivery Term: Exw Fob Cif... SIZE: L*W*H(700 Mm *800 Mm *400 Mm)

    ASC SPI-7500 3D Solder Paste Thickness Tester Thickness Gauge Triaxial USA Inspection where to buy desktop spi

    ASC SPI-7500 3D Solder Paste Thickness Tester Thickness Gauge Triaxial USA Inspection where to buy desktop spi


    Specification:



    First, product features

    Quick programming, friendly programming interface

    Multiple measurement methods

    True one-button measurement

    Eight-way motion button, one-click focus

    Adjustable scanning pitch

    Solder paste 3D simulation function

    Powerful SPC function

    MARK deviation automatically corrected

    One-click back to the center of the screen



    Second, product use

    Automatic Recognition Target This fully automatic 3D solder paste thickness tester can obtain 3D data of each point through the automatic XY stage moving/Z-axis image autofocus and laser scanning solder paste. It can also be used to measure the entire pad solder paste. The average thickness allows the solder paste printing process to be well controlled.



    Third, product features

    1. Programmable measurement of several areas, automatic focusing at different test points, overcoming the error caused by plate deformation

    2. Automatically find the inspection position and correct the offset through the PCB MARK;

    3, measurement method: fully automatic, automatic movement manual measurement, manual movement manual measurement

    4, solder paste 3D simulation map, reproduce the true appearance of solder paste;
    5, using 3-axis automatic movement, focusing, automatic compensation to correct the warpage deformation of the substrate, to obtain accurate solder paste height;

    6, high-speed high-resolution camera, high precision, powerful SPC data statistical analysis;

    7, SIGMA automatic judgment function, so that your operators have the ability to determine the quality of the solder paste printing process in real time;

    8, automatically generate CP, CPK, X-BAR, R-CHART, SIGMA column chart, trend chart, control chart, etc.;

    9, 2D auxiliary measurement, distance between two points, area size, etc.;

    10, the measurement result data list is automatically saved, generate SPC report



    Fourth, product parameters

    Product model: SPI-7500

    Applications: Solder paste. Red plastic. BGA.FPC.CSP

    Measurement items: thickness, area, volume, 3D shape, plane distance

    Measuring principle: laser 3 angular function method measurement

    Software language: Chinese / English

    Lighting source: white highlight LED

    Measuring light source: red laser module

    X/Y moving range: standard 350mm*340mm (larger moving size can be customized)

    Measurement method: automatic full-screen measurement. Frame selection automatic measurement. Frame selection manual measurement

    Field of view: 12mm*15mm

    Camera pixel: 3 million / field of view

    The highest resolution: 0.1um

    Scanning pitch: 5um /10 um /15 um /20 um

    Repeated measurement accuracy: height less than 1um, area <1%, volume <1%

    Magnification: 50X

    Maximum measurable height: 5 mm

    Maximum measurement speed: 250Profiles/s

    3D mode: Rendering. Face. Line. Point 3 different 3D simulations, scalable. Rotate

    Operating system: Windows7

    Computer system: dual-core P4, 2G memory, 20-inch LCD

    Power supply: 220V 50/60Hz

    Maximum power consumption: 500W

    Weight: about 85KG

    Dimensions: L*W*H (700 mm *800 mm *400 mm)

    KGT-M2211-00X FRAME X AXIS 2
    2 KGT-M2213-S0X PLATE X AXIS SET 2
    3 KV7-M2663-00X NYLOCK BOLT (M5X16) 16
    4 KGT-M2220-00X COUPLING, X-AXIS 4
    5 KGT-M2231-00X SPACER, NUT 4
    6 KV7-M2233-00X SPACER R2, NUT 4
    7 KGT-M2236-A0X BOX, DUCT R 2
    8 KGT-M2236-B0X BOX, DUCT L 2
    9 KGT-M2237-00X PLATE, BOX 4
    10 KGT-M2239-00X BRACKET 1 8
    11 KGT-M2241-00X HOLDER, MOTOR X AXIS 4
    12 KGT-M2242-00X HOLDER, BRG X AXIS 4
    13 90933-01J000 BEARING 8
    14 99009-10400 CIRCLIP 4
    15 KGT-M2261-L0X HOLDER, HEAD L 2
    16 KGT-M2261-R0X HOLDER, HEAD R 2
    17 KGT-M2271-00X SCREW BALL X AXIS 4
    18 KV7-M2604-00X SUPPORT UNIT 4
    19 90K63-711403 AC SERVO MOTOR 4
    20 KGT-M220D-00X SENSOR, ORG (L=350) 4
    21 KGT-M220E-00X SENSOR, OT (L=350) 4
    22 KGT-M2276-S0X X-AXIS GUIDE SET 4
    23 KGT-M2267-00X CABLE, DUCT 4
    24 KGT-M221A-A0X COVER, DUCT ASSY 4
    25 KGT-M220A-30X TAPE X-AXIS 6
    26 KGT-M2282-00X DOG, ORG 4
    27 KGT-M2283-L0X DOG, 2ND LIMIT L 4
    28 KGT-M2283-R0X DOG, 2ND LIMIT R 4
    29 KGT-M226B-00X PLATE 4
    30 KGT-M2291-00X BRACKET, SENSOR F-L 1
    31 KGT-M2291-10X BRACKET, SENSOR F-R 1
    32 KGT-M2291-20X BRACKET, SENSOR R-L 1
    33 KGT-M2291-30X BRACKET, SENSOR R-R 1
    34 KGT-M2248-00X DAMPER 1 8
    35 KGT-M2249-A0X DAMPER 100 ASSY 4
    36 KGA-M2649-00X NYLOCK BOLT (M2.6X10) 40
    37 KM0-M2251-00X NYLOCK BOLT : M8X22L 28
    38 KGT-M2252-00X STOPPER 2
    39 KGT-M2252-10X STOPPER 2
    40 KV7-M2253-00X WASHER, SPRING 28
    41 KGT-M226A-00X COVER CABLE 2
    42 KGT-M2268-00X BRACKET 1, TAPE 4
    43 KGT-M2269-00X BRACKET 2, TAPE 4
    44 KGT-M220A-00X TAPE , X DUCT 4
    45 KGT-M220B-00X TAPE 2, X DUCT 4
    46 KGT-M220C-00X TAPE 3, X DUCT 4
    47 KGT-M2266-10X PLATE, NUT 8
    48 KGT-M2240-00X SLEEVE, BRG. 4
    49 97604-04308 SCREW PAN HEAD W/W 24
    50 91317-04006 BOLT HEX. SOCKET HEAD 8
    51 91317-04008 BOLT HEX. SOCKET HEAD 44
    52 91317-04010 BOLT HEX. SOCKET HEAD 84
    53 KV7-M2251-00X NYLOCK BOLT (M4X16) 88
    54 91317-05014 BOLT HEX. SOCKET HEAD 16
    55 91317-05016 BOLT HEX. SOCKET HEAD 16
    56 91317-05035 BOLT HEX. SOCKET HEAD 16
    57 91317-06012 BOLT HEX. SOCKET HEAD 32
    58 91317-06018 BOLT HEX. SOCKET HEAD 26
    59 98907-03005 SCREW BINDING HEAD 16
    60 99480-06014 PIN, PARALLEL 8
    61 91317-05018 BOLT HEX. SOCKET HEAD
