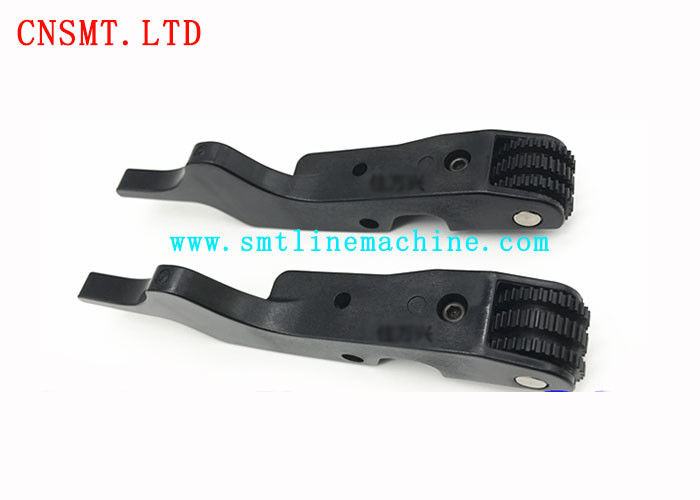

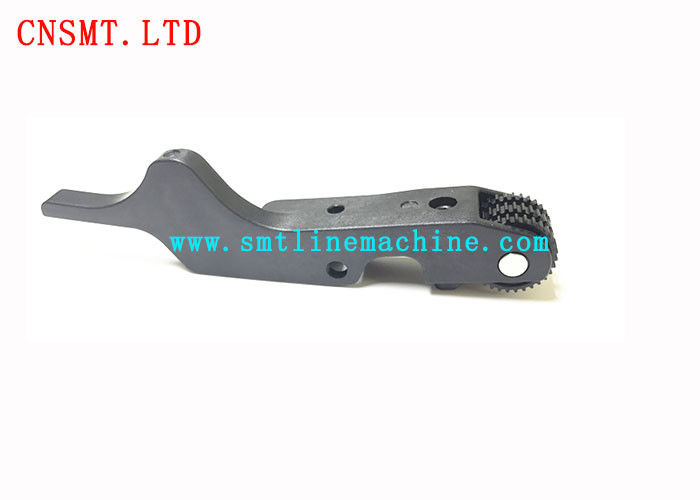

KHJ-MC26V-00 P/O LEVER ASSY Electric Feida Accessories Pressure Bar with Gear
KHJ-MC26V-00 P/O LEVER ASSY Electric Feida Accessories Pressure Bar with Gear
Specification:
| One-way wheel DRIVE ROLLER UNIT |
| KJW-M1191-00 YAMAHA FT FS FSII FS2 8MM Feida one-way wheel DRIVE ROLLER |
| KJW-M1192-00 YAMAHA FS one-way wheel 8MM one-way gear |
| K87-M1199-A0X FV old Feida accessories 8MM Feida wheels, small one-way wheel |
| KJK-M119F-01 KJK-M119F-00 Yamaha FS FSII FS2 Feida one-way wheel bearing |
| KW1-M1192-00X YAMAHA CL8284 one-way bearing without wheel INDENTATION LVR |
| KW1-M1191-00X DRIVE ROLLER UNIT YAMAHA 8MM one-way wheel set |
| KW1-M1191-001 00X CL8X2 CL8X4MM one-way gear YAMAHA feeder one-way wheel |
| KW1-M2291-00X CL12 Feida large one-way wheel Reel pulley large gear DRIVE ROLLER UNIT |
| KW1-M2292-00X CL12MM Feida large gear One-way bearing Reel Pulley YAMAHA Feida accessories |
| KW1-M3291-00X CL16mm large one-way wheel Reeling wheel YAMAHA Feida accessories |
| KW1-M119L-00X Part nr 9965 000 10264 yamaha CL8MM small roll pulley |
| KW1-M119L-00X with bearing small reel pulley IDLE ROLLER ASSYYAMAHA Feida reel pulley |
| KW1-M229L-00X IDLE ROLLER ASSY CL12MM Feida small one-way gear |
| KW1-M329L-00X CL16MM Feida one-way wheel Reel wheel Gear |
| Part nr: 9965 000 02303 IDLE ROLLER ASSY CL8MM Feida single small wheel |
| KJK-M119L-00 FT FS2 8MM Feida one-way wheel Small wheel |
| KHJ-MC103-02 BLOCK,FRONT 1 |
| 2 KHJ-MC104-00 RAIL,UNDER 1 |
| 3 KHJ-MC105-00 PIN,TAIL 1 |
| 4 KHJ-MC10F-00 SCREW,FLAT HEAD 2 |
| 5 KHJ-MC53N-00 PIN,DOWEL 1 |
| 6 90990-09J008 SCREW,FLAT HEAD 2 |
| 7 KHJ-MC281-00 HANDLE 1 |
| 8 KHJ-MC182-00 TENSION,WIRE 1 1 |
| 9 KHJ-MC183-00 SPACER,TENSION 1 1 |
| 10 KHJ-MC184-00 SPACER,TENSION 2 1 |
| 11 KHJ-MC286-00 WIRE,UNCLAMP 1 |
| 12 KHJ-MC187-00 SPRING,TENSION 1 |
| 13 KHJ-MC289-00 PIN,CLAMP 1 |
| 14 KHJ-MC18A-00 SPRING,CLAMP 1 |
| 15 KHJ-MC28B-00 COVER,WIRE 1 1 |
| 16 KHJ-MC68G-00 SHAFT,HANDLE SUPPORT 1 |
| 17 KHJ-MC28H-00 CLAMP LEVER ASSY. 1 |
| 18 90990-14J001 CIRCLIP (E) 1 |
| 19 90189-05J056 NUT,HEXAGON 1 |
| 20 90440-01J030 CIRCLIP(E) 1 |
| 21 91317-03008 BOLT HEX.SOCKET HEAD 4 |
| 22 91317-05030 BOLT HEX.SOCKET HEAD 1 |
| 23 92A08-03303 SET SCREW M3X3 1 |
| 24 92A08-03305 SCREW,SET 1 |
| 25 99480-03010 PIN,PARALLEL 10 |
| 26 99480-04018 PIN,PARALLEL 1 |
| 27 99480-05014 PIN,PARALLEL 1 |
| 28 KHJ-MC10S-00 PIN,LOCATE 1 1 |
| 29 KHJ-MC10T-00 PIN,LOCATE 2 |
| KHJ-MC501-00 BODY,FEEDER 1 |
| 2 KHJ-MC502-00 COVER,FEEDER 1 |
| 3 KHJ-MC106-00 PLATE,UNDER 1 |
| 4 KHJ-MC206-00 PLATE,UNDER 1 |
| 5 KHJ-MC70C-00 SEAL,MAIN LABEL 1 |
| 6 KHJ-MC70K-003 SPACER,56A 1 |
| 7 KHJ-MC70L-003 SPACER,56B 1 |
| 8 KHJ-MC510-000 MOTOR, FEED 1 |
| 9 KHJ-MC532-00 SPROCKET 1 |
| 10 KHJ-MC534-00 GEAR,IDLE F1 1 |
| 11 KHJ-MC535-00 GEAR,IDLE F2 1 |
| 12 KHJ-MC53R-00 GEAR,IDLE F3-1 1 |
| 13 KHJ-MC53S-00 GEAR,IDLE F3-2 1 |
| 14 KHJ-MC537-00 GEAR,IDLE F4 1 |
| 15 KHJ-MC738-00 GEAR,DRIVEN 1 |
| 16 KHJ-MC13D-00 SPRING,PUSHER PLATE 3 |
| 17 KHJ-MC53E-00 BOLT HEX.S/H LOW 1 |
| 18 90990-08J021 SCREW,STAD 2 |
| 19 KHJ-MC53H-00 SHAFT,IDLE GEAR F2 1 |
| 20 KHJ-MC53J-00 SHAFT,IDLE GEAR F3 1 |
| 21 KHJ-MC53K-00 SHAFT,IDLE GEAR F4 1 |
| 22 KHJ-MC53L-00 COVER,FEED GEAR 1 |
| 23 KHJ-MC53M-00 SUB-BUSH,SPROCKET 1 |
| 24 KHJ-MC53N-00 PIN,DOWEL 1 |
| 25 KHJ-MC561-00 BOX,TOP TAPE 1 |
| 26 KHJ-MC562-00 COVER,TOP TAPE BOX 1 |
| 27 KHJ-MC165-00 MAGNET,TAIL 1 |
| 28 KHJ-MC766-00 BLOCK,P/O TOOTH 1 1 |
| 29 KHJ-MC46T-00 BOLT HEX.S/H LOW 2 |
| 30 KHJ-MC76R-003 SPACER,44C 1 |
| 31 KHJ-MC76S-003 SPACER,44D 1 |
| 32 KHJ-MC76U-00 TAIL COVER ASSY. 1 |
| 33 KHJ-MC60J-000 PIN,PARALLEL 16 |
| 34 90166-02JA03 SCREW,PAN HEAD 1 |
| 35 90115-2AJ008 BOLT HEX.SOCKET HEAD 3 |
| 36 91312-03035 BOLT,HEX.SOCKET HEAD 2 |
| 37 91312-03045 BOLT,HEX.SOCKET HEAD 5 |
| 38 91312-03055 BOLT,HEX.SOCKET HEAD 1 |
| 39 91317-03045 BOLT HEX.SOCKET HEAD 6 |
| 40 91317-03055 BOLT HEX.SOCKET HEAD 1 |
| 41 98707-03006 SCREW,FLAT HEAD 4 |
| 42 KHJ-MC76U-S0 PARTS, TAIL COVER 1 |
| 43 KHJ-MC762-S0 PARTS, BOX COVER |
| KHJ-MC70C-00 SEAL,MAIN LABEL 1 |
| 2 KHJ-MC532-00 SPROCKET 1 |
| 3 KHJ-MC53B-00 BUSH,SPROCKET 1 |
| 4 KHJ-MC53E-00 BOLT HEX.S/H LOW 1 |
| 5 KHJ-MC741-00 TAPE GUIDE ASSY. 1 |
| 5-1 KHJ-MC741-01 TAPE GUIDE ASSY. 1 (2008/5/8) OK |
| 5-2 KHJ-MC741-02 TAPE GUIDE ASSY. 1 (2009/3/2) NG |
| 6 KHJ-MC244-00 LEVER,TAPE GUIDE R 1 |
| 7 KHJ-MC745-00 LEVER,TAPE GUIDE F 1 |
| 7-1 KHJ-MC745-01 LEVER,TAPE GUIDE F 1 (2009/3/2) NG |
| 8 KHJ-MC146-00 SPRING,TAPE GUIDE R 1 |
| 8-1 KHJ-MC146-02 SPRING,TAPE GUIDE R 1 (2009/3/2) NG |
| 9 KHJ-MC247-00 SPRING,TAPE GUIDE F 1 |
| 9-1 KHJ-MC247-01 SPRING,TAPE GUIDE F 1 (2009/3/2) NG |
| 10 KHJ-MC64E-00 SHAFT,LEVER 1 |
| 11 KHJ-MC74E-00 SHAFT,LEVER 1 |
| 12 KHJ-MC74F-00 BASE,LEVER R 1 |
| 13 KHJ-MC167-00 COVER,MENBRANE 1 |
| 14 90990-09J008 SCREW,FLAT HEAD 2 |
| 15 KHJ-MC26K-00 COVER,MENBRANE 2 1 |
| 16 KHJ-MC1A5-00 DUMMY SPLICE SENS. 1 |
| 17 KHJ-MC1AA-00 SWITCH,OPERATION 1 |
| 18 90990-54J003 SCREW,PAN HEAD TAP. 2 |
| 19 92A08-03303 SET SCREW M3X3 2 |
| 20 90K41-000770 SEAL,HIGH TEMP. |
